OVERVIEW
Seal the input shaft in the assigned manual gearbox

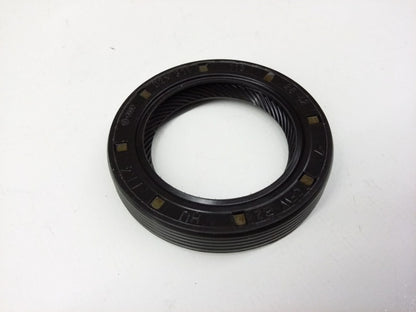

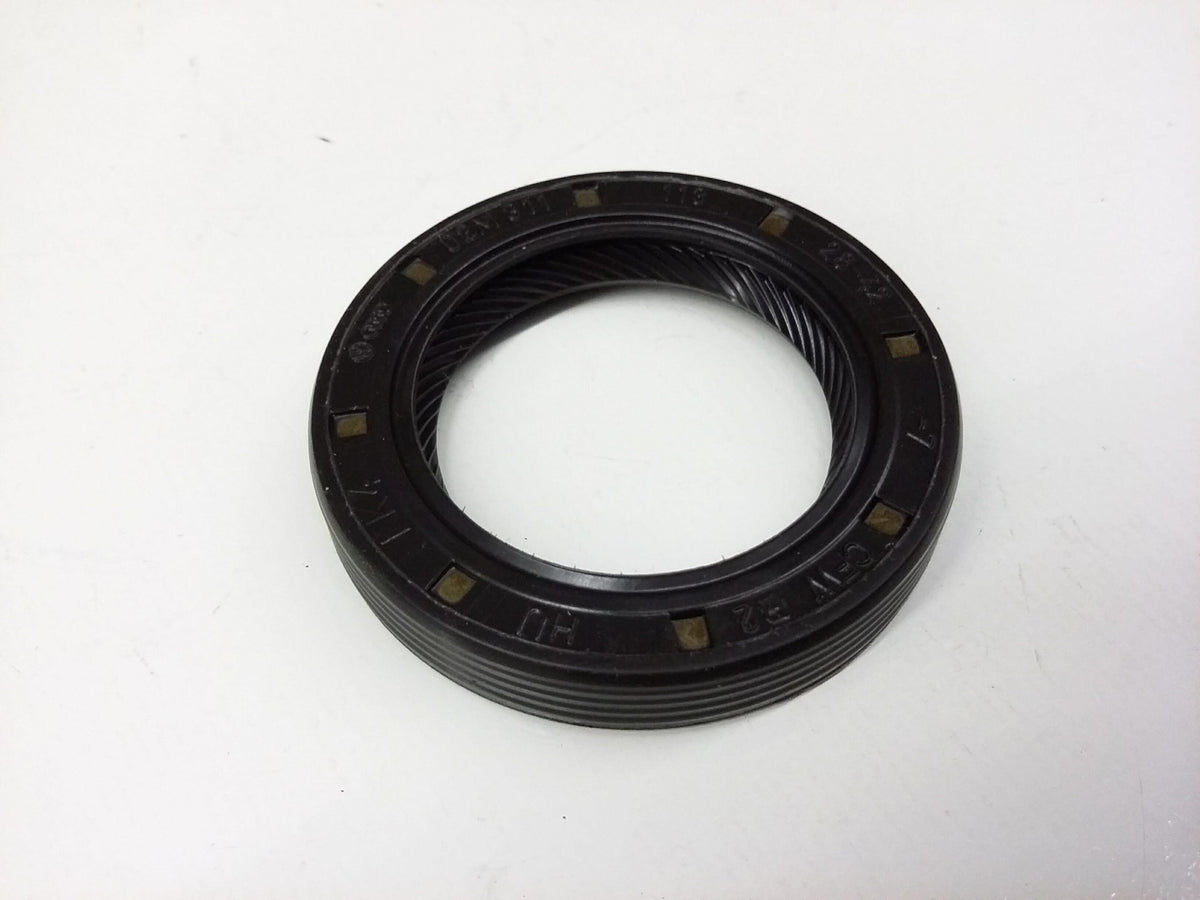

02M-311-113-A is the Genuine VW/Audi radial oil seal for the input shaft of the specified manual transmissions. It seals around the shaft where it passes through the original transmission housing.
An input-shaft seal leak can allow gearbox oil into the bellhousing area. Correct diagnosis is necessary because engine oil, gearbox oil and clutch hydraulic fluid can reach nearby areas from different sources.
Technical details
- Complete factory number: 02M-311-113-A.
- Factory specification: nominal 28.3 × 42.28 × 7 mm manual transmission input-shaft seal.
- Design: black radial shaft seal with the original sealing-lip and outer-body profile.
- Quantity supplied: one individual input-shaft seal.
One seal is supplied. Transmission, input shaft, clutch, guide sleeve, fluid and installation tools are separate. The nominal seal dimensions describe the component and are not packaged shipping dimensions.
Common reasons to replace
- Diagnosis confirms gearbox-oil leakage at the input-shaft seal.
- The original sealing lip is damaged.
- The seal is disturbed during an approved gearbox repair.
- The original seal fails the prescribed inspection.
Identify the leaking fluid and inspect the shaft sealing surface, bearing support and bellhousing. Excess shaft movement or a damaged shaft surface must be corrected. A new seal alone cannot repair a worn bearing or contaminated clutch.
Vehicle fitment
The table lists original six-speed manual applications. Confirm the gearbox identification and complete seal number. Four-wheel-drive equipment does not change the need to identify the exact manual gearbox.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen GTI 337 | 2002 | 1.8L turbocharged gasoline | Mk4 hatchback; six-speed manual | Original 02M/02Q six-speed manual input-shaft seal position only; confirm gearbox code and seal. Excludes DSG and other automatic transmissions. |
| Volkswagen GTI 20th Anniversary | 2003 | 1.8L turbocharged gasoline | Mk4 hatchback; six-speed manual | Original 02M/02Q six-speed manual input-shaft seal position only; confirm gearbox code and seal. Excludes DSG and other automatic transmissions. |
| Volkswagen R32 | 2004 | 3.2L gasoline VR6 | Mk4 4MOTION hatchback; six-speed manual | Original 02M/02Q six-speed manual input-shaft seal position only; confirm gearbox code and seal. Excludes DSG and other automatic transmissions. |
| Volkswagen Jetta GLI | 2004–2005 | 1.8L turbocharged gasoline | Mk4 sedan; six-speed manual | Original 02M/02Q six-speed manual input-shaft seal position only; confirm gearbox code and seal. Excludes DSG and other automatic transmissions. |
| Volkswagen GTI | 2006–2014 | 2.0L turbocharged gasoline | Mk5/Mk6 hatchback; six-speed manual | Original 02M/02Q six-speed manual input-shaft seal position only; confirm gearbox code and seal. Excludes DSG and other automatic transmissions. |
Installation guidance
Follow the transmission-specific removal and installation procedure. Protect the sealing lip, use the correct driver and install the seal to the prescribed orientation and depth. Apply only the lubrication required by the procedure and keep the clutch friction surfaces clean.
Restore the gearbox oil using the specified fluid and fill procedure. Complete the required clutch, gear-selection and leak checks after reassembly.
Ordering information
One Genuine VW/Audi 02M-311-113-A manual transmission input-shaft seal. Confirm the original gearbox and nominal seal dimensions before ordering. Clutch and fluid are sold separately.
