OVERVIEW
Factory internal selector assembly for first and second gear

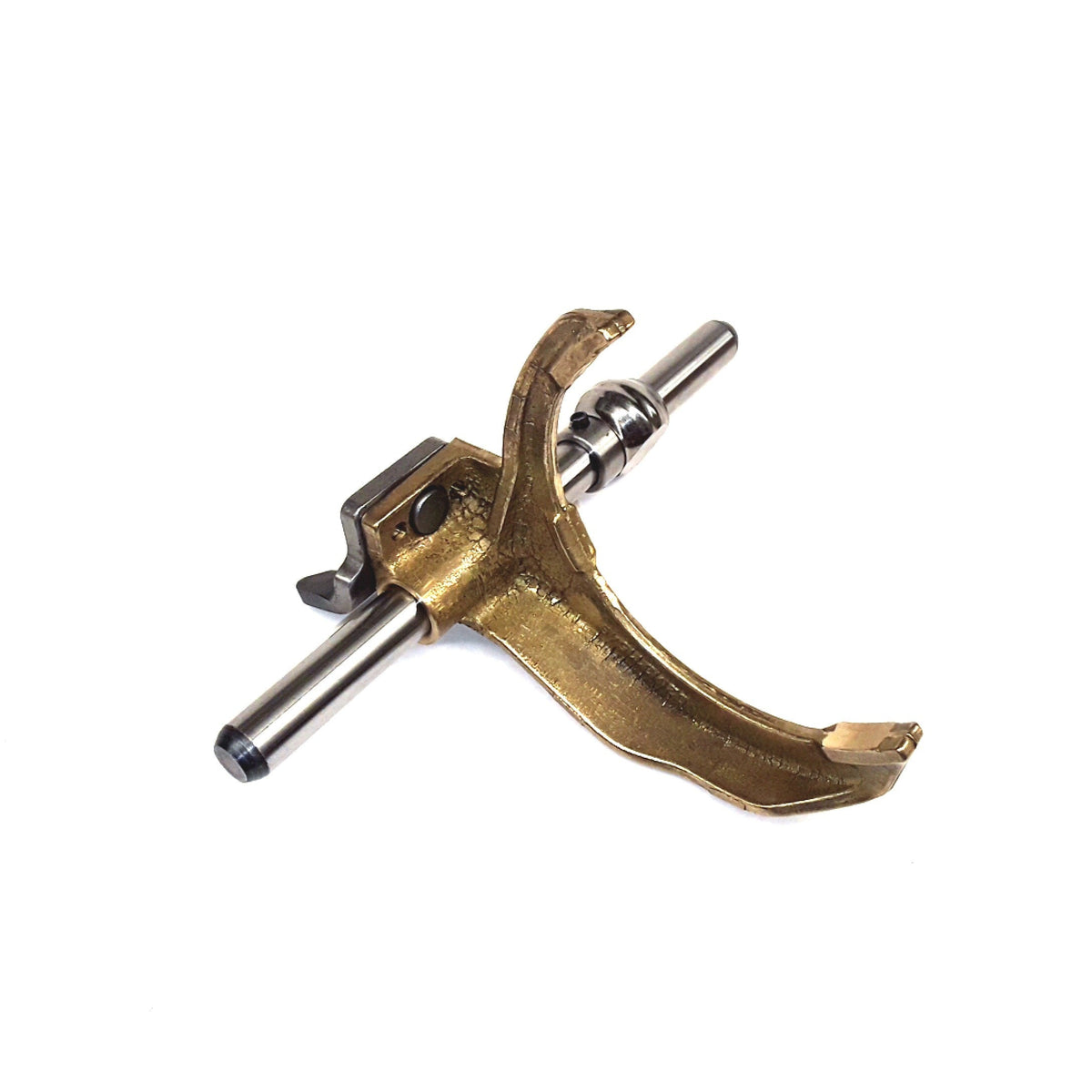

02M-311-549-D is the Genuine VW/Audi selector shaft with fork for the first- and second-gear selection mechanism in the specified six-speed manual transmissions.
The fork acts on the assigned selector sleeve as the shaft moves through the original shift mechanism. It is an internal gearbox component, distinct from the external shift lever, cables and the separate third/fourth or reverse selector parts.
Technical details
- Complete factory number: 02M-311-549-D.
- Factory specification: 1st/2nd gear selector shaft with fork; complete number 02M311549D.
- Design: internal manual-transmission selector shaft and fork assembly.
- Quantity supplied: one individual selector shaft with fork assembly.
The factory first/second-gear designation identifies its internal position. The suffix D must match the gearbox application; a shared 02M prefix alone is not sufficient to establish interchangeability.
Common reasons to replace
- Inspection confirms a bent or damaged selector fork.
- Wear at the fork contact areas exceeds the factory limit.
- The selector shaft is damaged or does not move correctly.
- The original assembly was damaged during gearbox service.
- Gearbox diagnosis identifies this assembly as the cause of an engagement fault.
Difficulty selecting first or second gear can also come from the clutch, external linkage, synchronizer, sleeve, bearings or other internal parts. Diagnose the complete system and inspect related components before replacing the fork assembly.
Vehicle fitment
Match the exact gearbox code and PR designation below. This part is for the assigned manual-transmission first/second selector assembly.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi TT | 2004 | 1.8L turbocharged gasoline I4; 225 hp | 8N Coupe or Roadster; quattro; 6-speed manual; PR G0L | Internal 1st/2nd selector shaft and fork 02M311549D only; confirm gearbox code and original assembly. Not DSG. |
| Volkswagen New Beetle | 2004 | 1.8L turbocharged gasoline I4 | Turbo S hatchback; front-wheel drive; 6-speed manual; PR G0K | Original 02M311549D internal 1st/2nd selector shaft with fork; not the 5-speed or automatic gearbox. |
Installation guidance
Follow the factory transmission overhaul procedure and use the specified tools and adjustment methods. Keep the gearbox interior clean and observe the required selector alignment, detent and interlock arrangements.
Renew specified seals and single-use hardware, refill with the approved lubricant and complete the required selection and operating checks after reassembly.
Ordering information
One genuine selector shaft with fork assembly. Synchronizers, gears, external linkage, bearings, seals and lubricant are separate. Confirm VIN, gearbox code and original suffix.
