OVERVIEW
Maintain the intended crankcase ventilation path

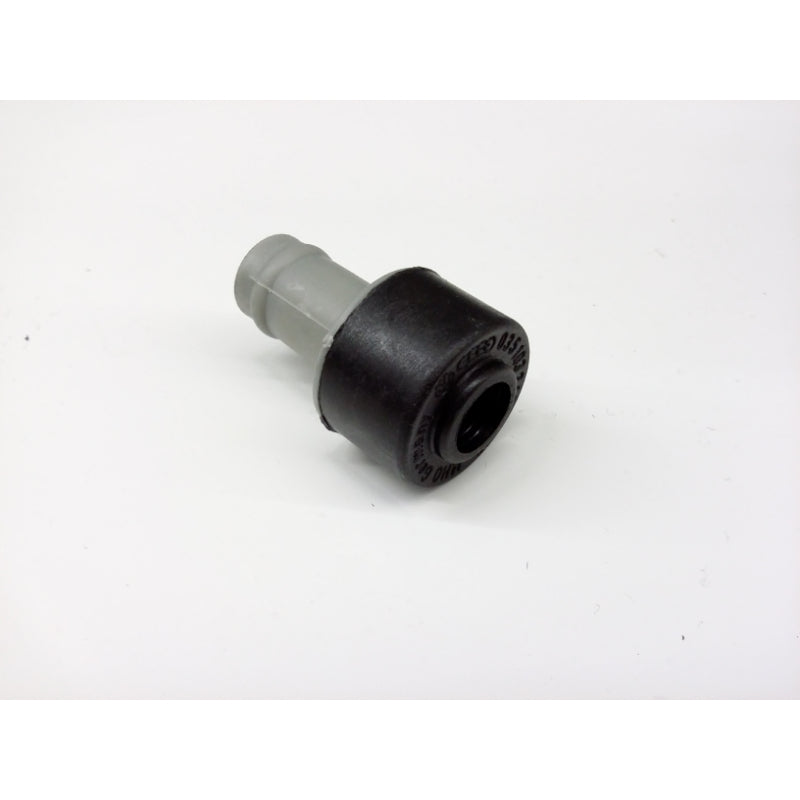

Genuine VW/Audi 035-103-245-A is the valve insert for the assigned crankcase ventilation arrangement. It manages flow at the original breather connection as part of the engine's ventilation system.
The compact valve must be fitted in the specified orientation inside the matching connection. It is separate from the surrounding breather hose and housing, which can also deteriorate with heat and oil exposure.
Technical details
- Complete factory number: 035-103-245-A.
- Factory specification: factory crankcase ventilation / bleeder valve, number 035-103-245-A.
- Design: compact two-connection valve insert for the matching breather housing.
- Quantity supplied: one individual PCV valve; breather housing, hoses and retaining hardware are separate.
Crankcase ventilation layouts differ between engines and production revisions. Match the complete factory number and the original connection arrangement. This insert is not a complete oil separator or a universal replacement for later integrated PCV assemblies.
Common reasons to replace
- Testing confirms that the original valve is stuck or leaking.
- The valve body or connection is cracked or damaged.
- A ventilation-system repair requires replacement of the failed valve insert.
Inspect the surrounding hoses, check valves and housing and test crankcase ventilation according to the factory procedure. Rough idle, oil residue or abnormal crankcase pressure can arise from several faults and should be diagnosed before parts are replaced.
Vehicle fitment
Observe the engine and VIN restrictions in the table. Match the original valve and ventilation circuit before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 1997–2002 | 1.8L turbo gasoline | FWD / quattro, sedan / Avant where equipped | Original breather valve housing assigned 035-103-245-A; match original circuit. |
| Audi A4 | 2003 | 1.8L turbo gasoline | Sedan, FWD / quattro | Through chassis/VIN 8E-3-040000; match original breather valve housing. |
| Audi TT | 2000–2002 | 1.8L turbo gasoline | FWD / quattro, Coupe / Roadster where equipped | Original breather valve housing assigned 035-103-245-A. |
| Volkswagen Passat | 1998–2002 | 1.8L turbo gasoline | B5 / B5.5 sedan / wagon | Original crankcase ventilation valve arrangement; match full A suffix. |
| Volkswagen New Beetle | 1999–2005 | 1.8L turbo gasoline | Matching turbo gasoline installation | Original crankcase ventilation valve arrangement; excludes 2.0L, 2.5L and diesel. |
Installation guidance
Follow the factory breather-system repair procedure with the engine cool. Release the surrounding connection carefully, check the housing for damage and install the valve in the specified direction with the correct retaining and sealing arrangement.
Check that all hoses are seated and routed correctly and complete the required ventilation leak and operating tests. Repair other failed ventilation components found during inspection.
Ordering information
One individual Genuine VW/Audi 035-103-245-A valve is supplied dry. Confirm the complete part number and original breather connection; surrounding pipes and housing are separate.
