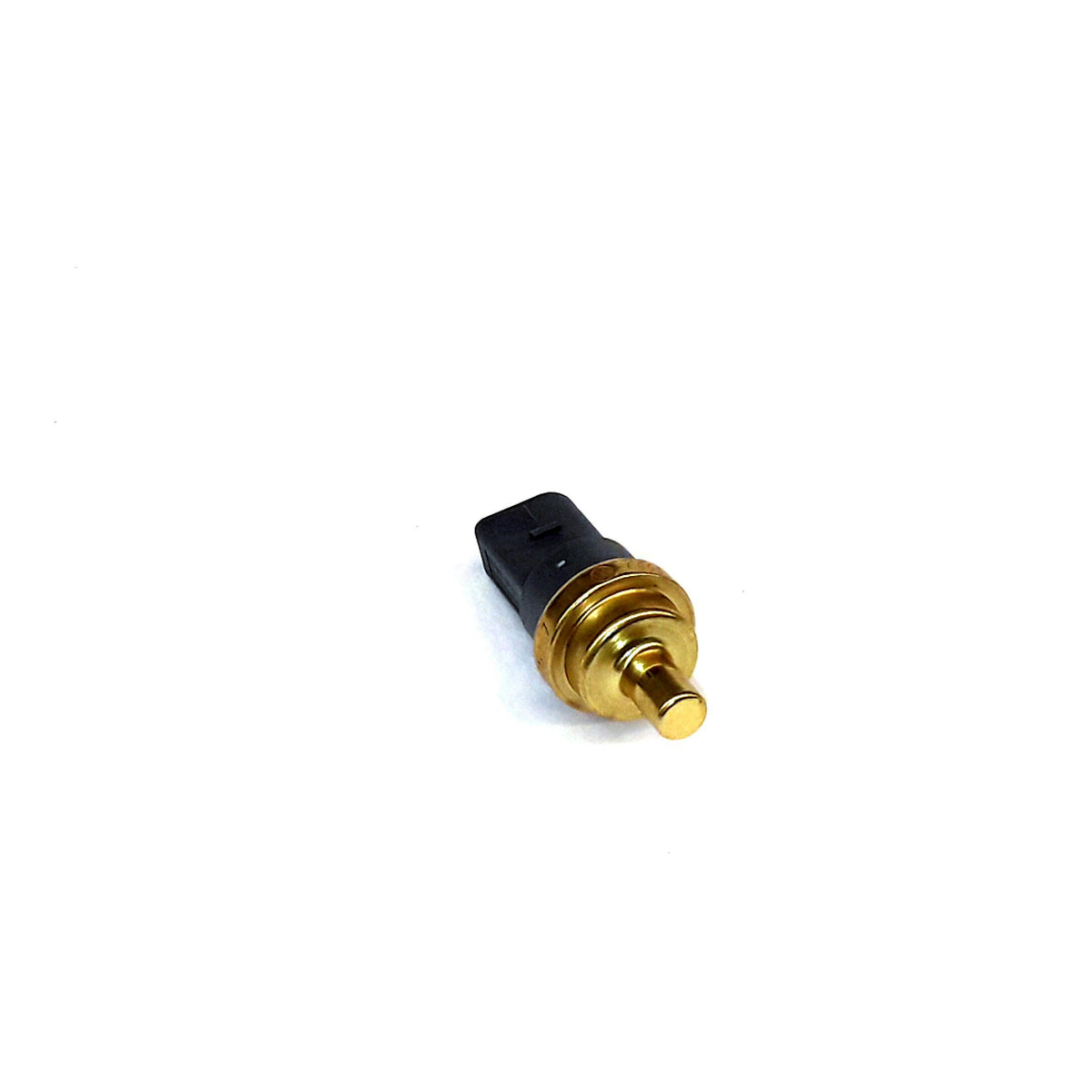

• 06A-919-501-A Genuine VW/Audi coolant temperature sensor with two-pin connector, part identification, original product photo 1
  • 06A-919-501-A Genuine VW/Audi coolant temperature sensor with two-pin connector, factory component, repeated original archive photo 2
  • 06A-919-501-A Genuine VW/Audi coolant temperature sensor with two-pin connector, product reference, repeated original archive photo 3
  • 06A-919-501-A Genuine VW/Audi coolant temperature sensor with two-pin connector, replacement component, repeated original archive photo 4
  • 06A-919-501-A Genuine VW/Audi coolant temperature sensor with two-pin connector, original archive image, repeated original archive photo 5
  • 06A-919-501-A Genuine VW/Audi coolant temperature sensor with two-pin connector, component reference, repeated original archive photo 6
  • 06A-919-501-A Genuine VW/Audi coolant temperature sensor with two-pin connector, ordering reference, repeated original archive photo 7
1 7

Genuine VW/Audi

06A-919-501-A Genuine VW/Audi Coolant Temperature Sensor

06A-919-501-A Genuine VW/Audi Coolant Temperature Sensor

$56.52 USD
$56.52 USD $56.52 USD
Sale Sold out
Shipping calculated at checkout.
In stock

06A-919-501-A

View full details

OVERVIEW

Restore the original coolant-temperature signal

06A-919-501-A is the Genuine VW/Audi coolant temperature sensor for the specified original installations. The sensor's probe measures the coolant temperature at its assigned location and supplies the corresponding electrical signal to the vehicle's control system.

Correct temperature information is needed for the control functions associated with that sensor location. A damaged sensor, poor connector contact or wiring fault can produce an implausible reading; diagnosis should confirm whether the sensor itself is responsible.

Technical details

  • Complete factory number: 06A-919-501-A.
  • Factory specification: factory coolant temperature sender, complete number 06A-919-501-A.
  • Design: metal sensing probe with molded two-pin electrical connector, as pictured.
  • Quantity supplied: one individual coolant temperature sensor.

One individual sensor is supplied. Retaining clip, sealing ring, coolant, housing and wiring are separate unless expressly shown as part of the supplied sensor. A vehicle can have more than one temperature sensor; match the original part number, connector and installation location.

Common reasons to replace

  • Testing identifies an incorrect sensor signal at the assigned coolant location.
  • The connector or sensor body is physically damaged.
  • A diagnostic procedure confirms an internal electrical sensor fault.
  • The original sensor leaks at a damaged body or requires replacement during the relevant repair.

Compare the diagnostic temperature reading with the appropriate test values and inspect the connector and wiring before replacement. Check the coolant level and actual cooling-system condition; a sensor cannot correct overheating caused by a mechanical cooling fault.

Vehicle fitment

Use only at the original coolant-temperature sensor position specifying this complete part number and connector. The table identifies confirmed vehicle configurations; engine and cooling-system equipment determine the exact installation location.

Vehicle Model years Engine Configuration Application restrictions
Volkswagen Arteon 2019–2021 2.0L turbocharged gasoline inline-four Liftback; FWD or 4MOTION Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen New Beetle 2002–2005 1.8L turbocharged or 2.0L gasoline; 1.9L TDI Hatchback; Convertible from 2003 Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen New Beetle 2006 2.5L gasoline; 1.9L TDI Hatchback or Convertible; original outlet equipment Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen New Beetle 2007–2010 2.5L gasoline inline-five Hatchback or Convertible Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Beetle 2012–2013 2.5L gasoline; 2.0L turbocharged gasoline; 2.0L TDI Hatchback; Convertible from 2013 Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Beetle 2014 1.8L or 2.0L turbocharged gasoline; 2.5L gasoline; 2.0L TDI Hatchback or Convertible Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Beetle 2015 1.8L or 2.0L turbocharged gasoline; 2.0L TDI Hatchback or Convertible Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Beetle 2016–2017 1.8L or 2.0L turbocharged gasoline Hatchback or Convertible Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen CC 2009–2017 2.0L turbocharged gasoline; 3.6L VR6 gasoline Sedan; FWD or 4MOTION where equipped Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen e-Golf 2015–2019 Battery electric Hatchback Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Eos 2007–2008 2.0L turbocharged gasoline; 3.2L VR6 gasoline Convertible Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Eos 2009–2016 2.0L turbocharged gasoline Convertible Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Golf 2010–2014 2.5L gasoline; 2.0L TDI Hatchback Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Golf 2015 1.8L turbocharged gasoline; 2.0L TDI Mk7 hatchback Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Golf 2016–2018 1.8L turbocharged gasoline Mk7 hatchback Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Golf 2019 1.4L turbocharged gasoline Mk7 hatchback Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Golf R 2012–2013, 2015–2019 2.0L turbocharged gasoline 4MOTION hatchback Original coolant temperature sender position with matching 06A-919-501-A number and two-pin connection; verify installed cooling-system equipment.
Volkswagen Golf 2020–2021 1.4L turbocharged gasoline Mk7 hatchback Original coolant sender position matching complete number and two-pin connector.
Volkswagen Golf Alltrack 2017–2019 1.8L turbocharged gasoline 4MOTION wagon Original coolant sender position matching complete number and connector.
Volkswagen Beetle 2018–2019 2.0L turbocharged gasoline Hatchback or Convertible Original coolant sender position matching complete number and connector.
Volkswagen Atlas 2018–2023 2.0L turbocharged gasoline; 3.6L VR6 gasoline SUV; FWD or 4MOTION where equipped Original coolant sender position matching complete number and two-pin connector.
Volkswagen Atlas Cross Sport 2020–2023 2.0L turbocharged gasoline; 3.6L VR6 gasoline SUV; FWD or 4MOTION where equipped Original coolant sender position matching complete number and two-pin connector.
Audi A3 2006–2013 2.0L turbocharged gasoline 8P FWD hatchback Original coolant-temperature sensor position with matching complete number and connector.
Audi A3 2010–2013 2.0L TDI diesel 8P FWD hatchback Original coolant-temperature sensor position with matching complete number and connector.
Audi A3 2015 2.0L TDI diesel 8V FWD sedan Original coolant-temperature sensor position with matching complete number and connector.
Audi A3 2015–2016 1.8L turbocharged gasoline 8V FWD sedan or Cabriolet Original coolant-temperature sensor position with matching complete number and connector.
Audi A3 2017–2020 2.0L turbocharged gasoline 8V FWD sedan or Cabriolet Original coolant-temperature sensor position with matching complete number and connector.

Installation guidance

Work on a cool, depressurized system and follow the vehicle's sensor replacement procedure. Capture released coolant, inspect the mounting bore and renew the specified seal and retaining component. Do not force or overtighten a sensor that uses a retaining clip.

Refill and bleed any affected cooling circuit as specified, check for leaks and verify plausible sensor readings with the prescribed diagnostic procedure.

Ordering information

One individual Genuine VW/Audi coolant temperature sensor. Match the original number, connector and location. Housing, coolant and separately required sealing or retaining parts are separate.
