OVERVIEW

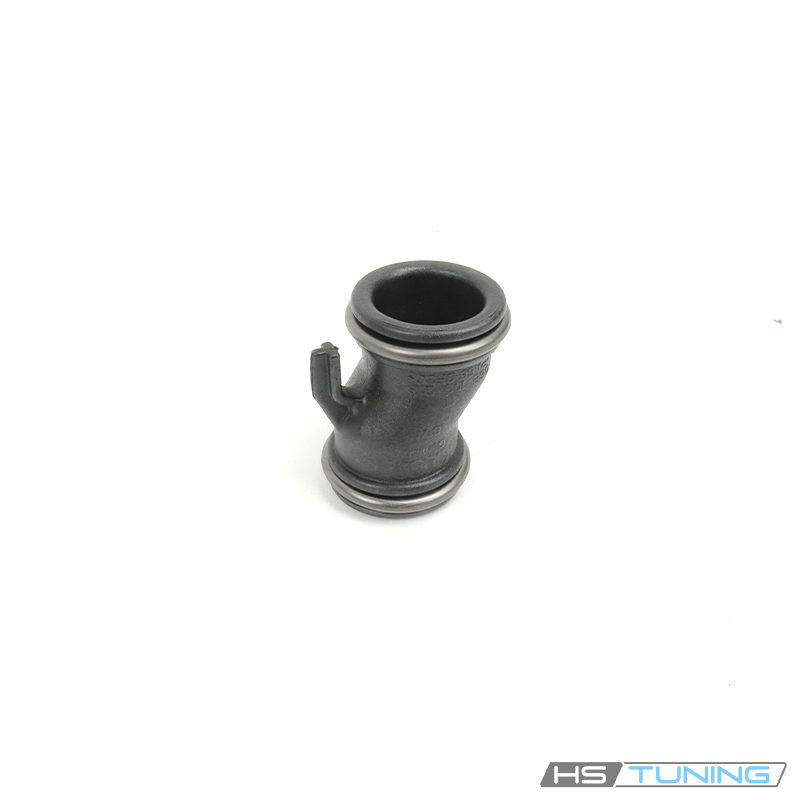

Genuine VW/Audi 06E-103-213 is a crankcase breather / vent tube for the compatible Audi and Volkswagen 3.0L supercharged gasoline V6 applications listed below. It forms part of the crankcase ventilation plumbing, carrying vapors through the system's intended route rather than allowing them to escape through a damaged tube or connection.
Technical details
- OEM part number: 06E-103-213.
- Component: crankcase ventilation vent tube.
- The tube and the crankcase pressure-regulating valve / oil separator are separate parts.
- Match the engine code where specified and verify the installed intake / ventilation arrangement.
Common reasons to replace
Replace the tube when inspection finds cracks, a broken connection, damaged retaining features or a leak at the tube assembly. Heat exposure and age can make an older tube vulnerable to damage while adjacent components are being removed. Replacement may also be needed during crankcase ventilation service when the existing tube cannot be reinstalled intact.
A leak in the ventilation plumbing can affect the system's sealing, but abnormal idle behavior or oil consumption has several possible causes. Diagnose the complete system before attributing those symptoms to this tube. Audi includes this tube among the parts used in specified 3.0T crankcase ventilation service procedures; that does not establish the tube alone as a cure for excessive oil consumption. Inspect its mating connections and the related pressure-regulating components during installation.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A6 | 2009–2011 | 3.0T TFSI (CCAA) | ; Not specified by source | Engine code must match; verify VIN and installed ventilation system |
| Audi S4 | 2010–2012 | 3.0T TFSI (CCBA) | ; Not specified by source | Engine code must match; verify VIN and installed ventilation system |
| Audi S5 | 2010–2012 | 3.0T TFSI (CCBA) | Cabriolet; Not specified by source | Engine code must match; verify VIN and installed ventilation system |
| Audi A6 | 2012 | 3.0T TFSI (CGXB) | ; Not specified by source | Engine code must match; verify VIN and installed ventilation system |
| Audi A7 | 2012 | 3.0T TFSI (CGXB) | ; Not specified by source | Engine code must match; verify VIN and installed ventilation system |
| Audi Q7 | 2011–2012 | 3.0T TFSI (CJWB / CJWC / CJWE) | ; Not specified by source | Engine code must match; verify VIN and installed ventilation system |
| Audi A6 | 2013–2014 | 3.0T TFSI | ; Not specified by source | 3.0L supercharged gasoline engine; verify VIN and installed intake / ventilation system |
| Audi A7 | 2013–2014 | 3.0T TFSI | ; Not specified by source | 3.0L supercharged gasoline engine; verify VIN and installed intake / ventilation system |
| Audi S4 | 2013–2014 | 3.0T TFSI | ; Not specified by source | 3.0L supercharged gasoline engine; verify VIN and installed intake / ventilation system |
| Audi S5 Coupe | 2013–2014 | 3.0T TFSI | ; Not specified by source | 3.0L supercharged gasoline engine; verify VIN and installed intake / ventilation system |
| Audi S5 Cabriolet | 2013–2014 | 3.0T TFSI | ; Not specified by source | 3.0L supercharged gasoline engine; verify VIN and installed intake / ventilation system |
| Audi Q5 | 2013–2014 | 3.0T TFSI | ; Not specified by source | 3.0L supercharged gasoline engine; verify VIN and installed intake / ventilation system |
| Audi Q7 | 2013–2014 | 3.0T TFSI | ; Not specified by source | 3.0L supercharged gasoline engine; verify VIN and installed intake / ventilation system |
| Audi SQ5 | 2014–2017 | 3.0L supercharged gasoline V6 | Premium Plus; SUV; Match original ventilation assembly | Oil separator-to-pipe connection only; confirm installed tube number and VIN. Excludes diesel and other engine variants. |
| Audi A8 | 2013–2015 | 3.0L supercharged gasoline V6 | D4; standard wheelbase quattro sedan; Match original ventilation assembly | Oil separator-to-pipe connection only; confirm installed tube number and VIN. Excludes diesel and other engine variants. |
| Audi A8 L | 2013–2018 | 3.0L supercharged gasoline V6 | D4; long wheelbase quattro sedan; Match original ventilation assembly | Oil separator-to-pipe connection only; confirm installed tube number and VIN. Excludes diesel and other engine variants. |
| Volkswagen Touareg | 2011–2015 | 3.0L supercharged gasoline V6 with hybrid drive | 7P; Hybrid SUV; Match original ventilation assembly | Oil separator-to-pipe connection only; confirm installed tube number and VIN. Excludes diesel and other engine variants. |
Match the engine and confirm part number and VIN before ordering.
