OVERVIEW

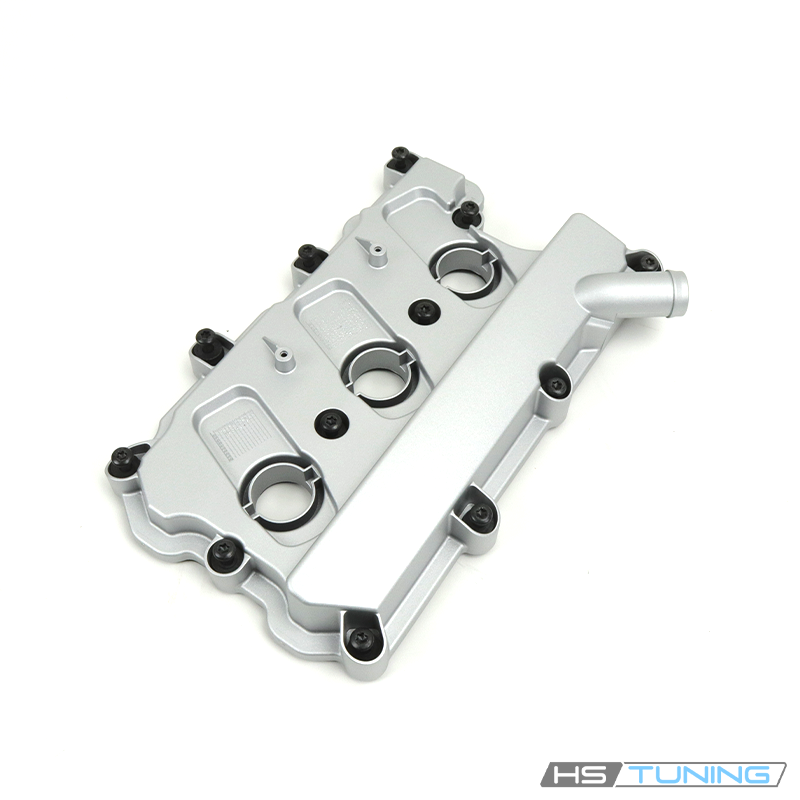

The 06E-103-472-N Genuine VW/Audi right engine valve cover encloses the valvetrain on the cylinders 1–3 bank of the listed V6 engines. It contains oil splash within the cylinder head and provides the sealing surface around the cover perimeter and ignition-coil openings. Renewing a damaged cover restores the correct housing shape and sealing interface instead of relying on a new gasket to compensate for a cracked or distorted component.
Technical details
- OEM part number: 06E-103-472-N / 06E103472N.
- Position: right engine bank, cylinders 1–3. Identify bank orientation using the factory parts diagram.
- Supplied: one valve cover with gasket, as specified in the Audi parts catalog. This listing is for a single engine bank.

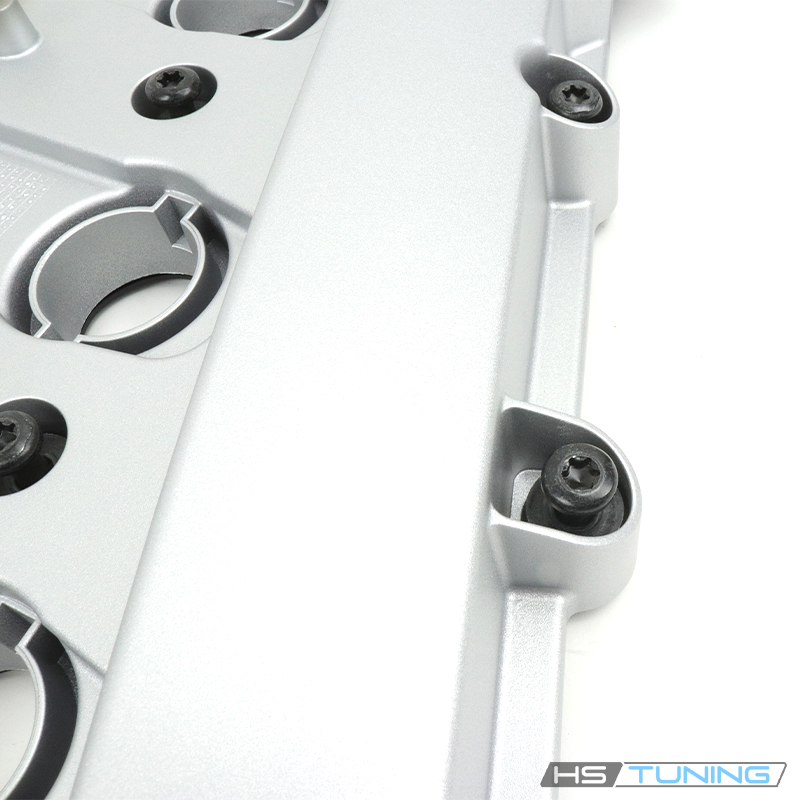

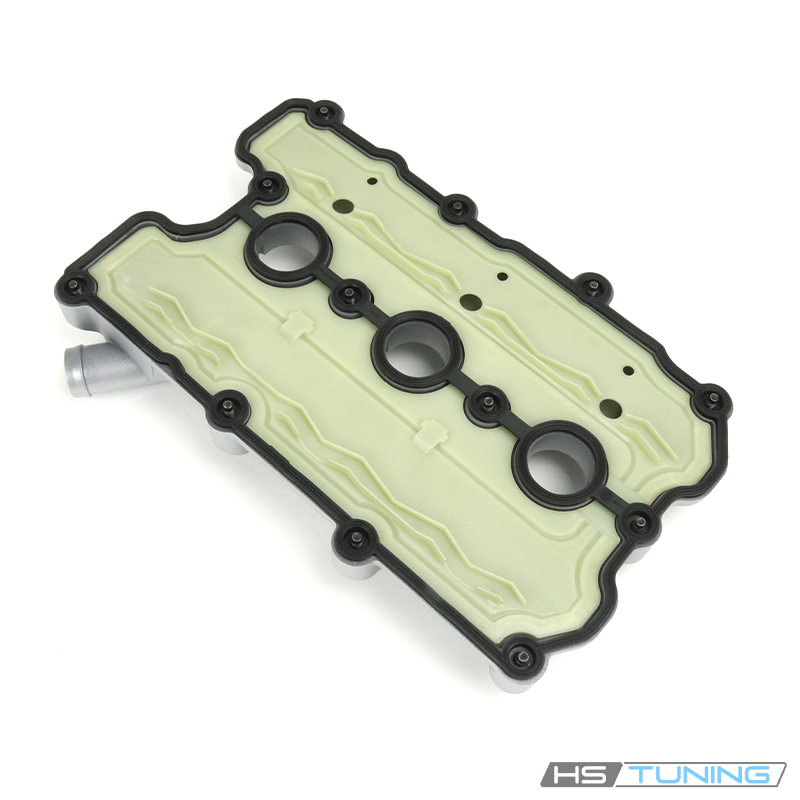

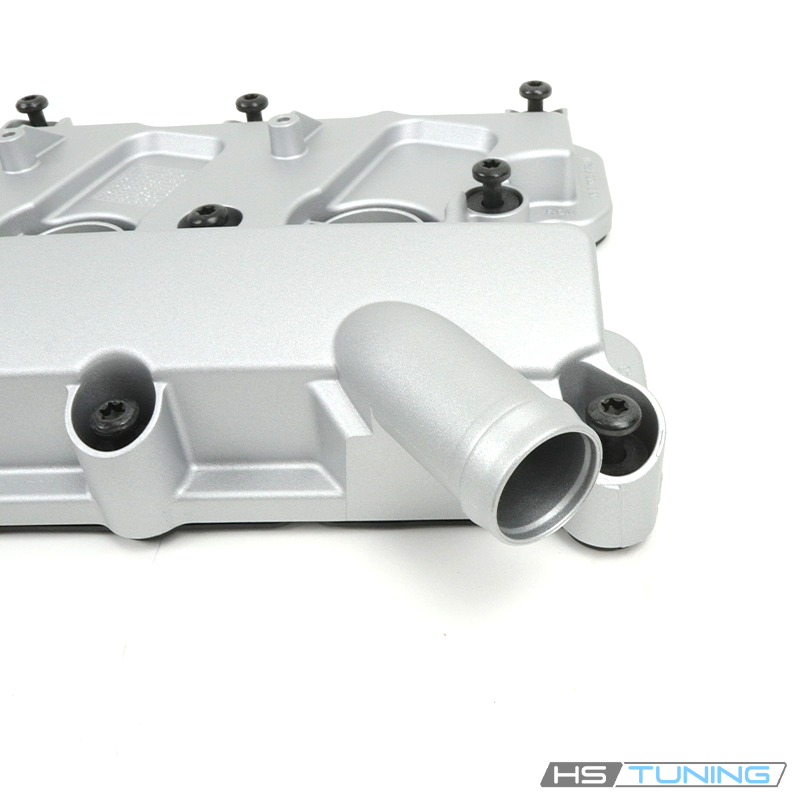

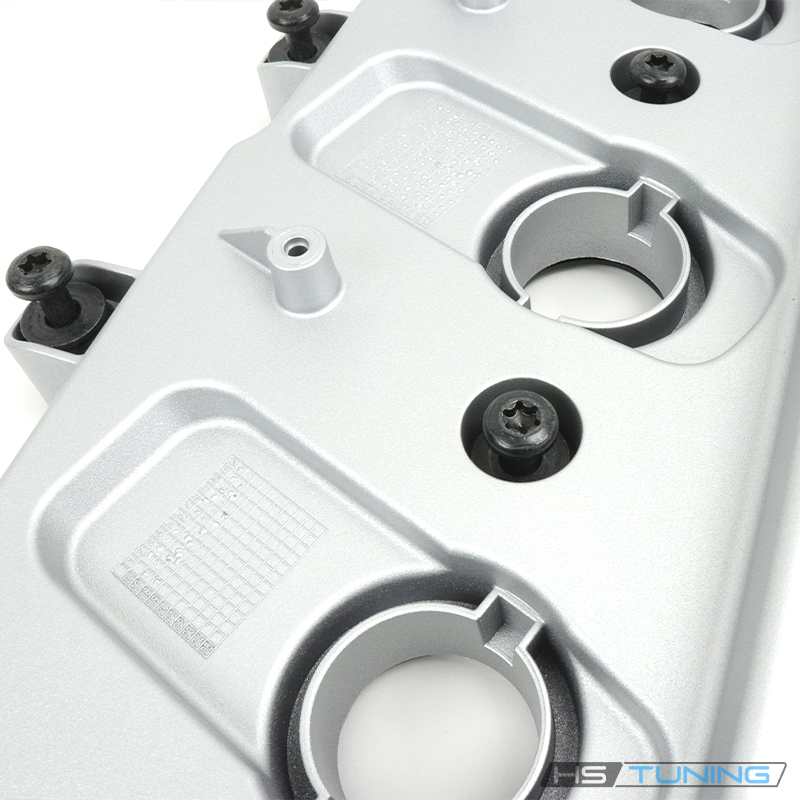

- Visible features: three ignition-coil openings, perimeter fastener locations and a breather connection. Photos include the underside and sealing perimeter.
Common reasons to replace
Replace the cover when inspection finds cracks in the housing or breather connection, damaged mounting areas, or distortion of the sealing surface. Persistent oil leakage after a correctly installed gasket may indicate damage to the cover itself. Oil entering a spark-plug well can also call for inspection of the cover and its seals.
An oil smell, smoke from oil contacting a hot component, or a misfire associated with oil contamination can prompt diagnosis, but these symptoms do not identify the cover as the cause by themselves. Trace the leak and inspect the crankcase ventilation system; abnormal crankcase pressure can contribute to recurring oil leaks.
Service notes
Clean the cylinder-head sealing surface without allowing debris into the engine. Seat the gasket correctly, apply sealant only where the current repair procedure specifies, and follow the prescribed tightening sequence and torque. Inspect the breather hose and ignition components disturbed during removal. The opposite-bank cover, ignition coils and breather hoses are separate components.
Fitment
| Make / model | Model years | Body / trim | Engine |
|---|---|---|---|
| Audi A4 quattro | 2009 | Sedan; Base | 3.2L FSI V6 gasoline |
| Audi A5 quattro | 2008–2010 | Coupe; Base | 3.2L FSI V6 gasoline |
| Audi A6 | 2010–2011 | Sedan; Base | 3.2L FSI V6 gasoline |
| Audi A6 quattro | 2009–2011 | Sedan / Avant wagon; Base sedan / Avant | 3.0L TFSI supercharged V6 gasoline |
| Audi A6 quattro | 2012–2013 | Sedan; Premium / Premium Plus / Prestige | 3.0L TFSI supercharged V6 gasoline |
| Audi A6 quattro | 2014–2015 | Sedan; Premium Plus / Prestige; Premium also 2014 | 3.0L TFSI supercharged V6 gasoline |
| Audi A7 quattro | 2012–2015 | Sportback; Base 2012–2013; Premium Plus / Prestige 2014–2015 | 3.0L TFSI supercharged V6 gasoline |
| Audi A8 quattro | 2013–2014 | Sedan / L; Base / L | 3.0L TFSI supercharged V6 gasoline |
| Audi Q5 | 2009–2010 | SUV; Premium / Premium Plus / Prestige | 3.2L FSI V6 gasoline |
| Audi Q5 | 2011–2012 | SUV; Premium Plus / Prestige | 3.2L FSI V6 gasoline |
| Audi Q5 | 2013–2017 | SUV; Premium Plus / Prestige | 3.0L TFSI supercharged V6 gasoline |
| Audi Q7 | 2011–2015 | SUV; Premium / Premium Plus / Prestige | 3.0L TFSI supercharged V6 gasoline |
| Audi S4 | 2010–2016 | Sedan; Base 2010–2013; Premium Plus / Prestige 2014–2016 | 3.0L TFSI supercharged V6 gasoline |
| Audi S5 | 2010–2017 | Cabriolet; Cabriolet 2010–2013; Premium Plus / Prestige 2014–2016; Base 2017 | 3.0L TFSI supercharged V6 gasoline |
| Audi S5 | 2013–2017 | Coupe; Base 2013/2017; Premium Plus / Prestige 2014–2016 | 3.0L TFSI supercharged V6 gasoline |
| Audi SQ5 | 2014–2017 | SUV; Premium Plus / Prestige | 3.0L TFSI supercharged V6 gasoline |
| Volkswagen Touareg Hybrid | 2011–2015 | SUV; Hybrid only | 3.0L supercharged V6 gasoline hybrid |
Only the listed gasoline applications are included. Match the right-bank part number and verify VIN before ordering; diesel profiles and 4.2L V8 S5 applications are excluded.
Technical references
Audi valve cover catalog; Exact-part vehicle application catalog.
