OVERVIEW
Genuine VW/Audi Engine Oil Control Solenoid Valve
06E-115-243-H is an electrically operated engine oil-control valve used in selected Volkswagen and Audi engines. This N428 solenoid controls the engine lubrication circuit in the applicable engine assembly. Order by the exact part number, engine specification and vehicle identification; installation position and oil-pump control strategy differ between engines.
Technical Details and Function

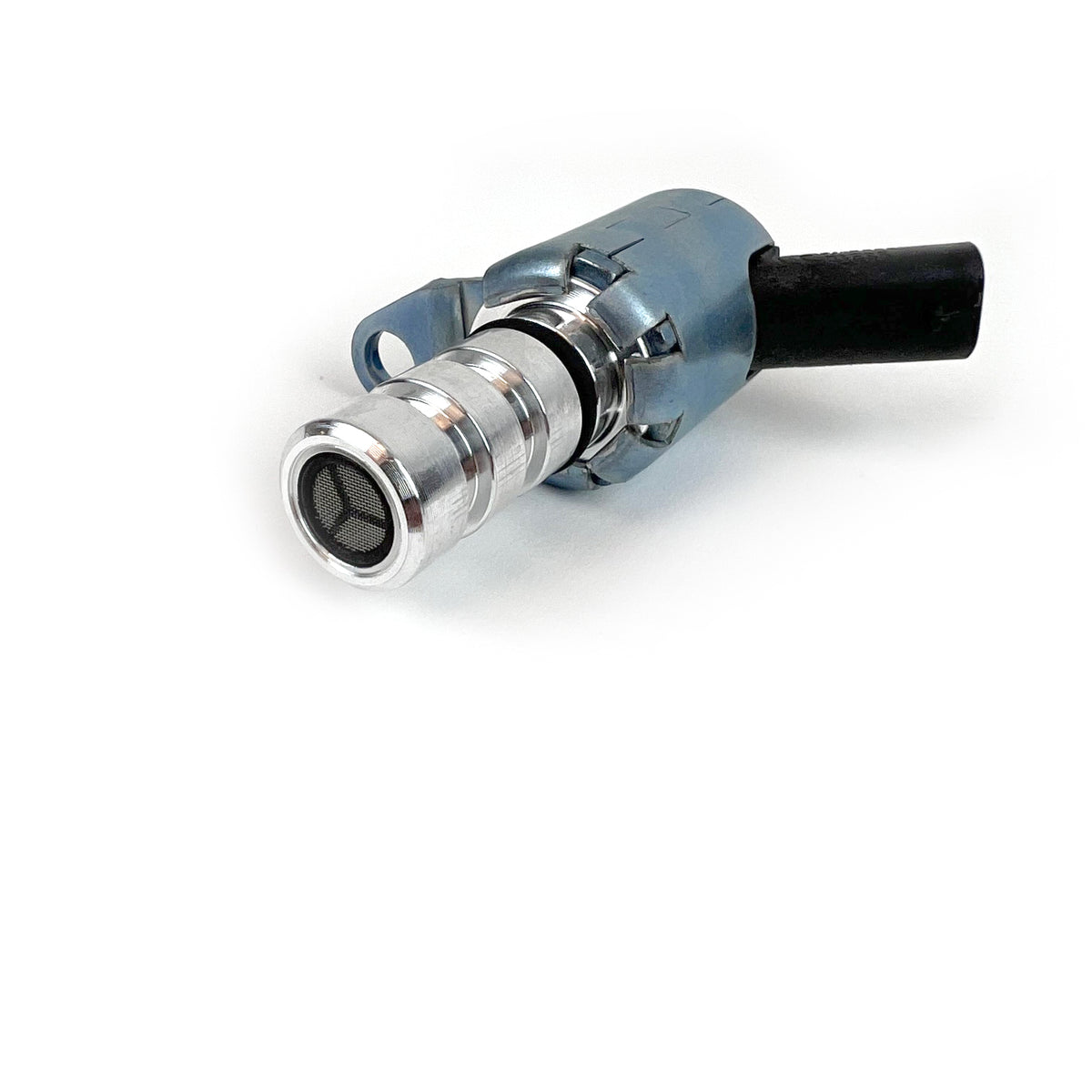

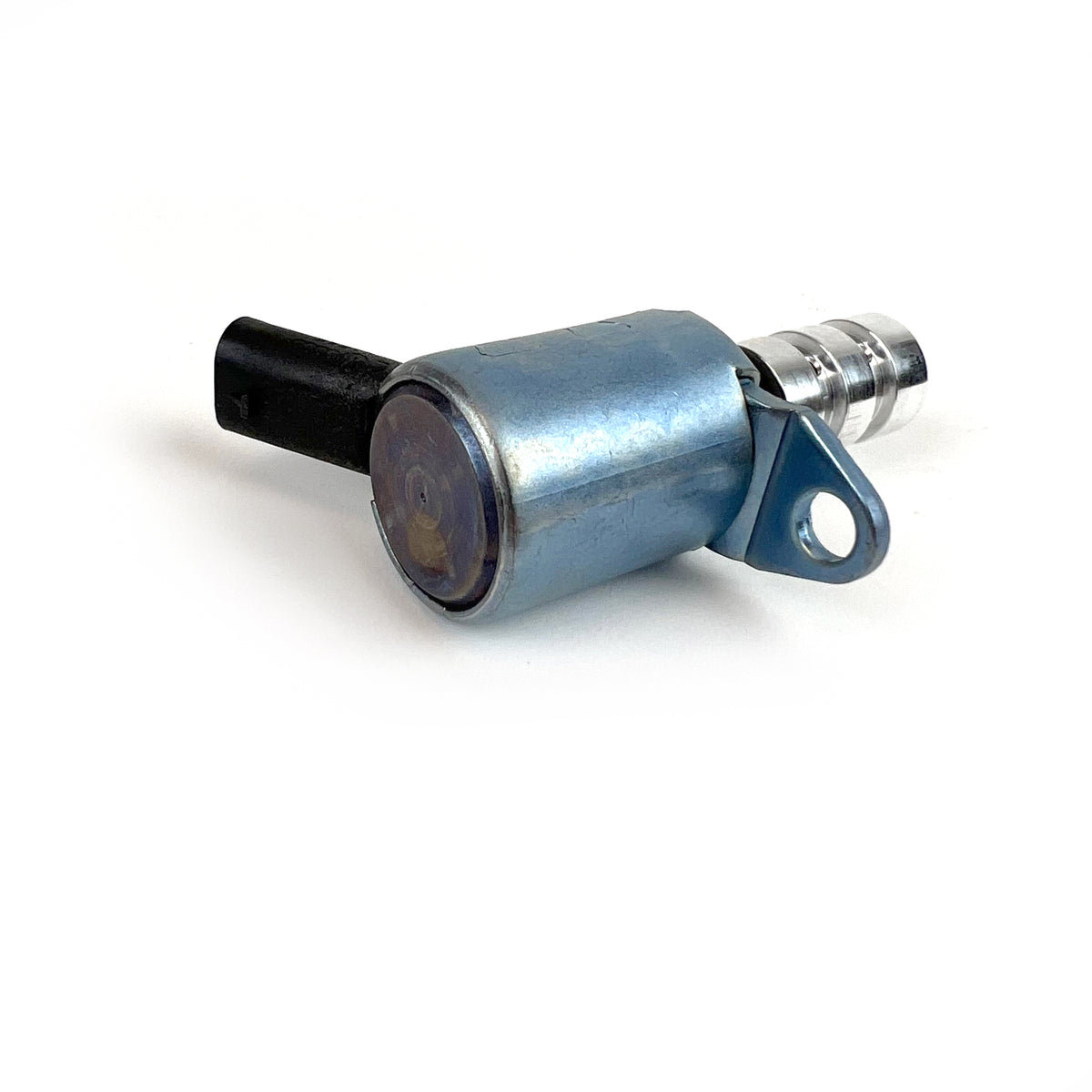

The valve combines an electrical actuator with a cylindrical hydraulic valve body. The original gallery photographs show the screened oil inlet, sealing ring, mounting ear and electrical connector. The valve routes or regulates engine oil within its assigned circuit when commanded by the engine management system. N428 forms part of the oil-pressure regulation system. The engine control unit electrically operates the valve to control the pump regulation circuit according to the engine operating conditions. It is distinct from the camshaft phasing valves and the oil-pressure sensor.
- Manufacturer: Genuine VW/Audi.
- Part number: 06E-115-243-H.
- Superseded references: public Volkswagen and Audi catalogs list 06E-115-243-E, 06E-115-243-F and 06E-115-243-G. Confirm the applicable supersession by VIN.
- Quantity supplied: one solenoid valve.
- Configuration: electrically operated hydraulic oil-control valve; match the original connector, valve body and mounting arrangement.
Common Reasons to Replace
Replacement may be appropriate after diagnosis identifies an electrical fault in the valve, a sticking hydraulic mechanism, restricted oil flow through the valve inlet, a damaged connector or a leak at the valve installation. An oil-pressure regulation fault can trigger a warning or diagnostic fault when the commanded lubrication control is not achieved. These symptoms can also result from wiring faults, unsuitable oil, a separate mechanical oil-pump problem or another hydraulic fault; confirm the cause before replacing the valve.
Fitment and Application
The table identifies confirmed model and engine profiles. Engine code and production restrictions take priority over a broad model-year match. Compare the original valve number and connector and verify the vehicle identification before ordering. A listing for one engine does not establish compatibility with another engine in the same model.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta Hybrid | 2013–2016 | 1.4L turbocharged gasoline/electric hybrid | Mk6 sedan; original 1.4L hybrid engine; DSG; front-wheel drive | Original engine oil-control valve must match 06E-115-243-H or a verified replaced revision; excludes nonhybrid engines. |
| Volkswagen Jetta | 2016–2018 | 1.4L turbocharged gasoline | Mk6 sedan; S, SE and applicable Wolfsburg Edition; Manual or automatic; front-wheel drive | Production after April 27, 2016; match original valve and VIN before ordering. Excludes 1.8L, 2.0L and GLI. |
| Volkswagen Jetta | 2019–2021 | 1.4L turbocharged gasoline | Mk7 sedan; original 1.4L engine; Match original 1.4L engine assembly | Exact original oil-control valve must match; excludes GLI and later 1.5L engines. |
| Audi A3 Sportback e-tron | 2017–2018 | 1.4L turbocharged gasoline/electric plug-in hybrid | 8V Sportback e-tron; Match original hybrid powertrain | Original engine oil-pressure control solenoid application; excludes nonhybrid A3 and e-tron electric vehicles. |
| Audi A6 | 2014–2016 | 3.0L V6 TDI diesel; CPNB | C7 TDI sedan; Match original CPNB engine assembly | Oil-control valve for the specified diesel engine code; other engines require separate verification. |
| Audi A7 | 2014–2016 | 3.0L V6 TDI diesel; CPNB | C7 TDI Sportback; Match original CPNB engine assembly | Oil-control valve for the specified diesel engine code; other engines require separate verification. |
| Audi Q5 | 2014–2016 | 3.0L V6 TDI diesel; CPNB | 8R TDI SUV; Match original CPNB engine assembly | Oil-control valve for the specified diesel engine code; excludes 2.0L and gasoline V6 applications unless separately confirmed. |
| Audi Q7 | 2013–2015 | 3.0L V6 TDI diesel; CNRB | 4L TDI SUV; 240 hp; Match original CNRB engine assembly | CNRB engine only; excludes earlier diesel revisions and gasoline engines. |
| Volkswagen Touareg | 2013–2016 | 3.0L V6 TDI diesel; CNRB | 7P TDI SUV; 240 hp; Match original CNRB engine assembly | CNRB engine only; excludes earlier diesel revisions, gasoline and hybrid engines. |
| Audi Q5 | 2013–2017 | 3.0L supercharged V6 gasoline; CTUC | 8R; Premium Plus or Prestige; Automatic; quattro | N428 oil-pressure control valve; excludes 2.0L, hybrid and TDI engines in this row. |
| Audi SQ5 | 2014–2017 | 3.0L supercharged V6 gasoline; CTUD | 8R; Premium Plus or Prestige; Automatic; quattro | Original N428 oil-pressure control valve; excludes later turbocharged SQ5 engines. |
| Audi Q7 | 2011–2015 | 3.0L supercharged V6 gasoline; CJWB, CJWC, CTWA or CTWB | 4L SUV; 3.0T; Automatic; quattro | Match engine code and original N428 valve; excludes diesel and 4.2L gasoline engines in this row. |
| Audi Q7 | 2017–2019 | 3.0L supercharged V6 gasoline; CREC | 4M SUV; 3.0T; Automatic; quattro | Through model year 2019 only; excludes 2.0L and later turbocharged 3.0L engines. |
| Volkswagen Golf | 2019–2021 | 1.4L turbocharged gasoline; DGXA | Mk7.5 hatchback; S/SE for 2019, TSI for 2020–2021; Manual or automatic; front-wheel drive | Original 1.4L N428 oil-control valve; excludes GTI, Golf R and 1.8L engines. |
| Volkswagen Golf SportWagen | 2019 | 1.4L turbocharged gasoline; DGXA | Mk7.5 wagon; S or SE; Manual or automatic where equipped; front-wheel drive | 1.4L FWD only; excludes 1.8L 4Motion, Alltrack and earlier engines. |
Installation and Service Notes
Follow the repair procedure for the exact engine. Protect the open oil passage from contamination, inspect the connector and wiring, and check the receiving bore and sealing arrangement before installation. Replace any seal that the applicable procedure requires and use the specified fastener torque. After repair, confirm that the relevant circuit operates correctly, check for oil leaks and clear fault codes only after the original cause has been addressed. This individual valve does not include an oil pump, camshaft adjuster, wiring harness or engine assembly.
Product Photos and Ordering
The gallery uses two original archive product photographs. Where an image repeats to complete the seven-image gallery, its description identifies the repeated original photo. Photographs show the catalog part; verify the exact application and supplied part number before ordering.
