OVERVIEW
The 06E-121-119-K Genuine VW/Audi outer coolant pipe seal seals the pipe joint to help keep coolant inside the engine cooling circuit. A sound seal allows the joint to contain coolant under normal operating pressure. This small part is especially useful to have ready when a matching coolant pipe is removed during cooling-system service.
Technical details
- OEM part number: 06E-121-119-K / 06E121119K.
- Replacement number: replaces 06E-121-119-E; confirm the current application against the vehicle VIN.
- Position: outer coolant-pipe connection. The center seal is a separate part.
- Quantity: one seal. Pipes, fasteners, coolant and other seals are separate.
- Service quantity: the documented upper-pipe repair uses two outer seals. Order the quantity required for your repair.
- Reuse: install a new seal after removing the connection; the Audi catalog specifies that this part cannot be reused.
Common reasons to replace
Replace a removed seal, a damaged sealing profile, or a seal at a confirmed leaking pipe joint. Cracking, flattening or damage during removal can prevent the connection from sealing correctly. Fresh coolant wetness or dried residue around the joint can help identify the area to inspect, but residue alone does not establish which component failed.
Confirm the leak source before ordering. A cracked pipe, a damaged mating surface or coolant running down from a nearby component can produce similar evidence. Replacing the seal alone will not correct a damaged pipe or housing.
Service notes
Let the cooling system cool and follow the vehicle-specific procedure for draining and relieving pressure. Clean the mating surfaces without damaging them, inspect the pipe and seat, and avoid pinching or twisting the new seal during assembly. Follow the specified installation and coolant filling procedure, then check the repaired connection for leakage.

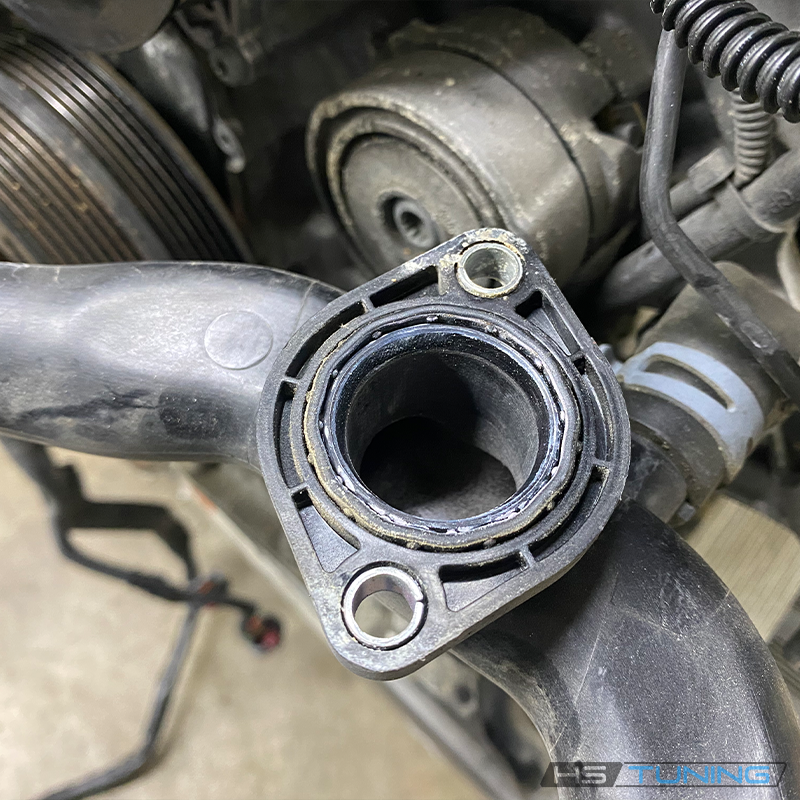

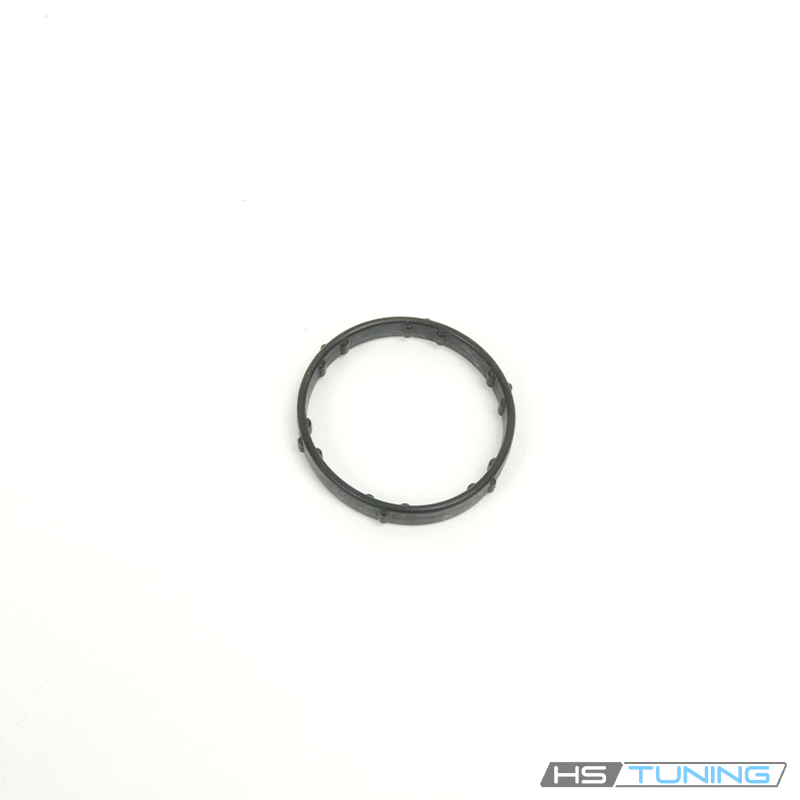

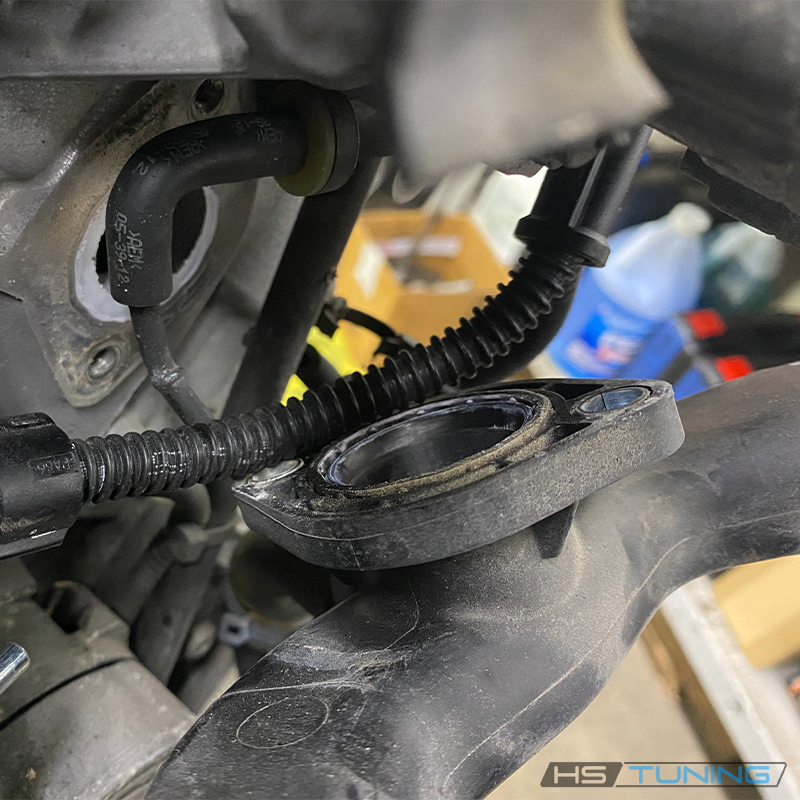

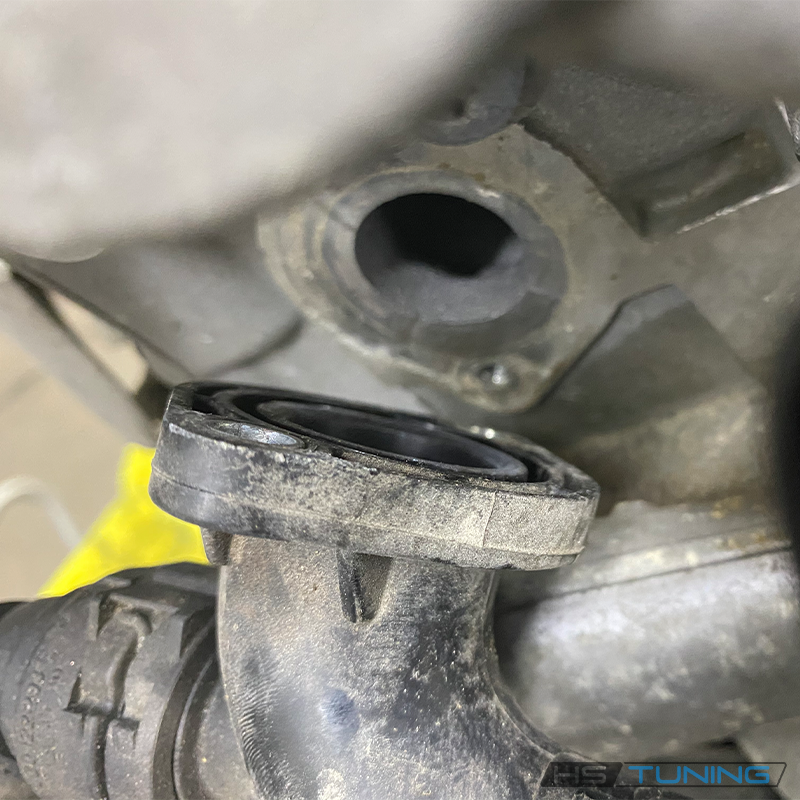

The first photo shows the separate seal. Additional photos show a coolant-pipe connection during service for context; the pictured pipe and surrounding components are not included.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A6 | 2012–2015 | 3.0L TFSI supercharged gasoline V6 | Sedan; Verify VIN-specific installation | Outer coolant-pipe connection; replaces 06E-121-119-E. Match VIN and existing pipe; gasoline 3.0T only. |
| Audi A7 | 2012–2016 | 3.0L TFSI supercharged gasoline V6 | Sportback; Verify VIN-specific installation | Outer coolant-pipe connection; replaces 06E-121-119-E. Match VIN and existing pipe; gasoline 3.0T only. |
| Audi A8 | 2013–2014 | 3.0L TFSI supercharged gasoline V6 | Sedan; Verify VIN-specific installation | Outer coolant-pipe connection; replaces 06E-121-119-E. Match VIN and existing pipe; gasoline 3.0T only. |
| Audi Q5 | 2013–2015 | 3.0L TFSI supercharged gasoline V6 | SUV; Verify VIN-specific installation | Outer coolant-pipe connection; replaces 06E-121-119-E. Match VIN and existing pipe; gasoline 3.0T only. |
| Audi S4 | 2011–2012 | 3.0L TFSI supercharged gasoline V6 | Sedan; Verify VIN-specific installation | Outer coolant-pipe connection; replaces 06E-121-119-E. Match VIN and existing pipe; gasoline 3.0T only. |
| Audi S5 | 2011–2012 | 3.0L TFSI supercharged gasoline V6 | Cabriolet only; Verify VIN-specific installation | Outer coolant-pipe connection; replaces 06E-121-119-E. Match VIN and existing pipe; gasoline 3.0T only. |
| Audi Q7 | 2011–2012 | 3.0L TFSI supercharged gasoline V6 | SUV; Verify VIN-specific installation | Outer coolant-pipe connection; replaces 06E-121-119-E. Match VIN and existing pipe; gasoline 3.0T only. |
| Volkswagen Touareg | 2011–2015 | 3.0L supercharged gasoline V6 hybrid | 7P; Hybrid SUV; Match installed cooling pipe | Outlet pipe-to-engine seal only; two used in the cited assembly. Sold individually. Confirm installed pipe and original seal number. |
| Audi SQ5 | 2014–2017 | 3.0L supercharged gasoline V6 | 8R; Premium Plus / Prestige SUV; Match installed cooling pipe | Outlet pipe-to-engine seal only; two used in the cited assembly. Sold individually. Confirm installed pipe and original seal number. |
Match the VIN, pipe connection and installed seal before ordering. These are confirmed applications; other engine and model variants require separate part verification.
