OVERVIEW
Genuine VW/Audi K04 turbocharger with exhaust manifold, part number 06F-145-702-C. This assembly uses exhaust-gas energy to drive the turbine and compressor, supplying the intake charge required by the specified factory turbocharged engine. The exhaust manifold routes the engine's exhaust flow into the turbocharger.
Technical details
- Original part number: 06F-145-702-C / 06F145702C.
- K04 turbocharger and exhaust-manifold assembly, associated with BorgWarner reference 5304-988-0064.
- The fitment table lists factory K04 replacement applications. The original engine code, turbocharger identity and connected plumbing must be verified.
- One turbocharger/manifold assembly is supplied. This is not a complete conversion package.
- Replacement oil and coolant lines, gaskets, mounting hardware, software and conversion plumbing are separate unless specifically supplied with the assembly.

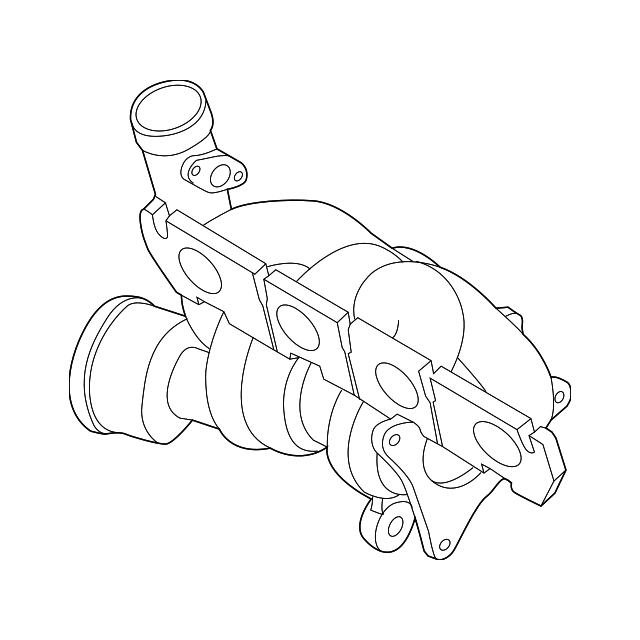

- The archive image is a catalog illustration of the turbocharger/manifold assembly.
- Do not select this part for a standard K03-equipped vehicle solely because its engine displacement is 2.0L. K04 conversions may require different plumbing, diverter-valve arrangement, calibration and other supporting components.
Common reasons to replace
Replacement may be required when diagnosis confirms damage to the turbocharger's rotating assembly, bearing system, compressor or turbine, or when the manifold or turbo housing is cracked. A failed or damaged turbo can contribute to reduced boost, abnormal operating noise, smoke or oil consumption, depending on the failure.
Verify the cause before replacement. Boost leaks, control faults, diverter-valve problems, crankcase ventilation faults, restricted oil supply or exhaust restrictions can produce symptoms that resemble turbocharger failure. An underboost code alone does not establish that the turbocharger must be replaced.
Inspect the oil supply and return, coolant connections and intake/exhaust paths as part of the repair. If the original unit has released debris or oil into connected components, inspect and clean or replace affected parts according to the service procedure. The cause of lubrication starvation or contamination must be corrected to protect the replacement.
Installation and service notes
Follow the factory procedure for the exact engine and turbo configuration. Keep exposed oil, coolant and intake passages clean, use the specified new seals and fasteners, and inspect mounting surfaces and connected lines before assembly.
Follow the prescribed lubrication and initial-start procedure, including any required priming steps. Fill and bleed the cooling system as directed when its circuit has been opened. Do not run the replacement with an unresolved oil-feed restriction or contaminated lubrication system.
Check oil, coolant and exhaust connections for leaks and verify boost-control operation after installation. Use the required engine calibration for the original factory configuration. Any conversion to a different turbo specification requires separate engineering and supporting components; this listing's fitment table does not claim those conversions are direct replacements.
Fitment
| Vehicle | Model years | Engine | Body and transmission | Application restrictions |
|---|---|---|---|---|
| Audi TTS quattro | 2009–2015 | 2.0L turbo gasoline, CDMA | 8J coupe; S tronic automatic | Factory K04 application; verify engine code and original turbo part number. Standard TT 2.0T configurations must not be treated as equivalent. |
| Audi TTS quattro | 2009–2015 | 2.0L turbo gasoline, CDMA | 8J roadster; S tronic automatic | Factory K04 application; verify engine code and original turbo part number. |
| Volkswagen Golf R | 2012–2013 | 2.0L turbo gasoline, CRZA | Mk6 hatchback, 4Motion; 6-speed manual | Factory K04 application; match the original turbocharger and manifold configuration. |
Confirm engine code and original turbocharger part number before ordering. One K04 turbocharger/manifold assembly is supplied.
