OVERVIEW
The 06F-145-757-L Genuine VW/Audi turbo oil return line gasket seals the matching return-line flange so oil leaving the turbocharger remains inside the oil circuit. A leaking flange can leave oil around the line connection and nearby engine components. This is the separate gasket for the joint, making it a useful service part when a matching return line is removed.
Technical details
- OEM number: 06F-145-757-L / 06F145757L.
- Catalog replacements: 06F-145-757-C and 06F-145-757-H; verify the current replacement against the VIN.
- Function: turbocharger oil-return flange seal.

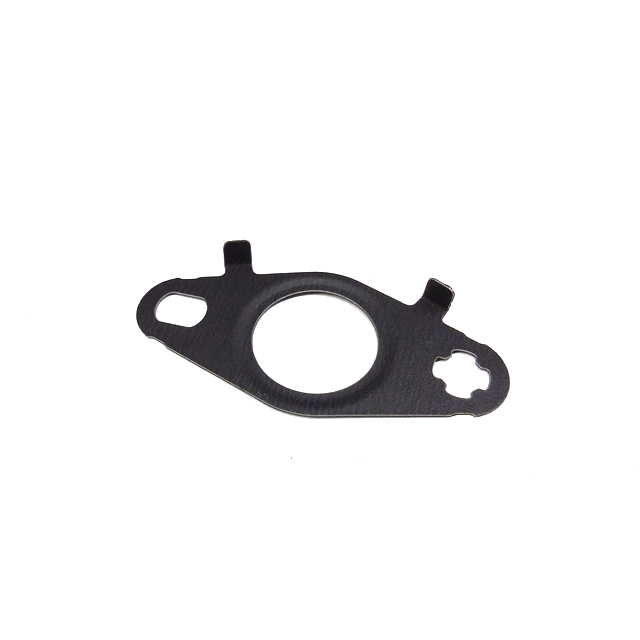

- Profile: a central oil passage, two fastener openings and locating tabs are visible in the source photo. Match the flange and gasket orientation.
- Quantity: one gasket; the oil line, turbocharger and fasteners are separate.
Common reasons to replace
Replace a gasket that was disturbed during line removal, has a damaged sealing profile, or is at a confirmed leaking return-line flange. Oil staining, fresh wetness or a drip near the connection are reasons to inspect the joint. Oil reaching a hot surface may also produce an odor, but that symptom does not identify the gasket as the cause.
Clean and inspect the area to distinguish a flange leak from oil running down from another component. Check the line for damage and the mating faces for defects. A new gasket will not repair a cracked tube, a distorted flange or an obstruction in the oil return path.
Service notes
Follow the vehicle-specific procedure for access and oil-line removal. Keep debris out of the open oil passage, clean the mating surfaces without scratching them, and use the correct fasteners and tightening specification. Fit the gasket in its specified orientation and check for leakage after the repair. Do not infer a torque or sealant requirement from another engine’s return-line arrangement.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2006–2013 | 2.0L turbocharged inline-4 gasoline | Base; hatchback; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi A3 quattro | 2009–2013 | 2.0L turbocharged inline-4 gasoline | Base; hatchback; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi A4 | 2005–2016 | 2.0L turbocharged inline-4 gasoline | Sedan; listed 2.0T trims; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi A4 quattro | 2005–2016 | 2.0L turbocharged inline-4 gasoline / flex fuel | Sedan / Avant; listed 2.0T trims; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi A5 | 2010–2014 | 2.0L turbocharged inline-4 gasoline | Cabriolet; 2.0T; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi A5 quattro | 2010–2017 | 2.0L turbocharged inline-4 gasoline / flex fuel | Coupe / Cabriolet; listed 2.0T trims; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi A6 | 2012–2015 | 2.0L turbocharged inline-4 gasoline | Premium / Premium Plus; sedan; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi A6 quattro | 2013–2015 | 2.0L turbocharged inline-4 gasoline | Premium / Premium Plus; sedan; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi allroad | 2013–2016 | 2.0L turbocharged inline-4 flex fuel | Premium / Premium Plus / Prestige; wagon; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Audi Q3 | 2015–2018 | 2.0L turbocharged inline-4 gasoline | Premium / Premium Plus / Prestige; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or other displacement implied. |
| Volkswagen Beetle | 2012–2013 | 2.0L turbocharged gasoline inline-4 | Turbo / R-Line; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Volkswagen CC | 2009–2017 | 2.0L turbocharged gasoline inline-4 | 2.0T trims only; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Volkswagen Eos | 2007–2016 | 2.0L turbocharged gasoline inline-4 | 2.0T trims only; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Volkswagen Golf R | 2012–2013 | 2.0L turbocharged gasoline inline-4 | Base; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Volkswagen GTI | 2006–2014 | 2.0L turbocharged gasoline inline-4 | Base / Fahrenheit / Driver’s Edition / Wolfsburg Edition where offered; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Volkswagen Passat | 2006–2010 | 2.0L turbocharged gasoline inline-4 | 2.0T trims only; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Volkswagen Tiguan | 2009–2017 | 2.0L turbocharged gasoline inline-4 | S / SE / SEL / R-Line / Sport / Wolfsburg where offered; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Volkswagen Tiguan Limited | 2017–2018 | 2.0L turbocharged gasoline inline-4 | Base; Verify VIN-specific installation | Listed 2.0T applications only; verify VIN and installed part. No diesel or 2.5L application implied. |
| Audi TT | 2008–2009 | 2.0L turbocharged gasoline inline-four | 8J; front-wheel-drive Coupe / Roadster; Match installed 2.0T oil return line | Turbocharger oil return-line seal at matching original flange only; confirm installed line and gasket number. Excludes other engines. |
| Audi TT | 2010–2014 | 2.0L turbocharged gasoline inline-four | 8J; quattro Coupe / Roadster; Match installed 2.0T oil return line | Turbocharger oil return-line seal at matching original flange only; confirm installed line and gasket number. Excludes other engines. |
| Audi TTS | 2009–2014 | 2.0L turbocharged gasoline inline-four | 8J; quattro Coupe / Roadster; Match installed 2.0T oil return line | Turbocharger oil return-line seal at matching original flange only; confirm installed line and gasket number. Excludes other engines. |
| Volkswagen Jetta GLI | 2013 | 2.0L turbocharged gasoline inline-four | Mk6; GLI; CBFA engine; 6-speed manual 02Q; front-wheel drive | Turbocharger oil return-line seal at matching original flange only; confirm installed line and gasket number. Excludes other engines. |
Verify the VIN and installed part before ordering. The table covers confirmed applications; other engines and model variants require separate verification. Trim names apply only in the years they were offered.
