OVERVIEW
The 06H-906-517-AE Genuine VW/Audi vapor canister purge valve controls the flow of stored fuel vapor from the evaporative-emissions system into the engine intake. The engine control module operates the solenoid to meter that flow when operating conditions permit. A valve that leaks or sticks can disrupt the intended purge flow and affect idle quality or starting.
Technical details
- OEM part number: 06H-906-517-AE / 06H906517AE.
- Function: electrically controlled EVAP canister purge solenoid, commonly identified as the N80 purge valve.

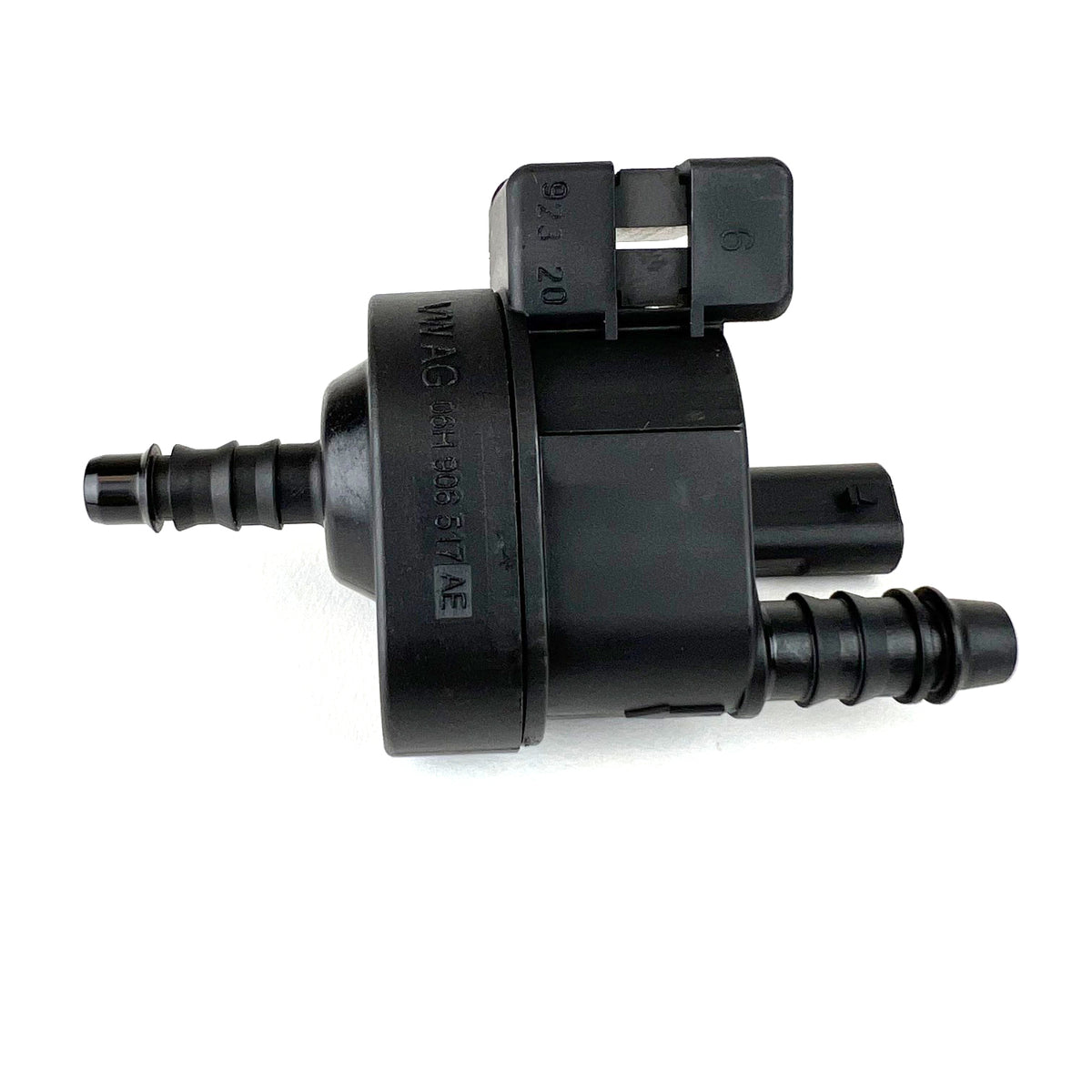

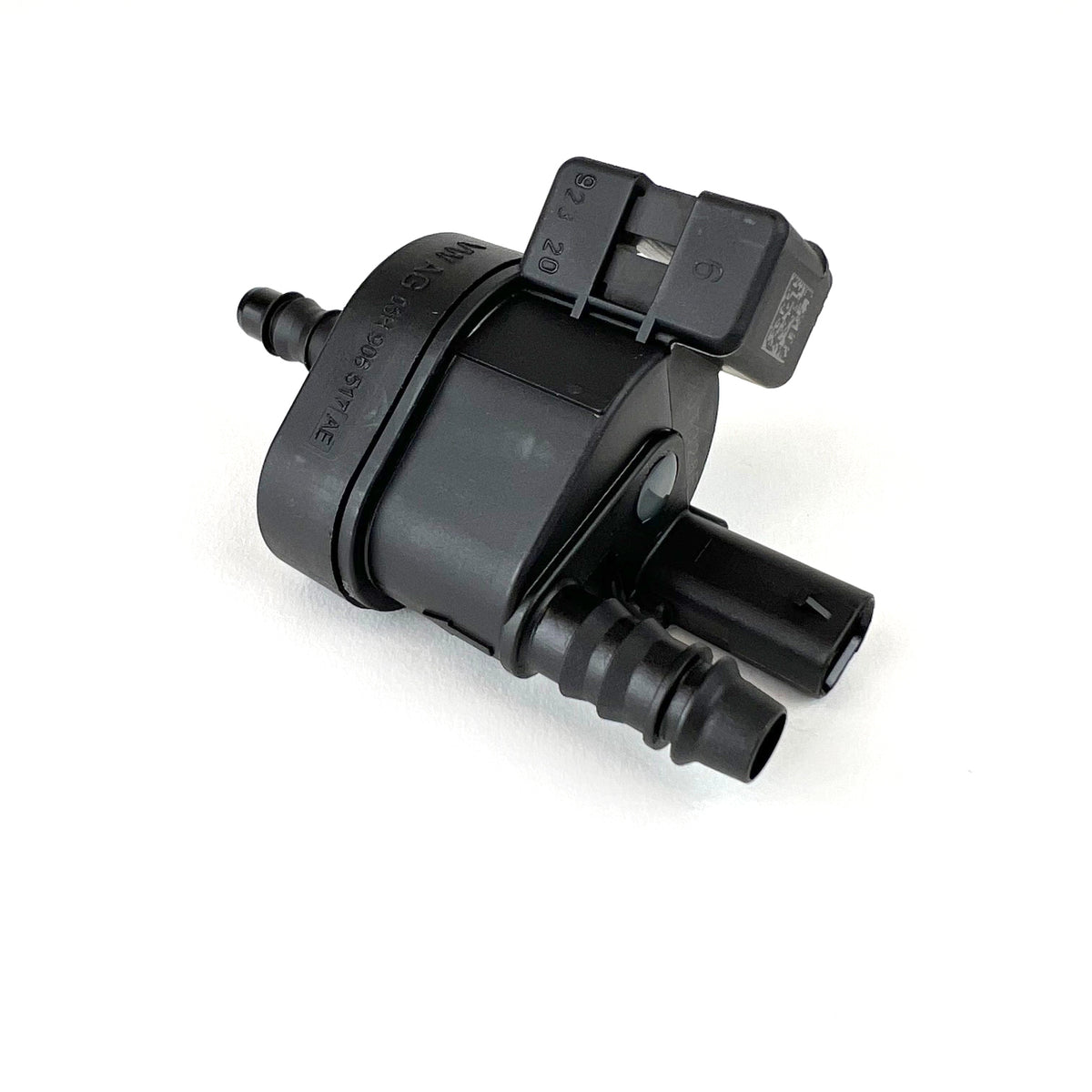

- Connections: two vapor-hose ports and an electrical connector, shown in the source photos. Match the existing connector and hose routing.
- Catalog replacements: 06H-906-517-K and 06H-906-517-T; verify the applicable replacement against the vehicle VIN.
- Quantity: one new valve. Hoses, clamps, wiring and the charcoal canister are separate.
Common reasons to replace
Replace a valve that fails the prescribed leak, flow or electrical tests, sticks open or closed, or has a cracked body or broken hose connection. An internal leak can allow vapor flow when the valve should be closed. A valve that will not open when commanded can prevent the intended canister purge.
Possible complaints include an EVAP fault, inconsistent idle, or difficult starting after refueling. Similar symptoms can result from damaged hoses, electrical faults, a leaking fuel cap or other EVAP components. Read stored faults and test the system before treating a purge valve as the confirmed repair. An audible click alone does not establish correct sealing or flow.
Service notes
Inspect the connector, wiring and vapor hoses before fitting the new valve. Preserve the specified flow direction and hose routing, secure the connections using the correct fittings, and run the relevant diagnostic checks after installation. Do not substitute a different valve solely because its hose ports appear similar.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Arteon | 2019–2021 | 2.0L turbocharged gasoline inline-4 | SE / SEL / SEL Premium and applicable R-Line trims; Verify VIN-specific installation | Match installed valve, hose arrangement and VIN; only listed gasoline applications. |
| Volkswagen Golf R | 2015–2019 | 2.0L turbocharged gasoline inline-4 | Base; Verify VIN-specific installation | Match installed valve, hose arrangement and VIN; only listed gasoline applications. |
| Volkswagen GTI | 2015–2021 | 2.0L turbocharged gasoline inline-4 | S / SE / Autobahn; Sport or Rabbit Edition where offered; Verify VIN-specific installation | Match installed valve, hose arrangement and VIN; only listed gasoline applications. |
| Volkswagen Golf Alltrack | 2017–2019 | 1.8L turbocharged gasoline inline-four | S; 4Motion wagon; Match VIN-specific valve and hose configuration | Specified engine, body and trim only; confirm original valve number, hose routing and connector before ordering. |
| Volkswagen Golf | 2015–2018 | 1.8L turbocharged gasoline inline-four | S hatchback; Match VIN-specific valve and hose configuration | Specified engine, body and trim only; confirm original valve number, hose routing and connector before ordering. |
| Audi A3 | 2015–2019 | 2.0L turbocharged gasoline inline-four | 8V; Premium quattro Cabriolet; Match VIN-specific valve and hose configuration | Specified engine, body and trim only; confirm original valve number, hose routing and connector before ordering. |
Verify VIN, installed part number and hose arrangement before ordering. The table covers the confirmed applications; other engine and platform variants require separate part verification.
