OVERVIEW
The 06K-109-467-K Genuine VW/Audi upper timing chain tensioner maintains tension on the matching camshaft timing-chain drive. Oil pressure helps the tensioner act on the chain guide so the timing drive stays controlled as the engine operates. Correct tension supports the intended relationship between the crankshaft and camshaft.
Technical details
- OEM number: 06K-109-467-K / 06K109467K.
- Catalog replacements: 06H-109-467-N, 06H-109-467-T and 06H-109-467-AB; verify the correct replacement against the VIN and engine code.
- Function: upper camshaft timing-chain tensioner for matching chain-driven 2.0T TSI applications.

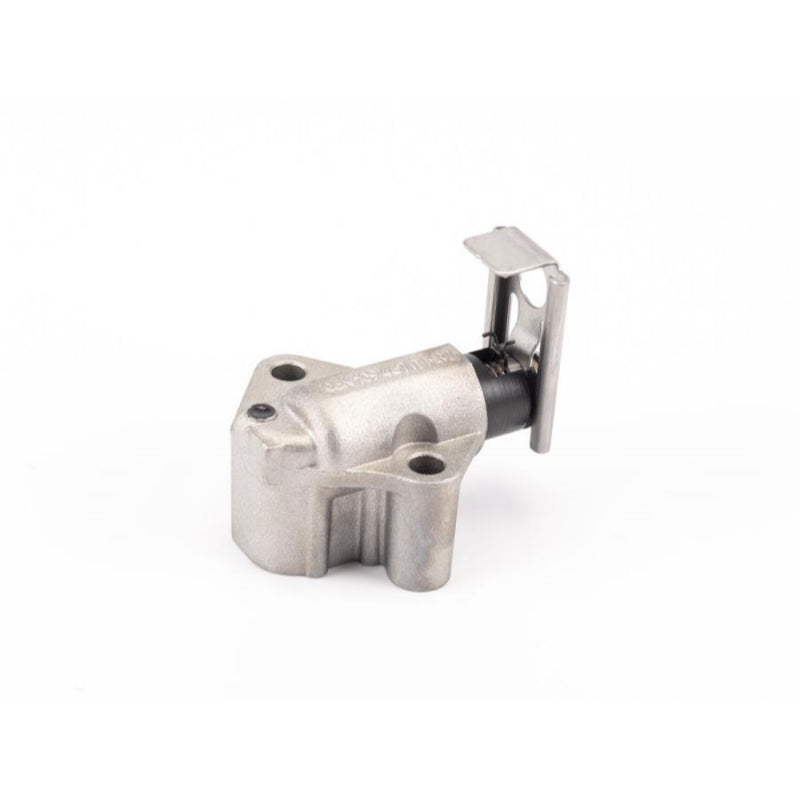

- Visible configuration: tensioner housing, two mounting openings, extended plunger and retaining clip shown in the source photo.
- Quantity: one tensioner. Chain, guides, covers, seals and mounting bolts are separate.
Common reasons to replace
Replace a tensioner that fails the vehicle-specific inspection, no longer maintains the required chain control, or is identified for replacement during a properly diagnosed timing-drive repair. Inspect the tensioner together with the chain and guides; wear elsewhere in the drive may require additional parts.
A timing-area rattle or camshaft/crankshaft correlation fault warrants diagnosis. Noise can have other sources, and a correlation fault can also involve sensors, wiring or other timing components. Check the timing drive and lubrication system before deciding that a tensioner alone will resolve the complaint. Replacing this component does not reverse existing timing damage or restore a worn chain.
Service notes
Follow the exact engine procedure for setting and securing timing, removing the old tensioner, installing the replacement and releasing its retaining mechanism. Verify the chain, guides, oil supply and mounting hardware during the repair. Incorrect timing or tensioner installation can cause serious engine damage; confirm timing and complete the specified checks before starting the engine.
Some model years include different engine families. Match the engine code and production date rather than selecting this tensioner solely from a 2.0T badge or model year.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Beetle | 2012–2013 | 2.0L TSI turbocharged gasoline inline-4 | Turbo / R-Line; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Volkswagen CC | 2009–2017 | 2.0L TSI turbocharged gasoline inline-4 | 2.0T trims only; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Volkswagen Eos | 2009–2016 | 2.0L TSI turbocharged gasoline inline-4 | 2.0T trims only; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Volkswagen GTI | 2009–2014 | 2.0L TSI turbocharged gasoline inline-4 | Base / Driver’s Edition / Wolfsburg where offered; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Volkswagen Jetta | 2008–2010; 2012–2013 | 2.0L TSI turbocharged gasoline inline-4 | GLI / SEL / Wolfsburg where offered; chain-driven engine only; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Volkswagen Passat | 2008–2010 | 2.0L TSI turbocharged gasoline inline-4 | Turbo / Komfort / Lux; chain-driven engine only; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Volkswagen Tiguan | 2009–2017 | 2.0L TSI turbocharged gasoline inline-4 | 2.0T trims only; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Volkswagen Tiguan Limited | 2018 | 2.0L TSI turbocharged gasoline inline-4 | Base; Verify VIN-specific installation | Matching chain-driven engine only; check engine code, production date and installed tensioner. Excludes belt-driven 2.0T FSI engines and diesel. |
| Audi A3 | 2009–2013 | 2.0L TFSI chain-driven gasoline inline-four | 8P; gasoline Sportback; CCTA / CBFA engine only; Match original engine timing assembly | Timing-chain engine and matching original tensioner installation only; confirm engine code, production date and VIN. Excludes belt-driven FSI/TTS engines, diesel and V6/V8. |
| Audi A4 | 2009–2015 | 2.0L TFSI chain-driven gasoline inline-four | B8/B8.5; sedan; quattro Avant also 2009–2012; Match original engine timing assembly | Timing-chain engine and matching original tensioner installation only; confirm engine code, production date and VIN. Excludes belt-driven FSI/TTS engines, diesel and V6/V8. |
| Audi A5 | 2010–2014 | 2.0L TFSI chain-driven gasoline inline-four | B8/B8.5; 2.0T Coupe / Cabriolet; Match original engine timing assembly | Timing-chain engine and matching original tensioner installation only; confirm engine code, production date and VIN. Excludes belt-driven FSI/TTS engines, diesel and V6/V8. |
| Audi A6 | 2012–2015 | 2.0L TFSI chain-driven gasoline inline-four | C7; 2.0T sedan; Match original engine timing assembly | Timing-chain engine and matching original tensioner installation only; confirm engine code, production date and VIN. Excludes belt-driven FSI/TTS engines, diesel and V6/V8. |
| Audi Q5 | 2011–2015 | 2.0L TFSI chain-driven gasoline inline-four | 8R; 2.0T SUV; Match original engine timing assembly | Timing-chain engine and matching original tensioner installation only; confirm engine code, production date and VIN. Excludes belt-driven FSI/TTS engines, diesel and V6/V8. |
| Audi TT | 2009–2015 | 2.0L TFSI chain-driven gasoline inline-four | 8J; quattro Coupe / Roadster; chain-driven engine only; Match original engine timing assembly | Timing-chain engine and matching original tensioner installation only; confirm engine code, production date and VIN. Excludes belt-driven FSI/TTS engines, diesel and V6/V8. |
| Audi allroad | 2013–2015 | 2.0L TFSI chain-driven gasoline inline-four | B8; quattro wagon; Match original engine timing assembly | Timing-chain engine and matching original tensioner installation only; confirm engine code, production date and VIN. Excludes belt-driven FSI/TTS engines, diesel and V6/V8. |
Confirm VIN, engine code and installed tensioner. The table covers confirmed applications; other model and engine variants require separate part verification.
