Genuine VW/Audi

Upper Intake Manifold Gasket

Upper Intake Manifold Gasket

SKU:079-129-717-D

Regular price $14.94 USD
Regular price $14.94 USD Sale price $14.94 USD
Sale Sold out
Shipping calculated at checkout.
In stock
Quantity
View full details

OVERVIEW

Genuine VW/Audi 079-129-717-D seals the joint between the supercharger assembly and the lower intake manifold on the applications listed below. Correct sealing at this joint keeps intake air within its intended path and helps maintain consistent engine operation.

Technical details

  • Original equipment part number: 079-129-717-D.
  • Application position: upper manifold seal at the supercharger outlet / lower intake manifold joint.
  • Sold individually. The listed supercharged V6 applications use six port seals at this sealing level; this listing supplies one gasket.
  • The upper and lower intake gaskets occupy different joints. Match the full part number and sealing position before ordering.

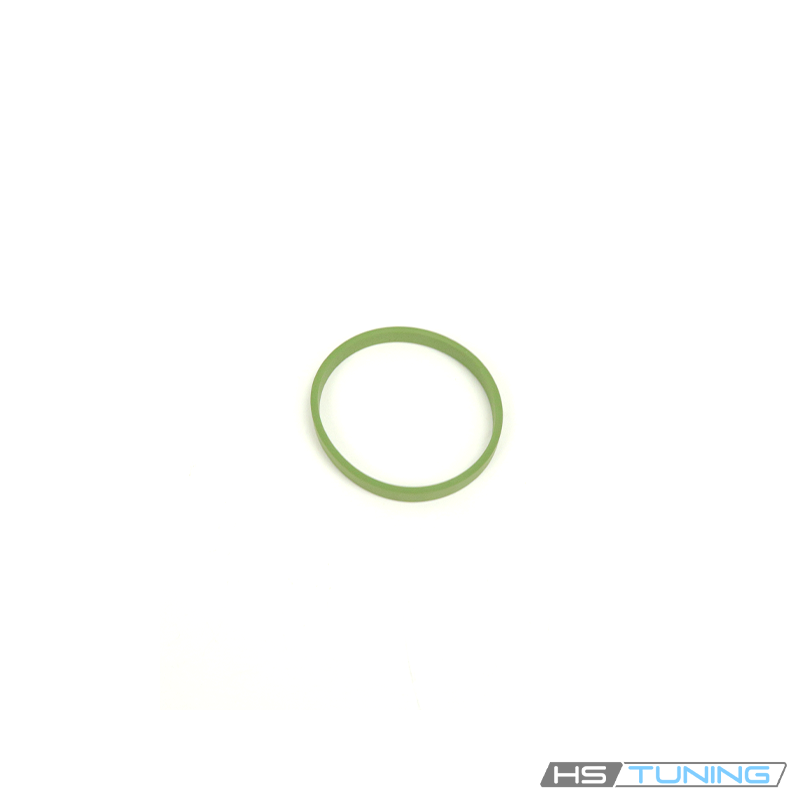

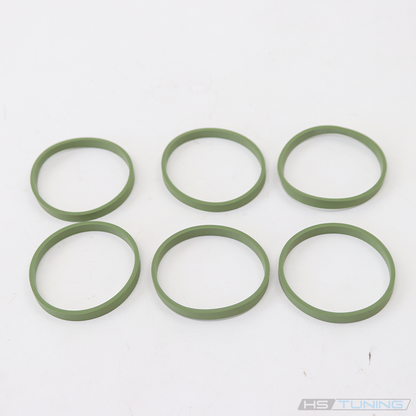

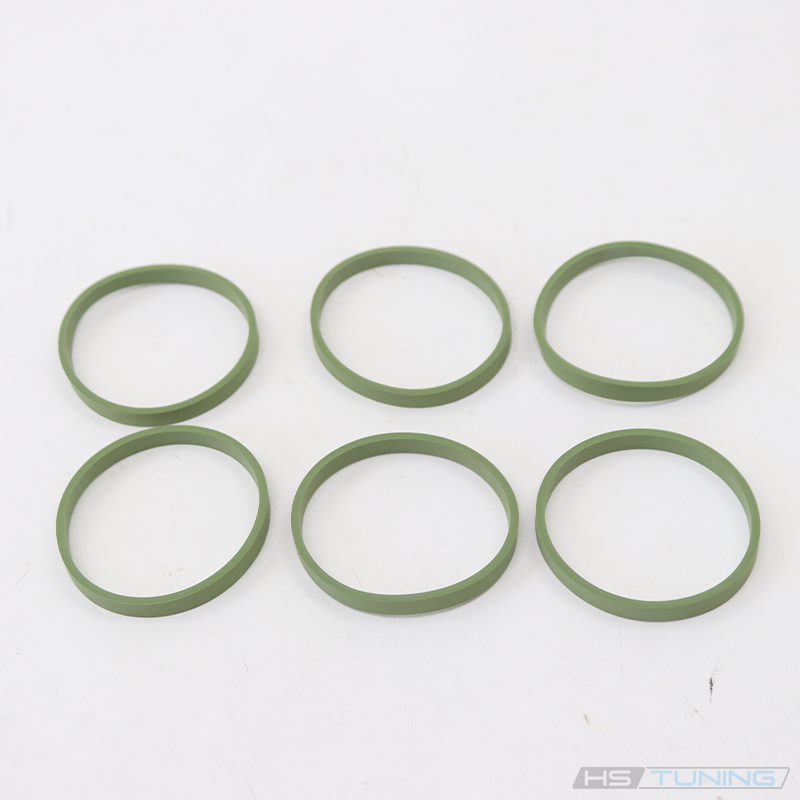

  • Photographs showing multiple seals are reference images; they do not change the quantity supplied.

Common reasons to replace

Replace a seal that is cut, torn, flattened, hardened or distorted, or one that no longer seats evenly in its groove. Renew the applicable seals when the workshop procedure requires replacement after disassembly. On supercharged 3.0T engines, work on components underneath the supercharger may expose these intake joints; the required gasket selection depends on which assemblies are removed.

Leakage at an intake joint can contribute to unstable idle, mixture-correction faults and poor drivability. These symptoms can also result from other faults, so inspect and test the intake system before selecting parts. A damaged gasket cannot correct a cracked housing, a distorted sealing surface or an unrelated fuel or ignition problem.

Installation and service notes

Clean the mating surfaces and inspect the gasket groove without allowing debris into the intake ports. Confirm that the seal fits its intended recess, lies evenly and is not rolled or pinched as the assembly is lowered into place. Follow the application-specific fastening sequence and torque values; confirm any additional seals, fasteners and service requirements in the workshop procedure.

For the supercharged V6 applications, inspect the complete set of six seals at the disturbed joint. Removing the supercharger does not automatically establish that the lower manifold-to-head gaskets must also be replaced; inspect the joints actually disturbed. The manifold, supercharger and other repair components are not included.

Fitment

Vehicle Model years Engine Configuration Application restrictions
Audi A6 2009–2011 3.0T TFSI (CCAA) ; Not specified by source Engine code must match; verify VIN and installed intake manifold sealing arrangement
Audi S4 2010–2012 3.0T TFSI (CCBA) ; Not specified by source Engine code must match; verify VIN and installed intake manifold sealing arrangement
Audi S5 2010–2012 3.0T TFSI (CCBA) Cabriolet; Not specified by source Engine code must match; verify VIN and installed intake manifold sealing arrangement
Audi A6 2012 3.0T TFSI (CGXB) ; Not specified by source Engine code must match; verify VIN and installed intake manifold sealing arrangement
Audi A7 2012 3.0T TFSI (CGXB) ; Not specified by source Engine code must match; verify VIN and installed intake manifold sealing arrangement
Audi Q7 2011–2012 3.0T TFSI (CJWB / CJWC / CJWE) ; Not specified by source Engine code must match; verify VIN and installed intake manifold sealing arrangement
Audi A6 2013–2014 3.0T TFSI ; Not specified by source 3.0L supercharged gasoline engine; verify VIN and installed intake manifold sealing arrangement
Audi A7 2013–2014 3.0T TFSI ; Not specified by source 3.0L supercharged gasoline engine; verify VIN and installed intake manifold sealing arrangement
Audi S4 2013–2014 3.0T TFSI ; Not specified by source 3.0L supercharged gasoline engine; verify VIN and installed intake manifold sealing arrangement
Audi S5 Coupe 2013–2014 3.0T TFSI ; Not specified by source 3.0L supercharged gasoline engine; verify VIN and installed intake manifold sealing arrangement
Audi S5 Cabriolet 2013–2014 3.0T TFSI ; Not specified by source 3.0L supercharged gasoline engine; verify VIN and installed intake manifold sealing arrangement
Audi Q5 2013–2014 3.0T TFSI ; Not specified by source 3.0L supercharged gasoline engine; verify VIN and installed intake manifold sealing arrangement
Audi Q7 2013–2014 3.0T TFSI ; Not specified by source 3.0L supercharged gasoline engine; verify VIN and installed intake manifold sealing arrangement
Audi SQ5 2014–2017 3.0L supercharged TFSI V6 B8 / B8.5 quattro; Automatic Supercharged gasoline engine only; excludes later turbocharged SQ5. Confirm upper supercharger-to-lower-manifold sealing location by VIN.

Confirm the complete part number, VIN, engine and sealing location before ordering. Body style and engine restrictions in the table apply.
