OVERVIEW
Factory magnet for the transmission oil pan

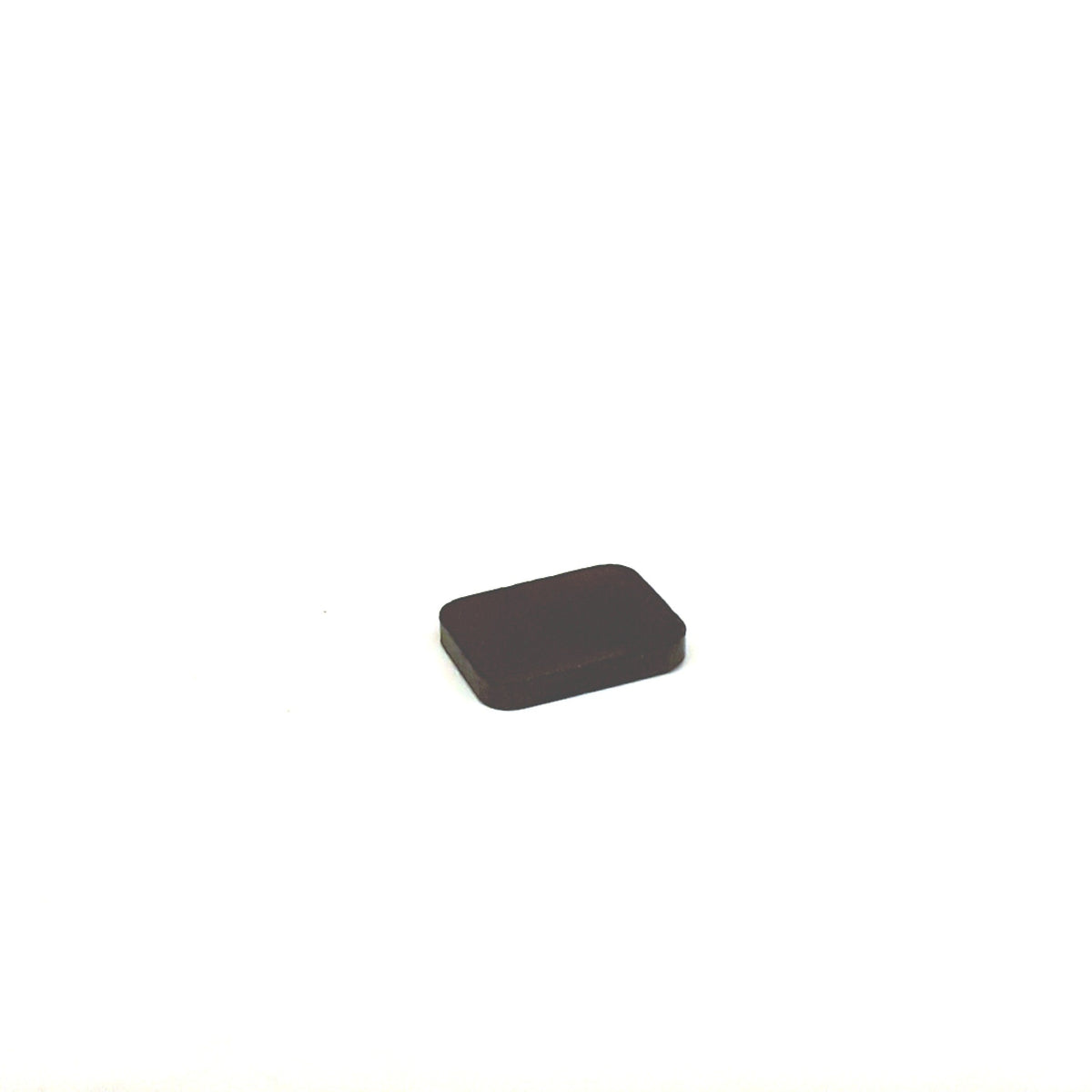

Genuine VW/Audi 09D-321-368 sits at the designated location inside the automatic transmission oil pan. It collects magnetically attracted wear particles carried by the fluid during normal operation.
The flat rectangular form fits the assigned pan location without changing the original arrangement. This listing supplies one dry magnet, separate from the transmission pan, filter, gasket and fluid.
Technical details
- Complete factory number: 09D-321-368.
- Factory specification: factory transmission oil pan magnet, number 09D-321-368.
- Design: compact flat rectangular magnetic insert.
- Quantity supplied: one individual transmission pan magnet.
A magnet attracts ferrous particles; it does not replace the filter or remove all types of contamination. The required quantity depends on the transmission pan: some listed arrangements use two magnets, while the specified Touareg 09D pan uses four. Check the original service layout and order the quantity required for the repair.
Common reasons to replace
- A magnet was lost or omitted during previous pan service.
- The original magnet is cracked, chipped or physically damaged.
- A replacement pan requires the original assigned magnet arrangement to be restored.
A serviceable magnet may be cleaned and reused when the factory repair instructions permit it. Inspect the collected material during service: abnormal chips or excessive debris require transmission diagnosis rather than replacement of the magnet alone.
Vehicle fitment
Use the transmission and original pan arrangement below to confirm compatibility. This is not a universal magnet for every transmission fitted to these models.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2015 | 1.8L turbo gasoline | FWD, 6-speed automatic | Original 09G automatic oil pan with assigned 09D-321-368 magnets; not DSG or manual. |
| Audi Q3 | 2015–2018 | 2.0L turbo gasoline | 8U SUV; FWD or quattro; six-speed automatic | Original 09M transmission pan with assigned magnets. Does not establish compatibility with the later F3 eight-speed transmission. |
| Volkswagen Tiguan | 2011, 2015 | 2.0L turbo gasoline | 5N SUV; FWD or 4Motion; six-speed automatic | Original 09M automatic pan with assigned magnet arrangement; excludes manual gearboxes and later eight-speed models. |
| Audi TT | 2005 | 1.8L turbocharged gasoline | 8N Coupe or Roadster; FWD; six-speed torque-converter automatic | G1A / 09G conventional automatic pan only. Excludes the 3.2L quattro DSG and manual transmissions. |
| Volkswagen Passat | 2008 | 2.0L turbocharged gasoline | B6 sedan or wagon; FWD; six-speed conventional automatic | Original 09G transmission pan and assigned magnets only; excludes manual, DSG and 3.6L configurations. |
| Volkswagen Touareg | 2009 | 3.6L VR6 gasoline | 7L SUV; 4Motion; six-speed 09D automatic | Original 09D321361A-type transmission pan with assigned magnet seats. Factory catalog specifies four magnets for this arrangement; this listing supplies one. |
| Volkswagen Touareg | 2009 | 3.0L V6 TDI diesel | 7L SUV; 4Motion; six-speed 09D automatic | Original 09D321361A-type transmission pan with assigned magnet seats. Factory catalog specifies four magnets for this arrangement; this listing supplies one. |
Installation guidance
Follow the vehicle-specific automatic transmission pan service procedure. Clean and inspect the pan and magnet seats, fit the correct number of magnets at the specified locations and keep debris out of the open transmission.
Use the required pan seals, fasteners and approved fluid, then perform the specified temperature-dependent level check. Confirm that the serviced pan is dry and the transmission operates correctly.
Ordering information
One individual Genuine VW/Audi 09D-321-368 magnet is supplied. Order additional magnets separately to match the quantity specified for the original pan.
