OVERVIEW

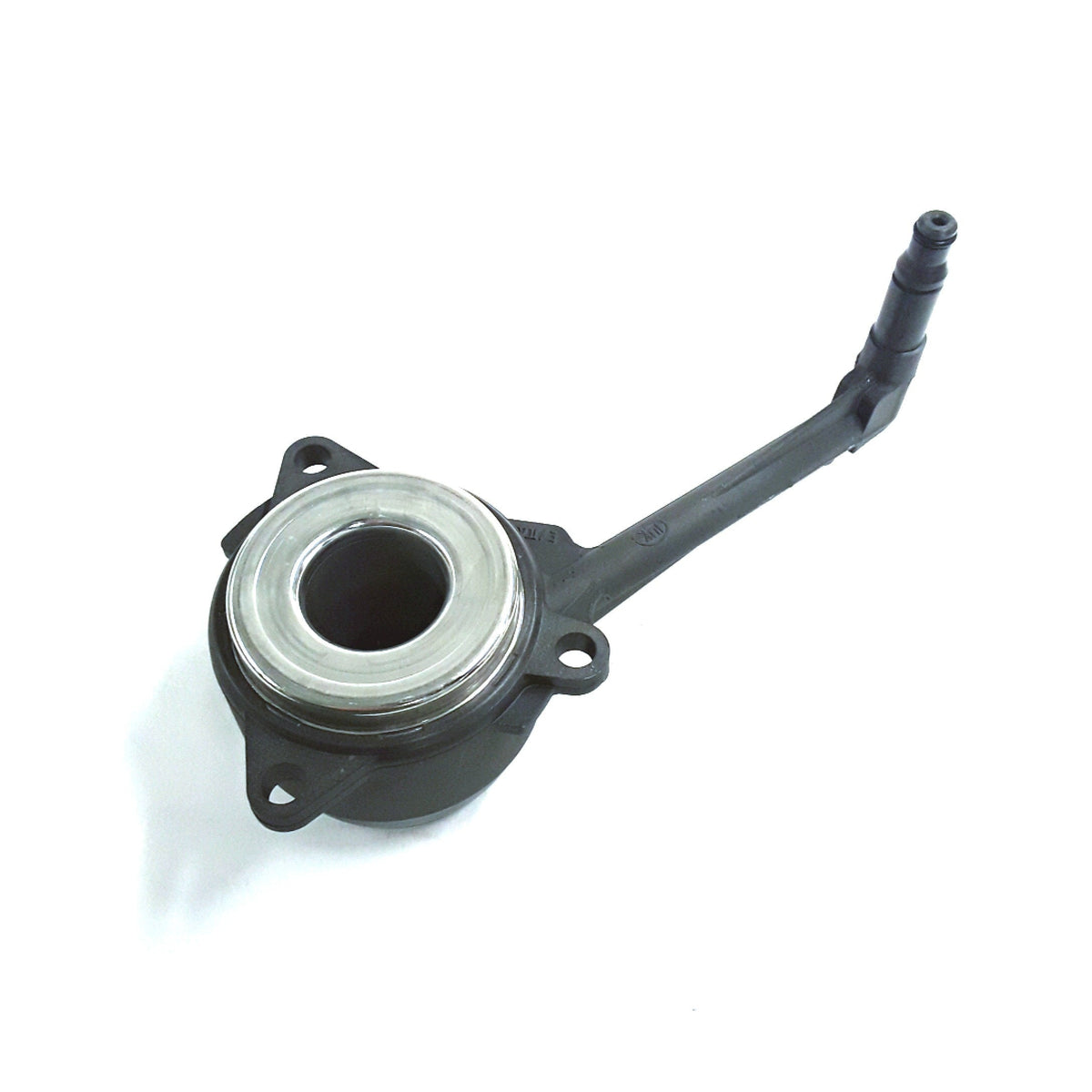

Genuine VW/Audi 0A5-141-671-F is a hydraulic clutch slave-cylinder assembly with an integrated release bearing. At the matching factory release arrangement, hydraulic pressure from the clutch master cylinder operates the slave assembly, and the release bearing acts on the pressure plate to disengage the clutch.
Technical details and what is included
- Factory part number: 0A5-141-671-F / 0A5141671F.
- Assembly type: hydraulic clutch slave cylinder with integrated release bearing.
- Application: matching transverse six-speed manual clutch release arrangements identified below.
- Quantity supplied: one slave-cylinder/release-bearing assembly.
- Clutch, flywheel, master cylinder, hydraulic line, fluid and separately specified mounting parts are not included.
Confirm the gearbox code, original mounting profile, hydraulic connection and clutch release geometry before ordering. This is not a universal bearing for every six-speed gearbox. Modified clutch systems must explicitly specify compatibility with this original release arrangement. DSG and other automatic transmissions do not use this manual-clutch assembly.
Common reasons to replace
- A diagnosed leak is traced to the slave-cylinder assembly.
- Inspection identifies damage or wear at the release bearing.
- A diagnosed clutch-release fault requires renewal of the slave or bearing.
- The original assembly is damaged, or the prescribed clutch service calls for its replacement.
Clutch pedal, release and noise symptoms can also result from the master cylinder, hydraulic line, clutch, flywheel or other components. Diagnose the actual fault before selecting parts. Replacing this assembly alone does not correct a worn clutch disc, damaged pressure plate or separate hydraulic leak.
Vehicle fitment
The table identifies confirmed compatible six-speed manual configurations. Verify the original gearbox and release-system arrangement; automatic and five-speed versions of the same model are excluded.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi TT | 2001–2006 | 1.8L turbocharged gasoline inline-four; 225 hp | 8N coupe or roadster; quattro; 02M six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Audi A3 | 2006–2008 | 2.0L TFSI gasoline inline-four | 8P Sportback; front-wheel drive; 02Q six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen GTI | 2002–2005 | 2.8L 24-valve gasoline VR6 | Mk4 hatchback; front-wheel drive; 02M six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen GTI | 2002–2003 | 1.8L turbocharged gasoline inline-four | Mk4 hatchback; 337 (2002) or 20th Anniversary (2003); front-wheel drive; 02M six-speed manual only; five-speed models excluded | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen Jetta GLI | 2002–2004 | 2.8L 24-valve gasoline VR6 | Mk4 sedan; front-wheel drive; 02M six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen Jetta GLI | 2004–2005 | 1.8L turbocharged gasoline inline-four | Mk4 sedan; front-wheel drive; early 2005 Mk4 body only; 02M six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen R32 | 2004 | 3.2L gasoline VR6 | Mk4 hatchback; 4Motion; 02M six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen GTI | 2006–2014 | 2.0L turbocharged gasoline inline-four; FSI/TSI as originally fitted | Mk5/Mk6 hatchback; front-wheel drive; 02Q six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen Jetta GLI | 2006–2009; 2012–2018 | 2.0L turbocharged gasoline inline-four; FSI/TSI as originally fitted | Mk5/Mk6 sedan; front-wheel drive; 02Q six-speed manual only | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen Golf R | 2012–2013 | 2.0L TFSI gasoline inline-four | Mk6 hatchback; 4Motion; Six-speed manual only; matching factory release-system geometry | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen CC | 2009–2011 | 2.0L TSI gasoline inline-four | Sedan; front-wheel drive; Six-speed manual only; matching 02Q release system | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
| Volkswagen Tiguan | 2009–2011 | 2.0L TSI gasoline inline-four | 5N SUV; front-wheel drive; Six-speed manual only; matching 02Q release system | Matching factory 02M/02Q-style hydraulic clutch release arrangement assigned or explicitly compatible with 0A5141671F. Confirm gearbox code, original bearing/slave mounting and hydraulic inlet profile, and clutch release geometry. DSG, Tiptronic, conventional automatic and five-speed manual applications are excluded. Aftermarket clutches must explicitly accept this original release arrangement. One slave-cylinder/release-bearing assembly supplied; clutch, flywheel, master cylinder, hydraulic line and fluid are separate. |
Installation and service guidance
Follow the factory transmission and clutch-release service procedure for the exact gearbox. Support the vehicle and drivetrain using the prescribed equipment. Inspect the clutch, flywheel, hydraulic connection and mounting surfaces while the assembly is accessible.
Fit the slave-cylinder/release-bearing assembly using the prescribed original mounting and hydraulic connection procedure. Renew separately specified seals or single-use hardware where required. Follow the factory handling instructions for the concentric slave cylinder; do not operate the release system while dismantled unless the service procedure specifically permits it.
Use the specified hydraulic fluid and the factory bleeding procedure, then check the serviced connection for leaks and verify clutch operation. Complete the prescribed gearbox and clutch functional checks after reassembly. Consult the exact vehicle and gearbox repair information for tightening values and assembly steps.
