OVERVIEW
Factory wiring for the matching alternator installation
Genuine VW/Audi 1C0-971-349-AG restores the assigned alternator wiring connection in the matching New Beetle installation. Correct terminals, connector engagement and cable routing support dependable charging-system operation.

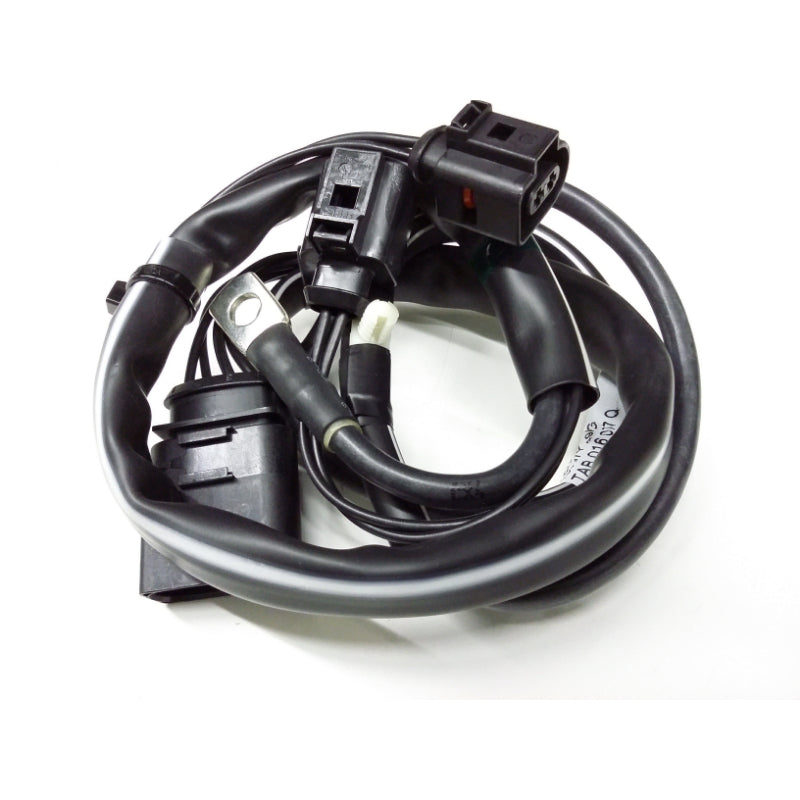

The assembly follows the original wiring layout shown in the product photo. The AG suffix, engine code and transmission are important because other New Beetle engines and gearbox configurations use different harnesses.
Technical details
- Complete factory number: 1C0-971-349-AG.
- Factory specification: alternator wiring harness for AZG / BEV 2.0L applications with the assigned 4-speed automatic or 5-speed manual.
- Design: insulated wiring assembly with factory-style connectors, terminal and routing protection.
- Quantity supplied: one individual alternator wiring harness assembly; alternator, battery and vehicle main harness are separate.
Volkswagen Classic Parts lists a component weight of 0.21 kg for 1C0-971-349-AG. Its stated component dimensions are 1270 × 24 × 18 mm; these are part dimensions, not a shipping carton specification. Route the harness in its original installed shape rather than stretching it to its full length.
Common reasons to replace
- The original conductor or terminal shows heat damage.
- Insulation, connector locks or wiring protection are cracked or broken.
- Electrical testing confirms an intermittent or high-resistance connection within the harness.
Check the alternator output, battery condition, fuses and all charging connections. A battery warning lamp or low voltage does not by itself prove that the harness is faulty. Heat damage also calls for inspection of the mating terminals and the cause of excessive resistance.
Vehicle fitment
Confirm the engine code, transmission and full original harness number in the table. Model year alone is insufficient.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen New Beetle | 2001–2005 | 2.0L gasoline, AZG / BEV only | Hatchback; 4-speed automatic / 5-speed manual | Match engine code and original AG harness; excludes 1.8T, TDI, 2.5L and 6-speed automatic. |
| Volkswagen New Beetle | 2003–2005 | 2.0L gasoline, BEV only | Convertible; 4-speed automatic / 5-speed manual where equipped | Match engine code and original AG harness; not the 6-speed automatic harness. |
Installation guidance
Follow the factory battery isolation and charging-system wiring procedure. Release connectors by their locks, route the replacement through the original supports and keep the wiring clear of hot surfaces, sharp edges and moving components.
Verify secure connector engagement and terminal fastening, then perform the required charging voltage and circuit checks. Inspect repaired connections for abnormal heating after service.
Ordering information
One individual Genuine VW/Audi 1C0-971-349-AG harness is supplied. Match the original AG number and connector arrangement before ordering.
