OVERVIEW
Cover the assigned rear hub attachment with the original dust cap
1J0-501-249-C is the Genuine VW/Audi dust cap for the specified rear hub and wheel-bearing assemblies. The cap closes the original hub opening over the attachment area.
An intact, correctly seated cap helps keep dirt and moisture away from the covered hub area. The cap must match the hub's seating diameter and profile; it is distinct from the decorative center cap fitted to the wheel.
Technical details
- Complete factory number: 1J0-501-249-C.
- Factory specification: individual rear hub/wheel-bearing dust cap, complete revision C.

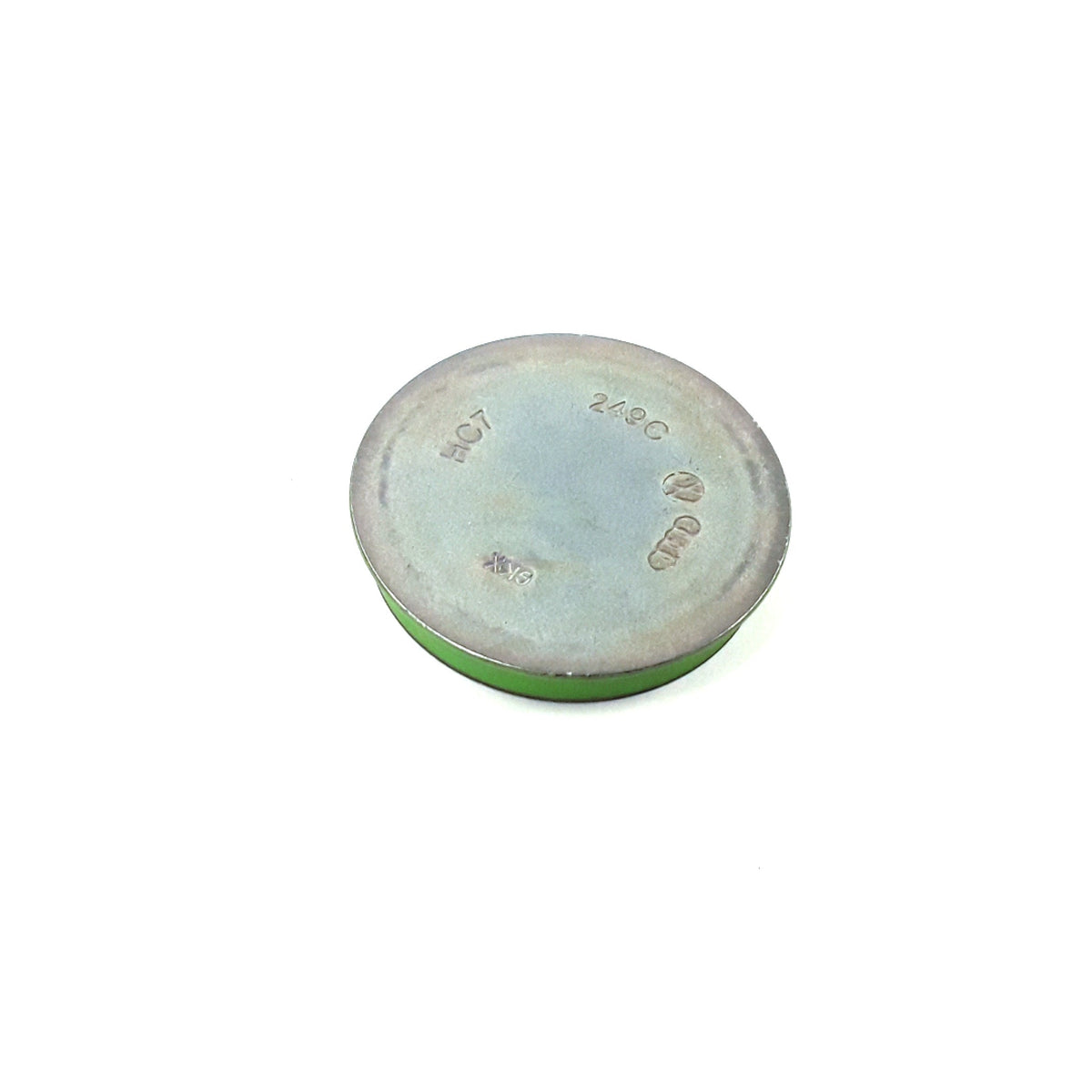

- Design: round metal cap with the original outer sealing edge shown in the photograph.
- Quantity supplied: one individual dust cap.
One cap is supplied. Hub, bearing, axle bolt, wheel and other hardware are separate. Driven rear hubs and non-driven rear hubs can use different closure arrangements.
Common reasons to replace
- The original cap is missing after hub service.
- The cap is damaged or distorted during removal.
- Corrosion or damage prevents it from seating securely.
- The repair procedure calls for replacement of the disturbed cap.
Inspect the hub opening and seating edge for damage or corrosion. Check the bearing and attachment separately. Replacing a cap does not correct bearing noise, looseness or a damaged hub.
Vehicle fitment
Use the confirmed hub configurations below and compare the original cap. Front-wheel-drive and all-wheel-drive rear assemblies can differ even when the vehicle model and year match.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen GTI | 2006–2025 | 2.0L turbocharged gasoline | Mk5, Mk6, Mk7 or Mk8 front-wheel-drive hatchback | Assigned rear hub/bearing cap only; compare original cap and hub. Not a cosmetic wheel center cap. |
| Volkswagen Golf SportWagen | 2015 | 1.8L turbocharged gasoline or 2.0L TDI | Front-wheel-drive wagon | Original non-driven rear hub cap position; match hub and complete original number. |
| Volkswagen Golf SportWagen | 2016–2018 | 1.8L turbocharged gasoline | Front-wheel-drive wagon only | Rear non-driven hub cap; excludes 4MOTION rear axle application. |
| Volkswagen Golf SportWagen | 2019 | 1.4L turbocharged gasoline | Front-wheel-drive wagon only | Rear non-driven hub cap; excludes 1.8L 4MOTION rear axle. |
Installation guidance
Follow the vehicle-specific wheel and hub access procedure. Clean the cap seat and fit the replacement squarely using the prescribed driver or method. Avoid striking the center in a way that distorts the cap or damages the bearing.
Confirm that the cap is evenly seated and secure. Complete any hub-service torque, wheel installation and road-test checks required by the original repair procedure.
Ordering information
One individual Genuine VW/Audi 1J0-501-249-C rear wheel bearing dust cap. Confirm original hub type and complete number. Hub and bearing assemblies are sold separately.
