OVERVIEW
Secure the original interior trim attachment
1J0-863-265 is the Genuine VW/Audi formed metal retaining clip used at the specified original interior trim attachment points. Its shaped spring profile holds the mating trim feature in the original mounting location.
Interior trim can become loose when a clip is bent, missing or damaged during removal. Installing the correct clip helps the trim seat properly while retaining the original attachment method and clearance.
Technical details
- Complete factory number: 1J0-863-265.
- Factory specification: factory interior trim retaining clip, complete number 1J0-863-265.

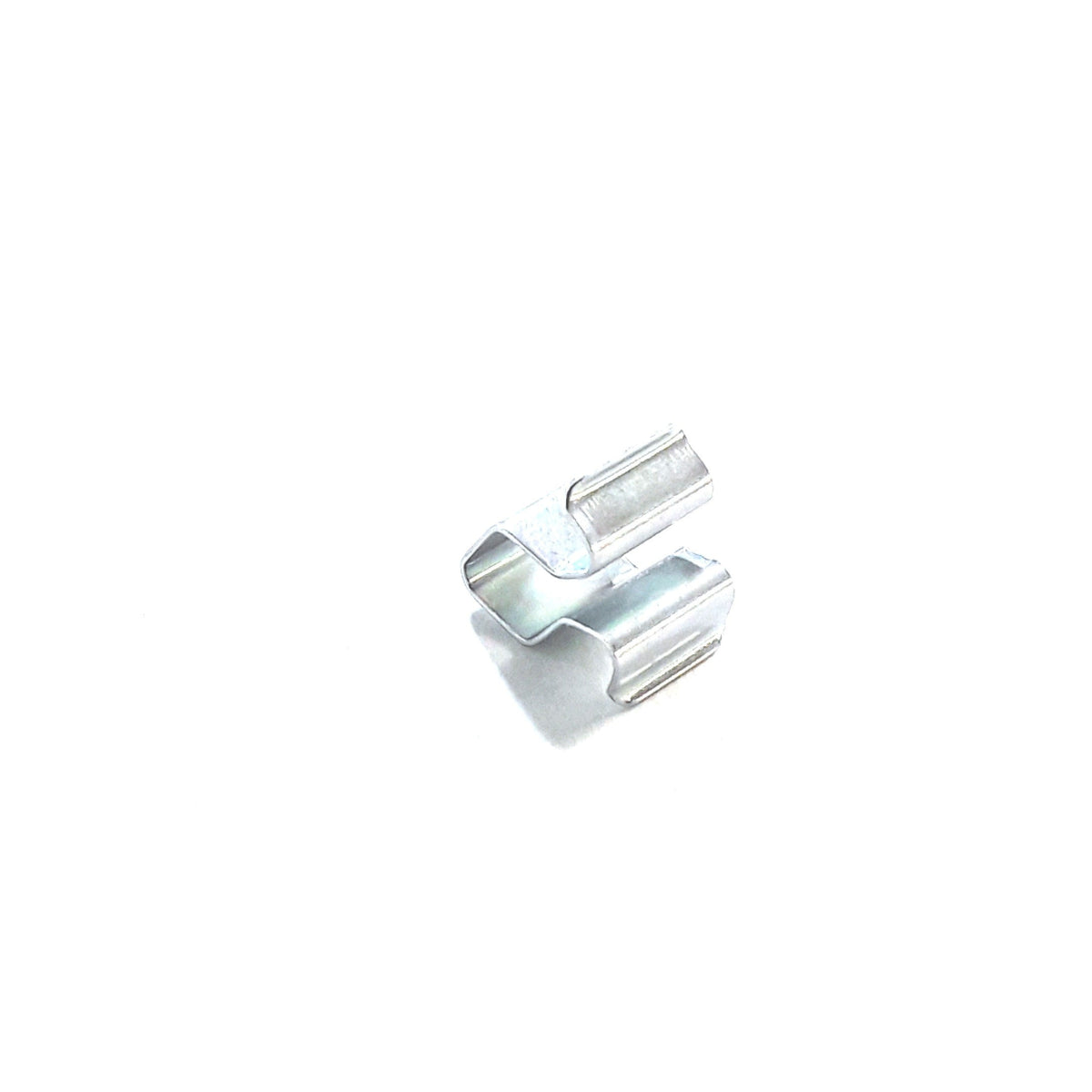

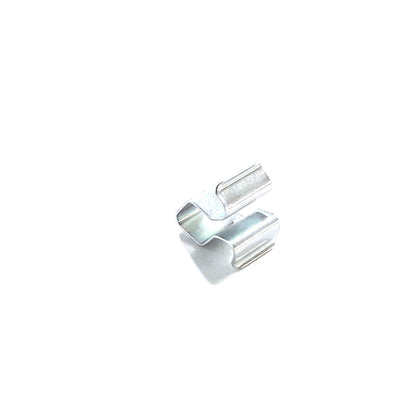

- Design: formed metal spring clip with shaped retaining channels, as pictured.
- Quantity supplied: one individual trim clip.
The listing supplies one individual clip. Scuff plates, rear-lid trim, quarter trim, grommets and other fasteners are separate. Different trim locations may use different clips on the same vehicle.
Common reasons to replace
- The original clip is lost during trim removal.
- The clip is bent and no longer grips the mating trim feature.
- The clip has corrosion or physical damage.
- The original attachment is incomplete after a previous repair.
Inspect the trim mounting tabs and body-side attachment before fitting the clip. A new clip cannot restore a broken trim tab or damaged mounting slot. Confirm the correct clip profile for the serviced position.
Vehicle fitment
Use only at the listed original trim attachment positions. Match the original clip and trim configuration; a vehicle may use several different retaining clips.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A6 Avant | 2006 | 3.2L FSI gasoline V6 | C6 quattro wagon; PR K8D | Assigned rear-lid interior trim clip position; verify original clip and trim mounting point. |
| Volkswagen Golf | 2015 | 1.8L turbocharged gasoline; 2.0L TDI | Mk7 two-door or four-door hatchback | Two-door scuff-plate clip or four-door scuff-plate retainer position as cataloged; verify trim attachment. Excludes Golf R and e-Golf in the four-door retainer position. |
| Volkswagen Golf | 2016–2018 | 1.8L turbocharged gasoline | Mk7 four-door hatchback | Assigned scuff-plate retainer position; excludes Golf R and e-Golf; match original clip. |
| Volkswagen Golf | 2021 | 1.4L turbocharged gasoline | Mk7 four-door hatchback | Assigned left or right scuff-plate retainer position; match original trim attachment. |
| Volkswagen Touareg | 2008 | 3.6L VR6 gasoline; 4.2L V8 gasoline; 5.0L V10 TDI | 7L SUV | Assigned left or right interior quarter-trim assembly clamp position; match original attachment. |
Installation guidance
Remove the trim using the prescribed trim tools and release sequence. Position the clip in the correct orientation, align the trim attachment and seat the panel evenly without forcing it.
Check that the trim is fully retained, sits flush and does not interfere with adjacent trim, wiring or moving parts. Replace other damaged fasteners disturbed during the repair.
Ordering information
One individual Genuine VW/Audi metal retaining clip. Trim panels and other mounting components are separate. Confirm original clip and location.
