OVERVIEW
Repair the original washer-fluid hose with factory tubing

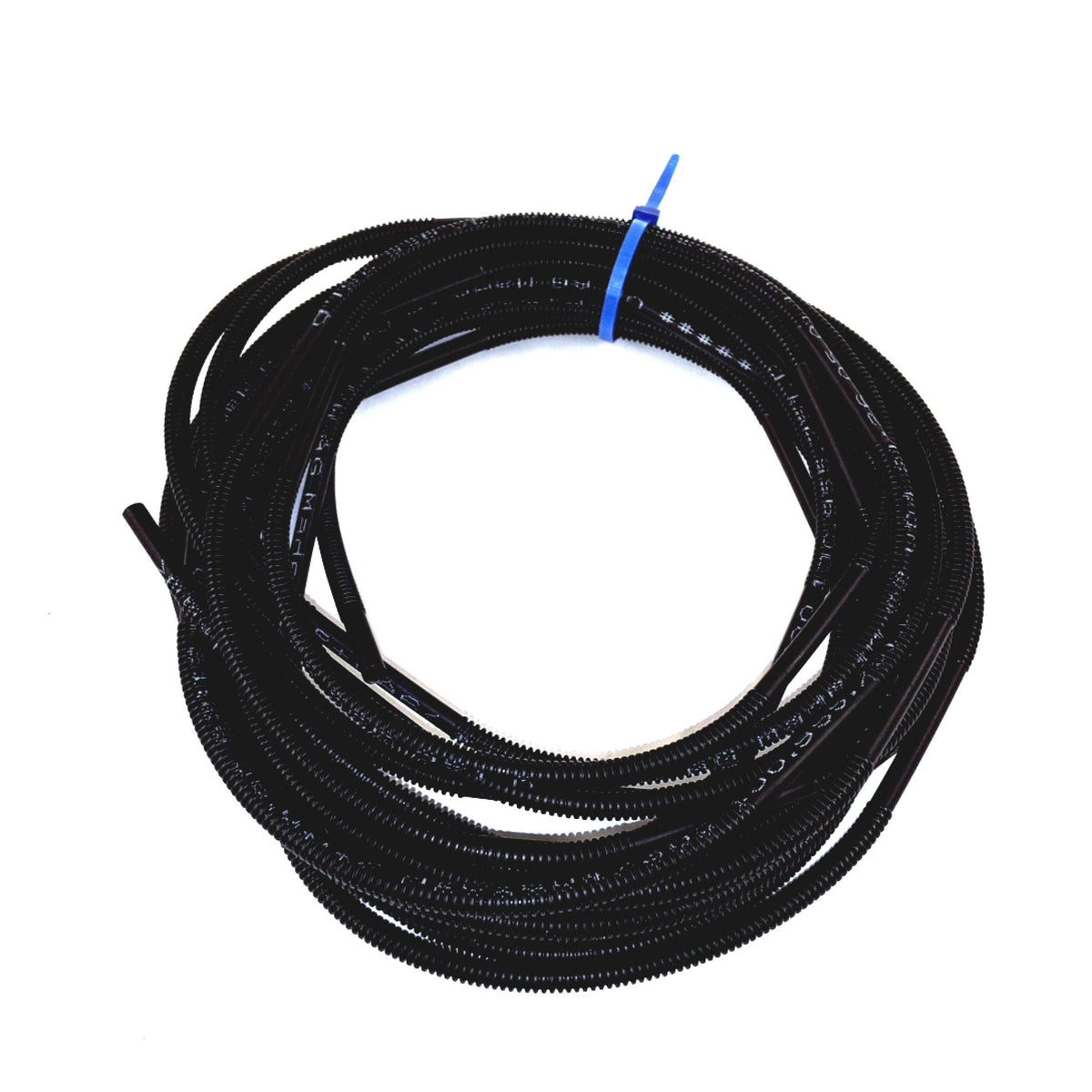

1J0-955-751-D is Genuine VW/Audi corrugated washer-system tubing supplied in the factory 10,000 mm roll specification. The tubing is cut to the required repair length and joined using the appropriate original washer-system connectors.
Washer tubing can split, crack or become damaged at a hinge or routing point, allowing washer fluid to escape before reaching the spray jet. Correct tubing and compatible connectors help restore the original fluid path without replacing unrelated washer components.
Technical details
- Complete factory number: 1J0-955-751-D.
- Factory specification: 6 × 0.75 × 10,000 mm factory corrugated-tube designation; 10 m roll.
- Design: flexible corrugated tubing for the specified factory washer-system repair.
- Quantity supplied: one individual 10 m roll of washer tubing.
The roll is workshop material that must be cut to the required length; it is not a preformed vehicle-specific hose assembly. Couplings, sleeves, spray jets, pump and washer fluid are separate.
Common reasons to replace
- The original tube has split and leaks during washer operation.
- The hose is cracked from age or repeated flexing.
- A section is damaged during body or interior trim service.
- A previous repair uses damaged or incompatible tubing.
Confirm the leak location and inspect the pump, connectors, jets and remaining hose before replacing tubing. A blocked jet, failed pump or disconnected coupling can produce poor washer performance without a split hose.
Vehicle fitment
Use at the original washer-system positions that specify this tubing and matching connectors. Required section length and routing depend on the repair location; measure the original route before cutting.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2015 | 1.8L turbocharged gasoline; 2.0L TDI | Mk7 hatchback | Original washer-system corrugated tube with 6x0.75 designation; cut and connect using specified factory repair fittings. Match original tube and repair position. |
Installation guidance
Follow the vehicle's washer-system repair procedure. Cut the required length cleanly, install the specified couplings or repair sleeves and route the tube through the original supports without kinks or tension.
Operate the washer system and check the full repaired route for leakage. Confirm adequate spray and sufficient slack where the tubing crosses a moving hinge or panel.
Ordering information
One factory-specification 10 m roll of Genuine VW/Audi corrugated washer tubing. Cut to length for installation. Connectors, pump, spray jets and fluid are separate.
