OVERVIEW
Join the original washer hoses at the Y-branch
1J0-955-873-D is the Genuine VW/Audi Y-shaped connector for the specified washer hose junction. Its three branches connect the original hoses at the assigned fluid-distribution point.
A small cracked connector can release washer fluid before it reaches the nozzles. Matching the original outlet profile and hose attachment prevents a repair from introducing loose, strained or incompatible connections.
Technical details
- Complete factory number: 1J0-955-873-D.
- Factory specification: individual factory washer-hose Y-piece, complete revision D.

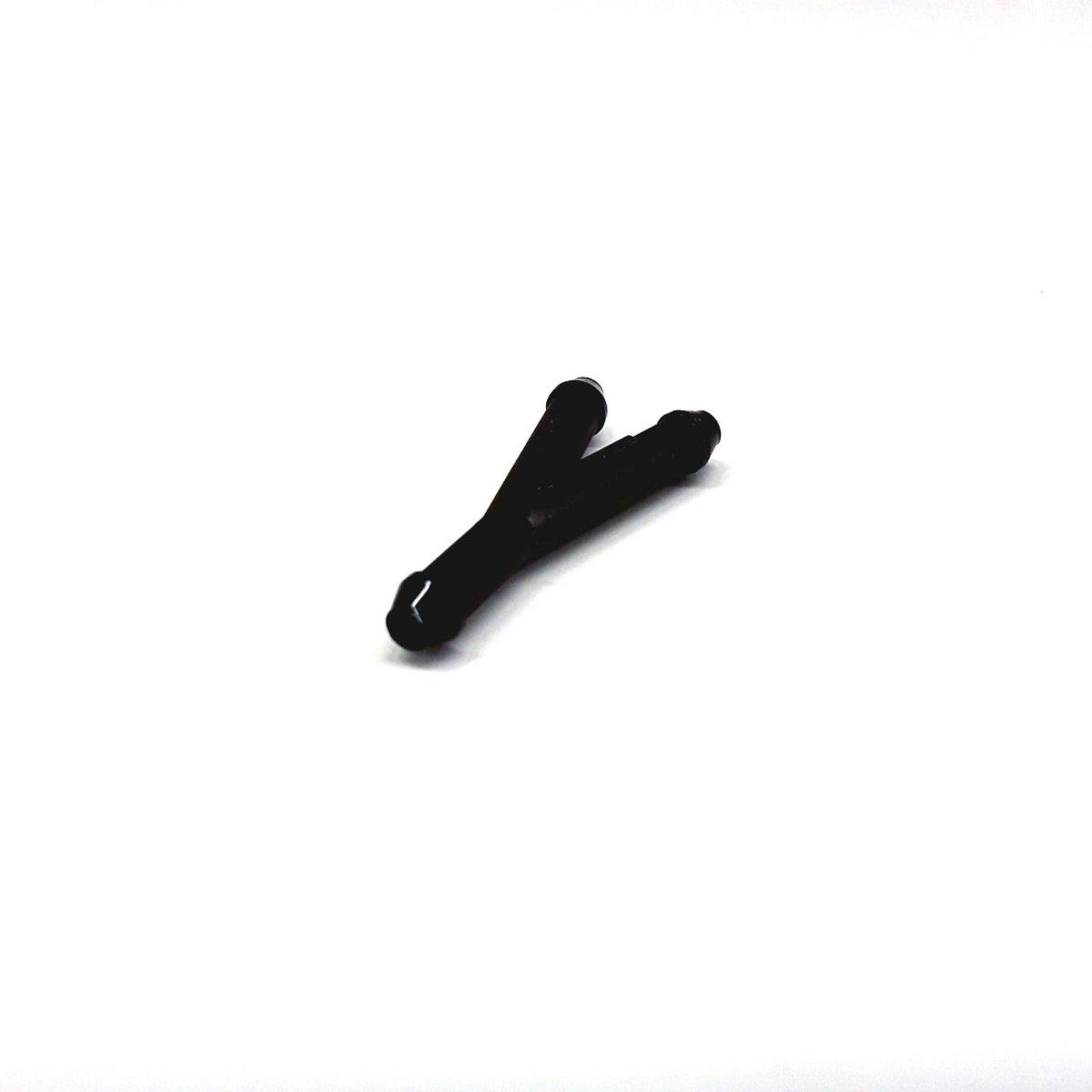

- Design: black molded three-branch connector shown in the archive photograph.
- Quantity supplied: one individual Y-connector.
One connector is supplied. Washer hoses, pump, reservoir, nozzles, washer fluid and other couplings are separate. This listing does not include a hose network or pair of nozzles.
Common reasons to replace
- A branch or housing is cracked and leaks.
- A hose connection is broken during service.
- The original connector is missing.
- The fitting no longer retains the correct original hose securely.
Inspect all attached hoses, nozzles and pump operation before replacing the connector. A blocked nozzle, kinked hose or disconnected line can cause similar symptoms. Replace damaged hose ends as needed rather than forcing them onto the new fitting.
Vehicle fitment
The table identifies confirmed original Y-piece applications. Compare the molded number, branch arrangement and hose-end design before ordering. Other washer connectors on the vehicle can differ.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Tiguan | 2024 | 2.0L turbocharged gasoline | SE R-Line Black or SE; original front washer circuit | Assigned washer-hose Y-piece position. Match original hose connections; not a headlamp-washer check valve. |
| Audi Q5 | 2011–2017 | 2.0L turbo gasoline | 8R SUV; quattro; left-hand drive | Original washer-hose Y-piece, diagram position 18; match hose-end design. |
| Audi A4 allroad | 2013–2016 | 2.0L turbo gasoline | B8 wagon; quattro; left-hand drive | Original washer-hose Y-piece, diagram position 18; match hose-end design. |
| Audi Q7 | 2009–2015 | 3.0L V6 TDI diesel | 4L SUV; quattro; left-hand drive | Original washer-hose Y-piece, diagram position 20; match hose-end design. |
| Audi Q7 | 2015 | 3.0L supercharged V6 gasoline | 4L SUV; Prestige; quattro | Original washer-hose Y-connector, selected diagram position 21; match original fitting. |
Installation guidance
Follow the washer-hose service procedure. Release the hoses carefully, install the correct connector orientation and fully seat each connection without twisting or stretching the lines. Keep debris out of the open hoses.
Operate the washer system and check every serviced connection for leakage. Confirm that the hoses are routed clear of hinges, hot surfaces and moving components and that spray reaches the intended nozzles.
Ordering information
One Genuine VW/Audi 1J0-955-873-D washer-hose Y-connector. Hoses, nozzles, pump and washer fluid are sold separately.
