OVERVIEW
Retain the assigned fuel-tank sender flange

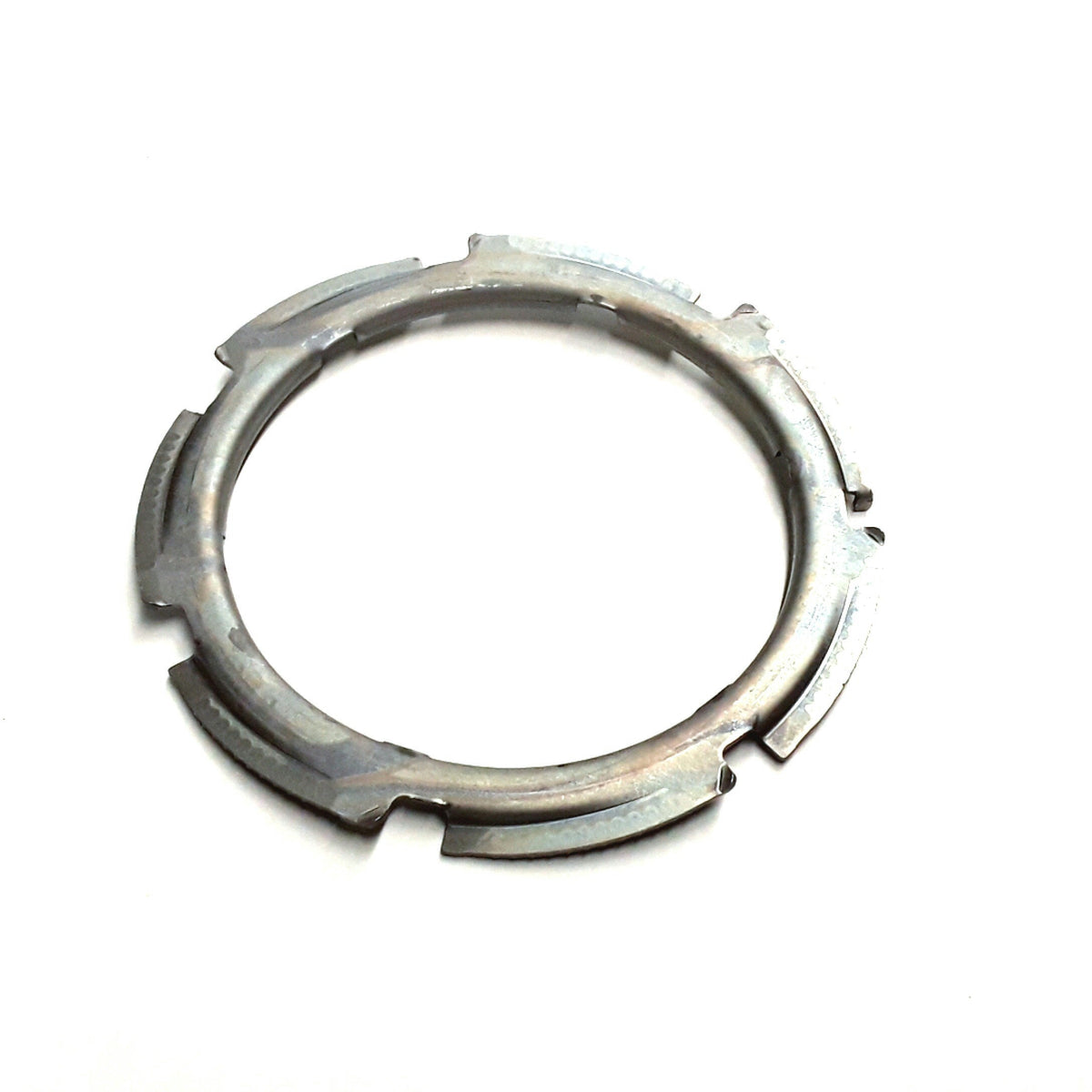

1K0-201-375 is the Genuine VW/Audi lock ring, also called a union nut, for the specified fuel-tank flange attachments. The formed metal ring engages the original tank retaining features to hold the assigned module or flange in position.
The retaining ring provides the mechanical clamping action while a separate sealing gasket closes the flange joint. Correct ring engagement and flange seating are essential when the tank module is removed or serviced.
Technical details
- Complete factory number: 1K0-201-375.
- Factory specification: individual factory fuel-tank module/flange retaining ring.
- Design: formed metal lock ring with application-specific engagement tabs.
- Quantity supplied: one individual lock ring.
One dry hardware ring is supplied. Fuel pump, sender, pressure regulator, tank, sealing gasket, fuel and installation tool are separate. Similar tank openings can use different rings; match the original complete number and flange.
Common reasons to replace
- Corrosion or damage prevents correct locking engagement.
- The ring is distorted or damaged during module removal.
- A retaining tab is damaged.
- The repair procedure requires renewal of the original retaining hardware.
Inspect the tank's retaining features, module flange and sealing surface. Replace the prescribed seal and repair damaged components. A new ring cannot compensate for a distorted flange, cracked tank or incorrect gasket.
Vehicle fitment
The table lists confirmed original attachment applications. Identify the exact tank opening and flange; multiple modules on a single vehicle may use separate retaining rings or seals.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q7 | 2012 | 3.0L supercharged gasoline or 3.0L TDI | quattro SUV | Assigned tank sender/flange retaining ring. Gasoline applications also include assigned pressure-regulator/flange positions; identify the opening before ordering. |
| Audi Q7 | 2014 | 3.0L supercharged gasoline or 3.0L TDI | quattro SUV | Assigned tank sender/flange retaining ring. Match original ring and opening; not the separate sealing gasket. |
Installation guidance
Follow the vehicle-specific fuel-system depressurization and tank-module procedure, including the required ventilation and ignition-source precautions. Use the specified ring tool and installation alignment. Do not strike the retaining ring with improvised tools.
Confirm the ring is fully engaged, reconnect the module as prescribed and complete the required fuel-system leak and function checks before refitting access covers.
Ordering information
One individual Genuine VW/Audi 1K0-201-375 fuel-tank sending-unit lock ring. Pump, module flange, seal and other fuel-system components are sold separately.
