OVERVIEW
Join the matching exhaust pipe sections

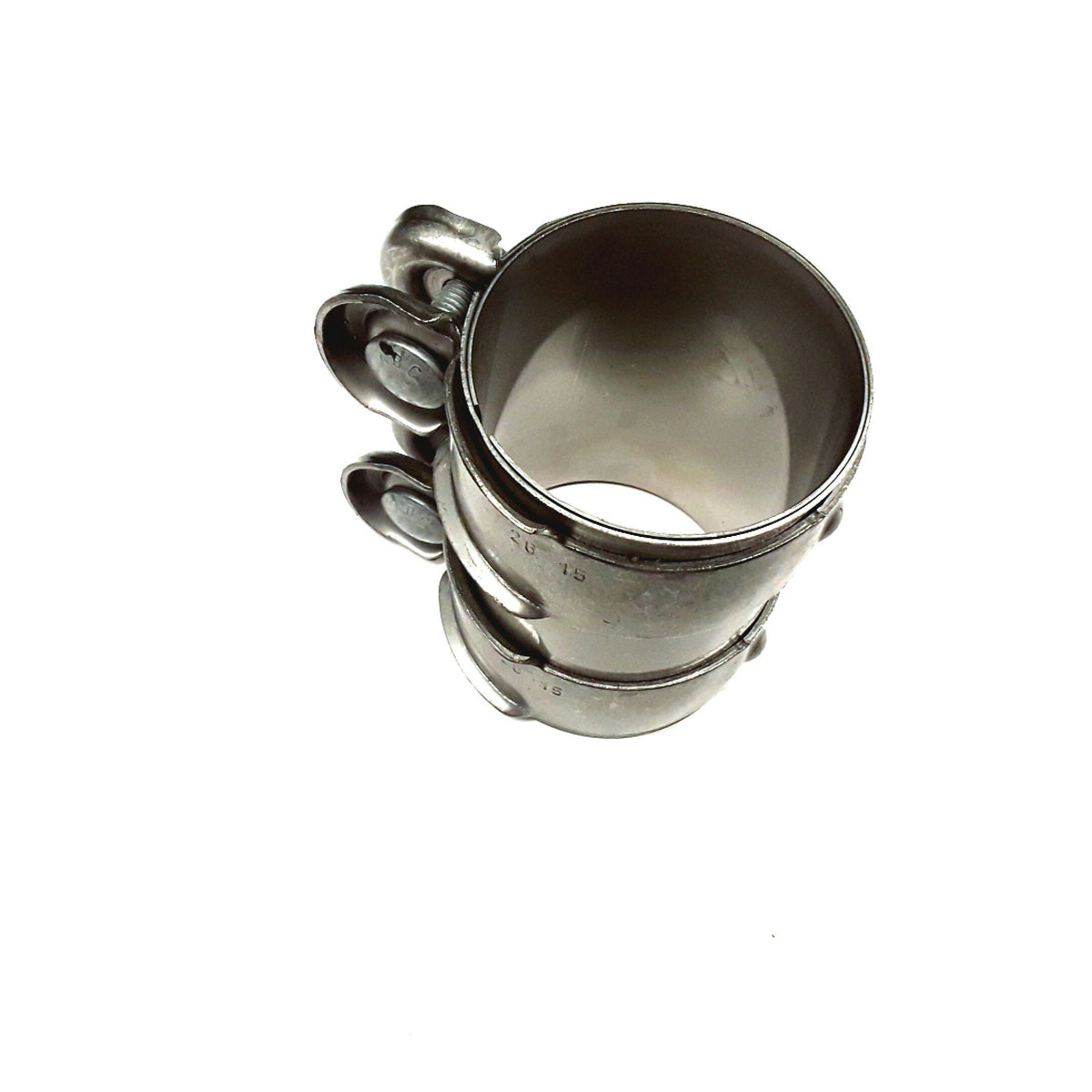

Genuine VW/Audi 1K0-253-141-H secures the designated 60 mm exhaust pipe connection. Its sleeve bridges the joint while the two tightening bands clamp the mating sections in their original alignment.
Correct sleeve placement supports a sealed joint and allows the exhaust to retain its intended routing. The clamp is a service part for the assigned pipe connection, separate from the muffler, pipe and exhaust hangers.
Technical details
- Complete factory number: 1K0-253-141-H.
- Factory specification: 60 mm exhaust sleeve clamp, factory number 1K0-253-141-H.
- Design: metal joining sleeve with two bolted clamping bands.
- Quantity supplied: one individual exhaust sleeve clamp assembly.
The 60 mm designation identifies the intended connection size. Check the original pipe diameter and joint design before ordering, particularly on vehicles with replacement or modified exhaust systems. This is not a universal reducer or a repair for a pipe that has rusted through.
Common reasons to replace
- Corrosion prevents the old clamp from tightening evenly.
- Seized or damaged clamp hardware prevents normal exhaust service.
- Inspection finds leakage at the sleeve joint and confirms the clamp or sleeve is damaged.
Inspect both pipe ends for corrosion, distortion and cracks. Worn hangers or incorrect pipe alignment can overload a joint, so correct those faults before fitting the new clamp.
Vehicle fitment
Match the assigned exhaust joint and 60 mm connection in the applications below. Engine and exhaust configuration determine where the clamp is used.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Beetle | 2012–2013 | 2.0L turbo / 2.5L gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen Beetle | 2014–2017 | 1.8L turbo / 2.0L turbo gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen Beetle | 2018–2019 | 2.0L turbo gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen CC | 2009–2017 | 2.0L turbo gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen Eos | 2007–2011 | 2.0L turbo gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen Golf | 2010–2014 | 2.5L gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen Golf R | 2012–2013 | 2.0L turbo gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen GTI | 2006–2014 | 2.0L turbo gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen Passat | 2006–2010 | 2.0L turbo gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen R32 | 2008 | 3.2L VR6 gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Volkswagen Rabbit | 2006–2009 | 2.5L gasoline | Matching original exhaust | Assigned 60 mm sleeve joint; confirm pipe size and clamp number. |
| Audi Q3 | 2015–2018 | 2.0L turbo gasoline | FWD / quattro | Assigned 60 mm sleeve joint; match original clamp. |
Installation guidance
Allow the exhaust to cool and support the pipe sections. Clean the mating surfaces, position the sleeve over the joint as specified and align the system before tightening the bands to the application-specific repair specification.
Check clearance around the exhaust and verify the repaired connection for leakage. Confirm that the system sits naturally on its hangers without pulling against the clamp.
Ordering information
One individual Genuine VW/Audi 1K0-253-141-H clamp assembly is supplied. Verify the number of joints being serviced and order additional clamps separately.
