OVERVIEW
Join the original exhaust sections with the correct sleeve
1K0-253-141-J is the Genuine VW/Audi 65x95 exhaust sleeve clamp for the specified original pipe connections. Its sleeve and two clamping bands secure the adjoining exhaust sections using the factory joint arrangement.
A correctly sized sleeve provides the intended overlap and clamping support at a serviceable exhaust connection. Corrosion, damaged hardware or distorted pipe ends can prevent an old clamp from securing the joint correctly.
Technical details
- Complete factory number: 1K0-253-141-J.
- Factory specification: 65 × 95 mm factory dual-clip sleeve designation.

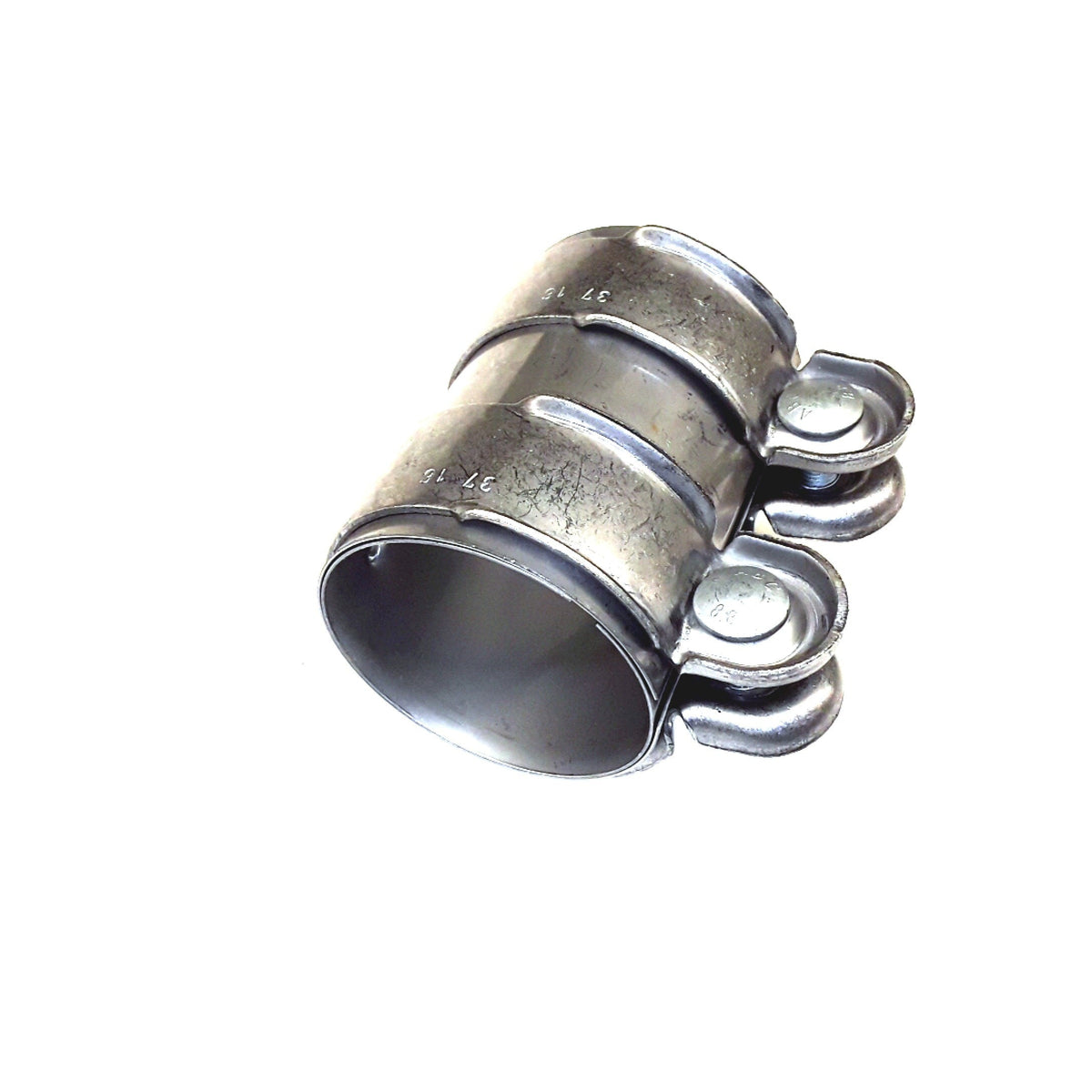

- Design: metal joining sleeve with two clamp bands and tightening hardware, as pictured.
- Quantity supplied: one individual exhaust sleeve clamp assembly.
The listing supplies one sleeve clamp assembly. Exhaust pipes, catalytic converter, muffler and hangers are separate. Confirm original pipe diameter and joint location; a sleeve intended for a different diameter will not clamp correctly.
Common reasons to replace
- The original sleeve or clamp bands are heavily corroded.
- The tightening hardware is seized or damaged.
- The sleeve is distorted and will not clamp the original joint securely.
- The applicable exhaust repair requires replacement of the joining clamp.
Inspect both pipe ends for corrosion, deformation and adequate insertion length. A new sleeve cannot seal a broken pipe or compensate for mismatched pipe diameters. Check exhaust alignment and supports before tightening.
Vehicle fitment
Use at the specified original 65x95 sleeve connection. Exhaust routing, engine and pipe diameter determine compatibility; confirm the original complete sleeve number.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Passat | 2006–2007 | 3.6L gasoline VR6 | B6 sedan | Original converter-to-muffler 65x95 mm dual-clip connection; match exhaust diameter and original sleeve. |
| Volkswagen Passat | 2007 | 3.6L gasoline VR6 | B6 wagon | Original converter-to-muffler 65x95 mm dual-clip connection; match original sleeve and exhaust configuration. |
| Audi TT | 2004 | 3.2L gasoline VR6 | 8N quattro Coupe or Roadster | Assigned original muffler sleeve-clamp connection; verify original 1K0-253-141-J sleeve and pipe size. |
Installation guidance
Work with the exhaust cool and support the affected sections. Follow the vehicle repair procedure for sleeve positioning, insertion depth and fastener tightening. Align the exhaust without preload before securing the joint.
Check exhaust clearances, hanger position and joint security. Perform the specified leak check and inspect for contact with the body or nearby components.
Ordering information
One individual Genuine VW/Audi dual-band sleeve clamp assembly as pictured. Exhaust sections and hangers are separate. Confirm original number, diameter and joint position.
