OVERVIEW
Genuine VW/Audi downpipe hanger bracket, part number 1K0-253-144-AE. This lower exhaust support secures the front pipe assembly at its assigned mounting points. The bracket supports the matching converter/downpipe assembly while its resilient inserts accommodate movement and reduce direct vibration transfer at that connection.
Technical details
- Original part number: 1K0-253-144-AE / 1K0253144AE.

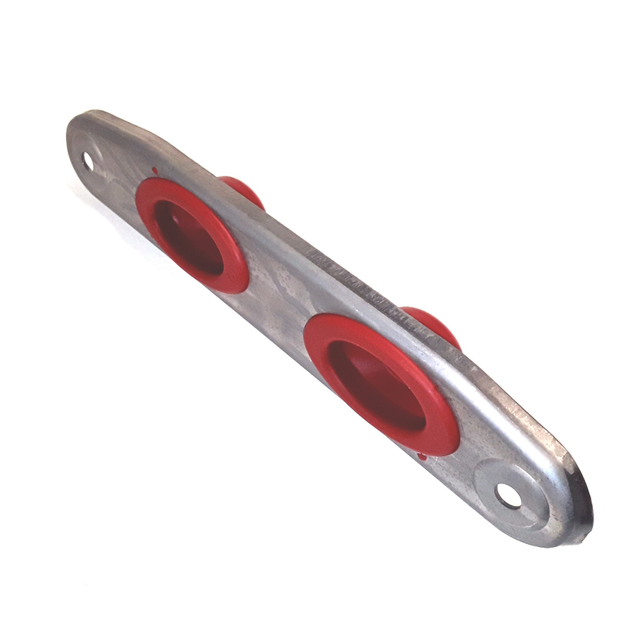

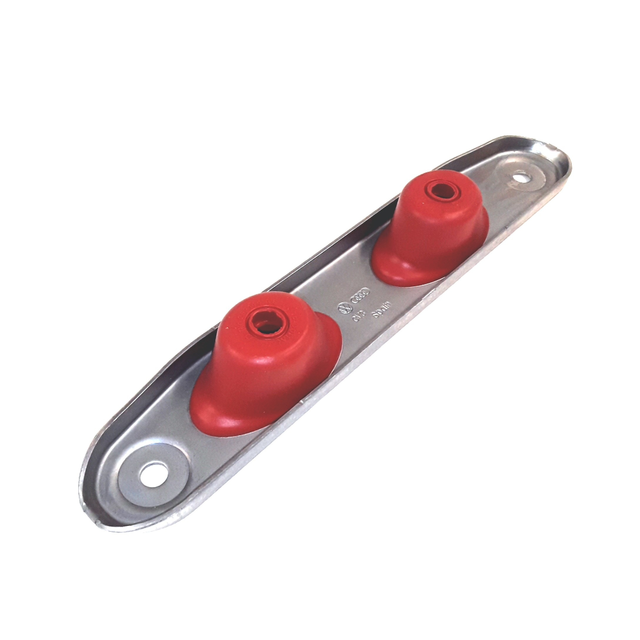

- Metal support bracket with two resilient inserts and end mounting openings, as shown in the source photos.
- Factory lower converter / downpipe support for the listed assemblies.
- Supplied as one bracket assembly. Bolts, exhaust pipe and other hangers are separate.
- Match the support's shape, mounting points and exhaust attachment arrangement; the same vehicle can use several different exhaust brackets.
Common reasons to replace
A bent bracket, damaged mounting opening or split, worn or displaced insert can reduce support at the front exhaust connection. Replacement may be appropriate after impact damage, corrosion or exhaust service that reveals a deteriorated mounting assembly.
Rattling, unusual exhaust movement or vibration felt through the body warrants inspection of the support and its adjoining hardware. Check the other hangers, heat shields and pipe clearance as well. A new bracket will not correct a misaligned exhaust or repair a damaged mounting point elsewhere.
Installation and service notes
Let the exhaust cool and support the pipe before removing its bracket. Compare the replacement with the original, check the mounting surfaces and inspect the fasteners. Confirm that the mating exhaust connection and other supports are sound before reassembly.
Install the support in its factory orientation and align the pipe without stretching the inserts or using the bracket to force the exhaust into position. Tighten the required hardware to the vehicle-specific specification. Check clearance and verify that the pipe is securely supported without contact against nearby components.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2015–2018 | 1.8L turbo gasoline; CXBB | Front-wheel-drive hatchback; lower converter support; Match original lower support; transmission does not determine the listed bracket | Front-wheel-drive hatchback; lower converter support; original support must specify 1K0253144AE. Compare exhaust mounting points if modified. |
| Volkswagen Golf SportWagen | 2015 | 1.8L turbo gasoline | Front-wheel-drive wagon; not diesel support hardware; Match original lower support; transmission does not determine the listed bracket | Front-wheel-drive wagon; not diesel support hardware; original support must specify 1K0253144AE. Compare exhaust mounting points if modified. |
| Volkswagen Golf Alltrack | 2017–2019 | 1.8L turbo gasoline; CXBB | 4Motion wagon; lower converter support; Match original lower support; transmission does not determine the listed bracket | 4Motion wagon; lower converter support; original support must specify 1K0253144AE. Compare exhaust mounting points if modified. |
| Volkswagen GTI | 2018; 2020 | 2.0L turbo gasoline | Lower converter / downpipe support; Match original lower support; transmission does not determine the listed bracket | Lower converter / downpipe support; original support must specify 1K0253144AE. Compare exhaust mounting points if modified. |
| Audi A3 | 2015 | 1.8L turbo gasoline | Sedan or Cabriolet; front-wheel drive; not diesel bracket; Match original lower support; transmission does not determine the listed bracket | Sedan or Cabriolet; front-wheel drive; not diesel bracket; original support must specify 1K0253144AE. Compare exhaust mounting points if modified. |
| Audi A3 quattro | 2015 | 2.0L turbo gasoline | Matching factory lower exhaust support; Match original lower support; transmission does not determine the listed bracket | Matching factory lower exhaust support; original support must specify 1K0253144AE. Compare exhaust mounting points if modified. |
| Audi S3 | 2015 | 2.0L turbo gasoline | Quattro sedan; matching factory lower exhaust support; Match original lower support; transmission does not determine the listed bracket | Quattro sedan; matching factory lower exhaust support; original support must specify 1K0253144AE. Compare exhaust mounting points if modified. |
| Volkswagen Rabbit | 2006–2007 | 2.5L gasoline; BGP | 2.5 hatchback; selected engine code; Manual / automatic | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen Jetta | 2005–2007 | 2.5L gasoline; BGP / BGQ | 2.5 / Value Edition; 2007 Wolfsburg BGQ; sedan; Manual / automatic | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen GTI | 2006–2008 | 2.0L turbo gasoline; BPY | Mk5; matching lower exhaust support; Manual / DSG | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen GTI | 2008–2014 | 2.0L turbo gasoline; CBFA | Mk5 / Mk6; engine code CBFA; Manual / DSG | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen Passat | 2006–2008 | 2.0L turbo gasoline; BPY | B6 sedan; wagon from 2007; selected factory engine; Factory manual / automatic where offered | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen Passat | 2008–2010 | 2.0L turbo gasoline; CCTA | B6 sedan / wagon; selected factory engine; Factory gearbox | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen Passat | 2006–2008 | 3.6L gasoline; BLV | Sedan; wagon 2007–2008; VR6 factory support; Automatic | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen Jetta GLI | 2012–2013 | 2.0L turbo gasoline; CCTA / CBFA | GLI sedan; selected engine codes; Manual / DSG | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen Golf SportWagen | 2017–2019 | 1.8L turbo gasoline; CXBB | 2017 SE / SEL; 2018 S / SE / SEL; 2019 S; factory drivetrain; Factory manual / automatic / DSG where offered | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Volkswagen Atlas | 2018–2021 | 2.0L turbo gasoline; DCGA or 3.6L gasoline; CDVC | Factory exhaust support; engine / trim must match catalog assignment; Automatic | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
| Audi TTS quattro | 2013–2015 | 2.0L turbo gasoline; CDMA | Mk2 coupe / convertible; DSG | Original lower exhaust support must specify 1K0253144AE. Confirm mounting points and engine by VIN, especially with modified exhaust. |
Confirm the original bracket number, exhaust support location and mounting points before ordering. Engine and gearbox availability vary within the listed years.
