OVERVIEW
Protect the assigned inner CV joint from nearby exhaust heat

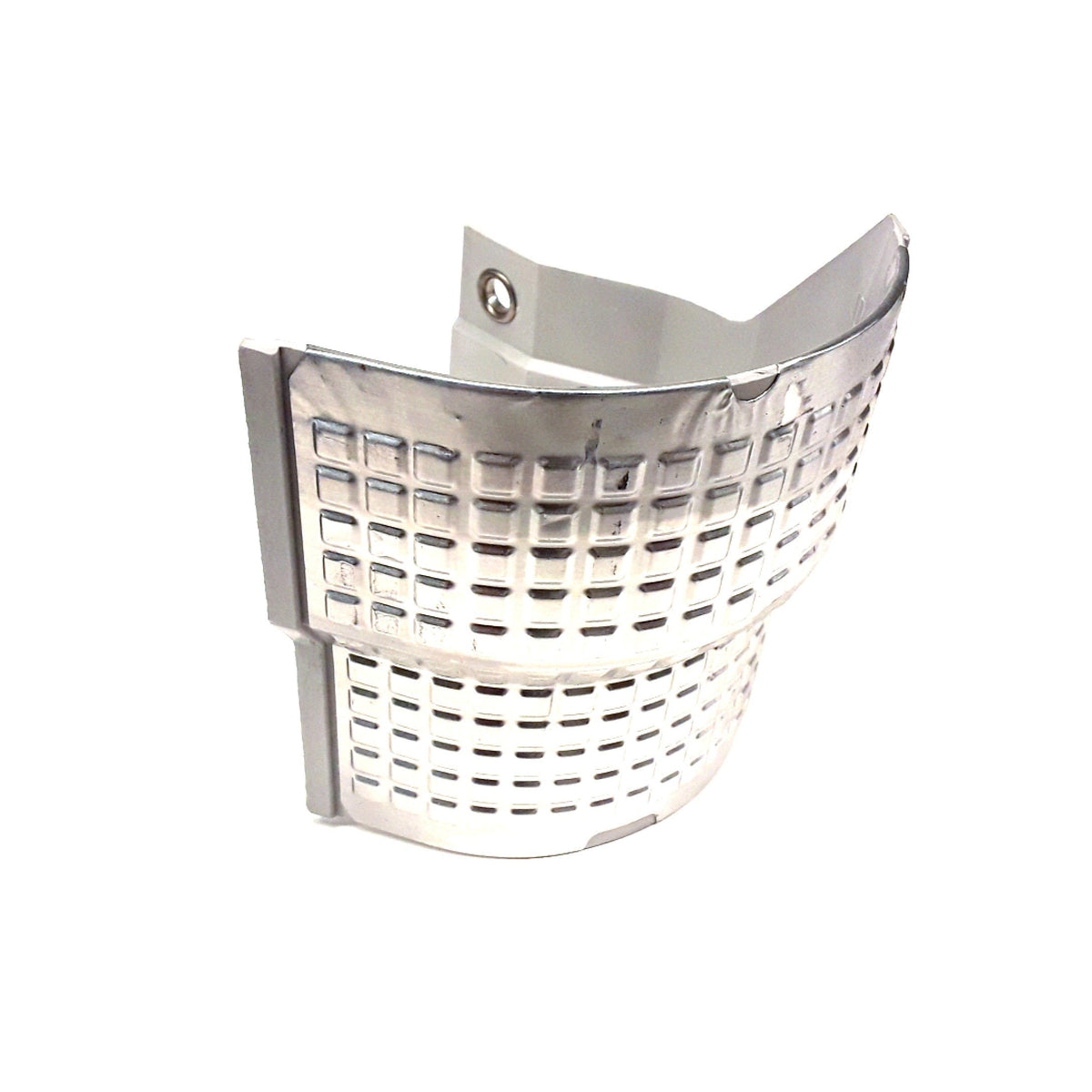

1K0-407-721-A is the Genuine VW/Audi formed metal shield for the specified right-hand inner drive-joint area. The shaped panel mounts in the original location between the joint assembly and nearby heat sources.
The factory shield creates a barrier at a closely packaged driveline location. Correct shape, bracket engagement and clearance matter: a bent or incorrectly installed shield can contact rotating parts or transmit vibration.
Technical details
- Complete factory number: 1K0-407-721-A.
- Factory specification: right-hand inner CV joint heat shield; complete revision A.
- Design: formed metal panel with application-specific mounting holes and clearance profile.
- Quantity supplied: one individual heat shield.
This listing supplies the shield only. Axle shaft, CV joint, boot, grease, mounting bracket and separate fasteners are not included. A right-hand shield is not interchangeable with a differently shaped shield simply because the hole spacing appears similar.
Common reasons to replace
- The original shield is missing after driveline work.
- Corrosion or a crack has weakened an attachment point.
- The shield is bent and cannot maintain its required clearance.
- Diagnosis traces a metallic rattle to a loose or damaged shield.
Inspect the mounting bracket, fasteners, CV boot and nearby exhaust components. Repair the cause of contact or looseness. A torn boot or worn CV joint requires its own repair; replacing the shield does not restore a damaged joint.
Vehicle fitment
The table lists confirmed original applications. Match transmission equipment, right-hand mounting position and complete factory number before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2006–2008 | 2.0L turbocharged gasoline | 8P front-wheel-drive hatchback | Assigned right-hand inner CV joint shield position; match original shield, bracket and transmission configuration. |
| Audi TT | 2008–2009 | 2.0L turbocharged gasoline | 8J front-wheel-drive coupe or roadster | Assigned right-hand inner CV joint shield position; match original shield, bracket and transmission configuration. |
| Audi TT | 2009 | 2.0L turbocharged gasoline | 8J quattro coupe or roadster | Assigned right-hand inner CV joint shield position; match original shield, bracket and transmission configuration. |
| Audi TTS | 2009 | 2.0L turbocharged gasoline | 8J quattro coupe or roadster | Assigned right-hand inner CV joint shield position; match original shield, bracket and transmission configuration. |
| Volkswagen GTI | 2009 | 2.0L turbocharged gasoline | Mk5; original assigned right inner-joint shield | Verify gearbox, original shield and bracket arrangement before ordering. Not a generic brake shield. |
| Volkswagen Eos | 2007 | 2.0L turbocharged gasoline | Convertible; manual transmission | Assigned right inner-joint heat shield position; match original bracket and complete number. |
Installation guidance
Work with the exhaust cool and support the vehicle using the prescribed lifting points. Fit the shield in its original orientation and use the vehicle-specific fasteners and torque procedure. Keep the panel clear of the axle, boot, exhaust and other moving components.
Check attachment security and clearances through the applicable steering and suspension movement. Confirm that there is no contact or rattle during the required road test.
Ordering information
One Genuine VW/Audi right inner CV joint heat shield. Verify original number 1K0-407-721-A and the vehicle's gearbox and bracket arrangement.
