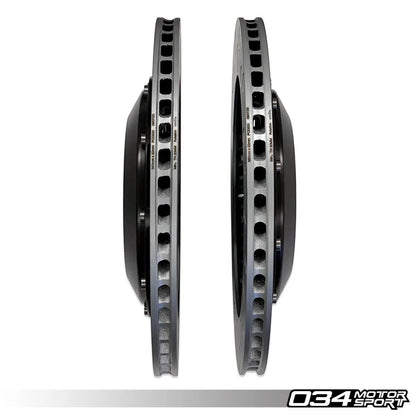

2-Piece Floating Rear Brake Rotor 350mm Upgrade for MQB VW & Audi

2-Piece Floating Rear Brake Rotor 350mm Upgrade for MQB VW & Audi

Regular price $1,251.00 USD
Regular price Sale price $1,251.00 USD
Sale Sold out
In Stock: 0

SKU:034-301-2004

View full details

OVERVIEW

350mm 2-Piece Floating Rear Brake Rotor Upgrade for MQB VW & Audi is a complete replacement brake rotor and caliper carrier kit, designed to work flawlessly with the factory rear calipers. Upgrading your rotors will increase overall braking performance in street, track, and HDPE driving conditions, as they keep your brakes cool and strong all day long!

Weighing in at approximately 14lbs, each rotor reduces rotational weight by 1lb on each corner over the factory 15lb rotors and increases rotor diameter from 310mm to 350mm! This increases stopping power and reduces rotational weight! While reducing weight, the rotor retains proper thermal mass in the rings to adequately capture, and dissipate heat.

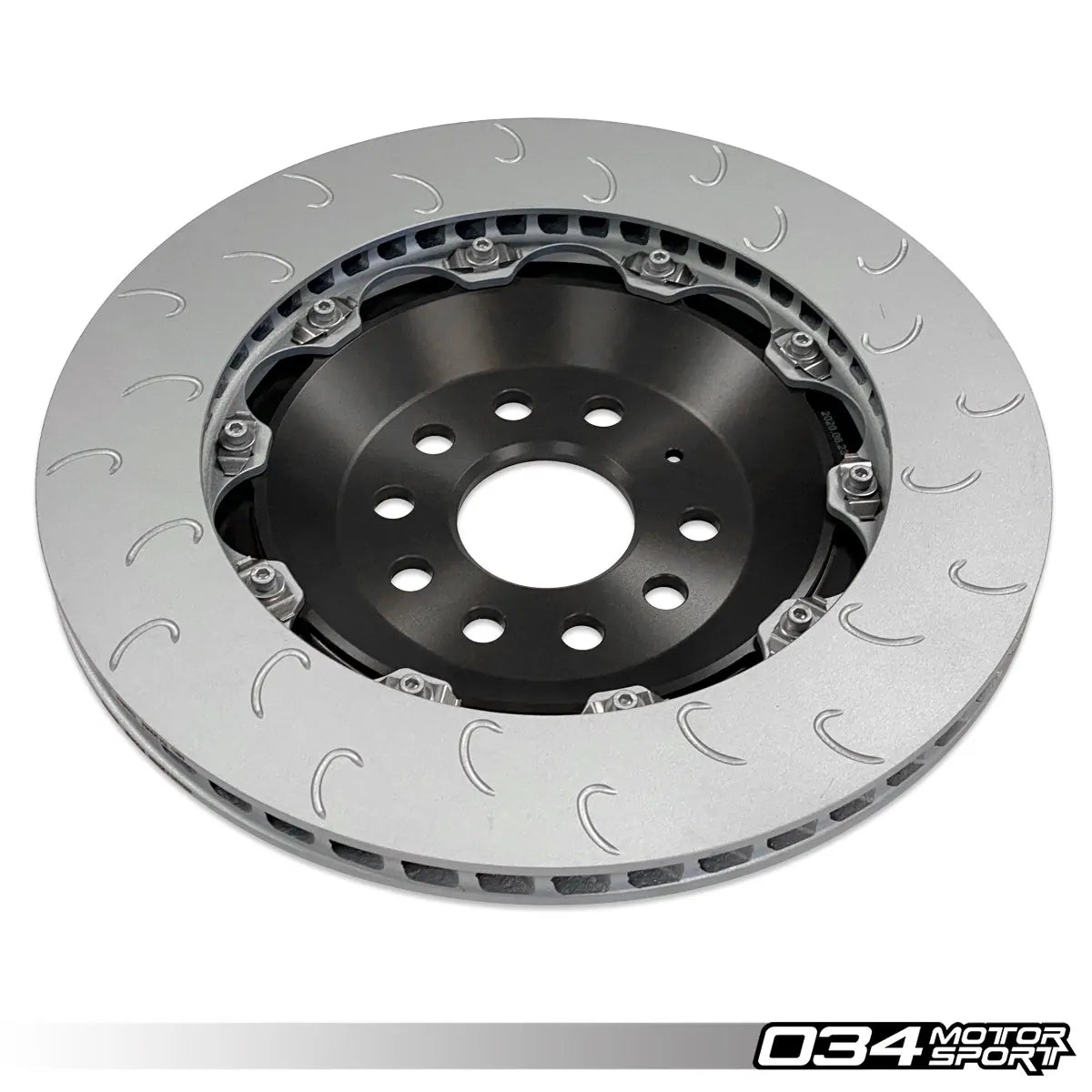

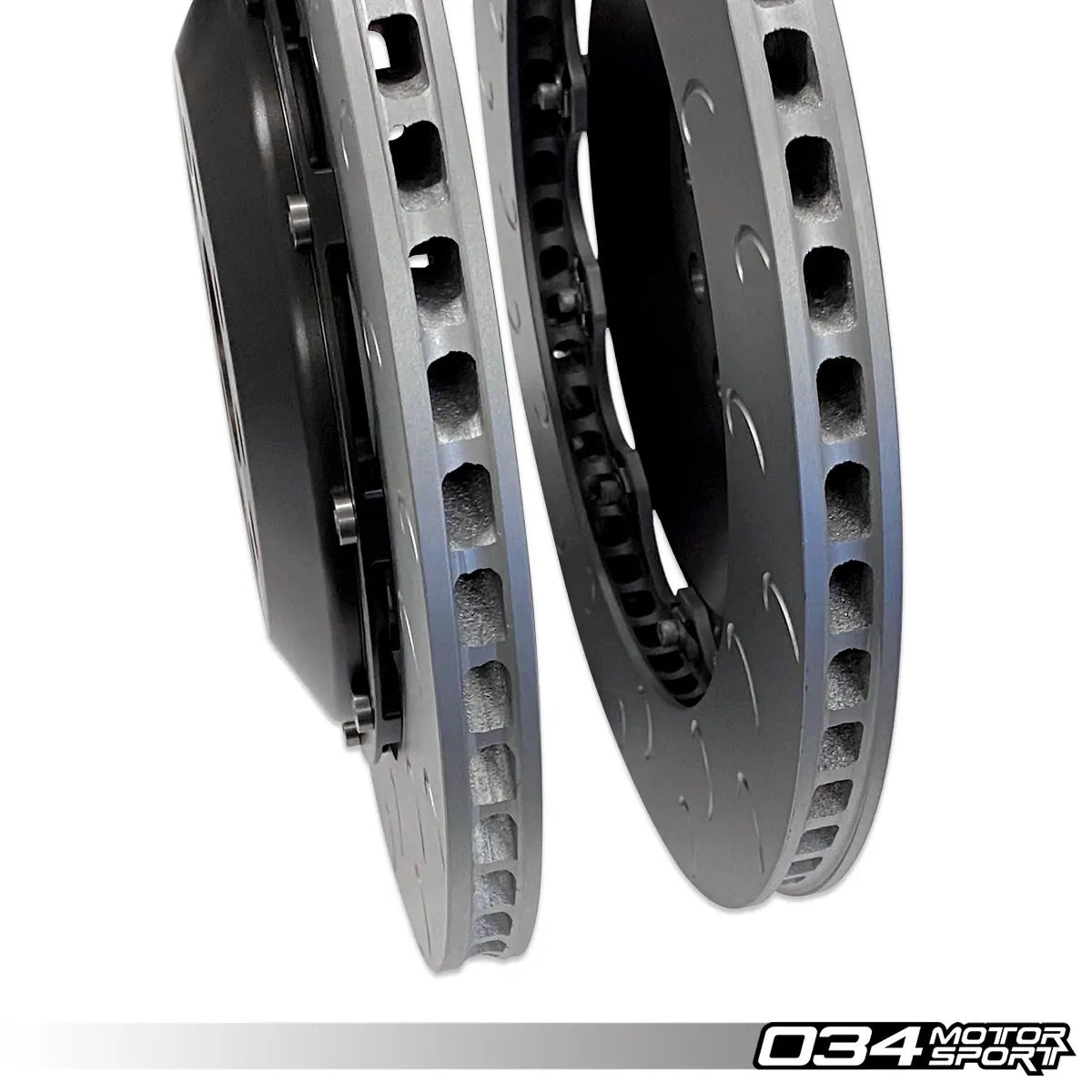

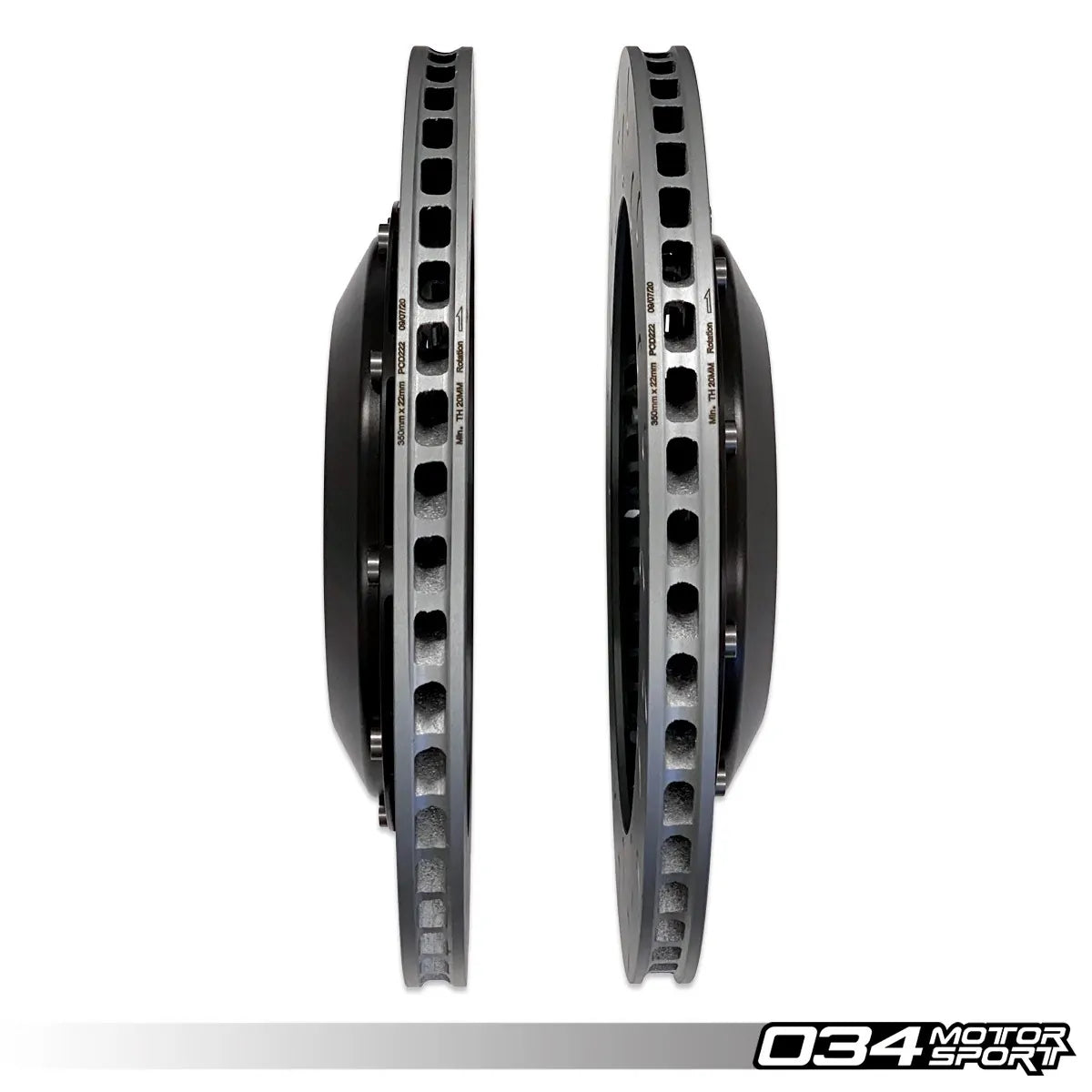

The central hat portion of the 034Motorsport rotor is made of 6061-T6 aircraft specification aluminum. The disc is constructed out of a proprietary metal alloy that can withstand immense braking temperatures while holding form. The rotor utilizes 72 directionally curved vanes to forcefully flow cool air through the rotor to dissipate heat.

The face of the rotor utilizes J-Slot slots to clean the pad surface of contaminants and allows hot pad outgassing.

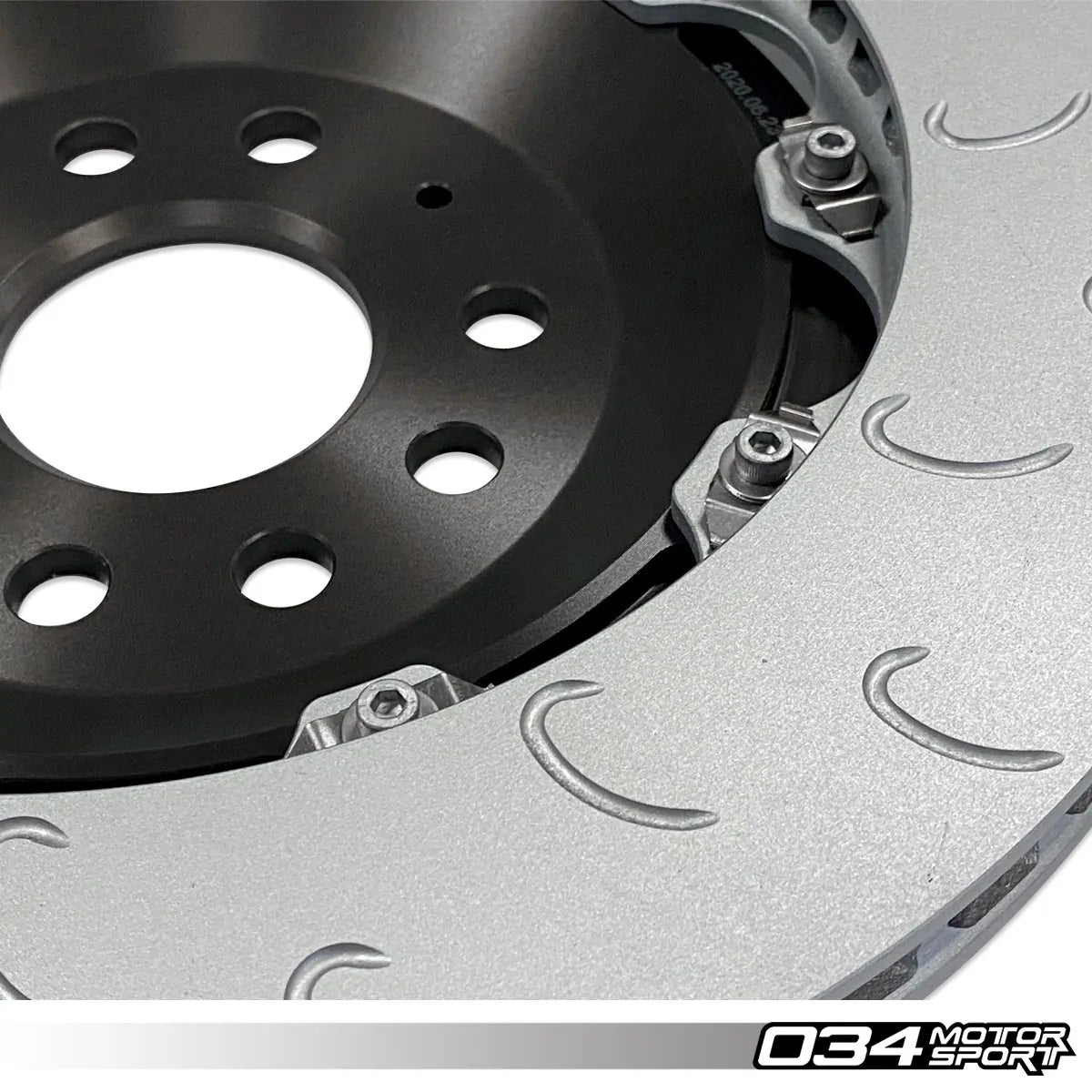

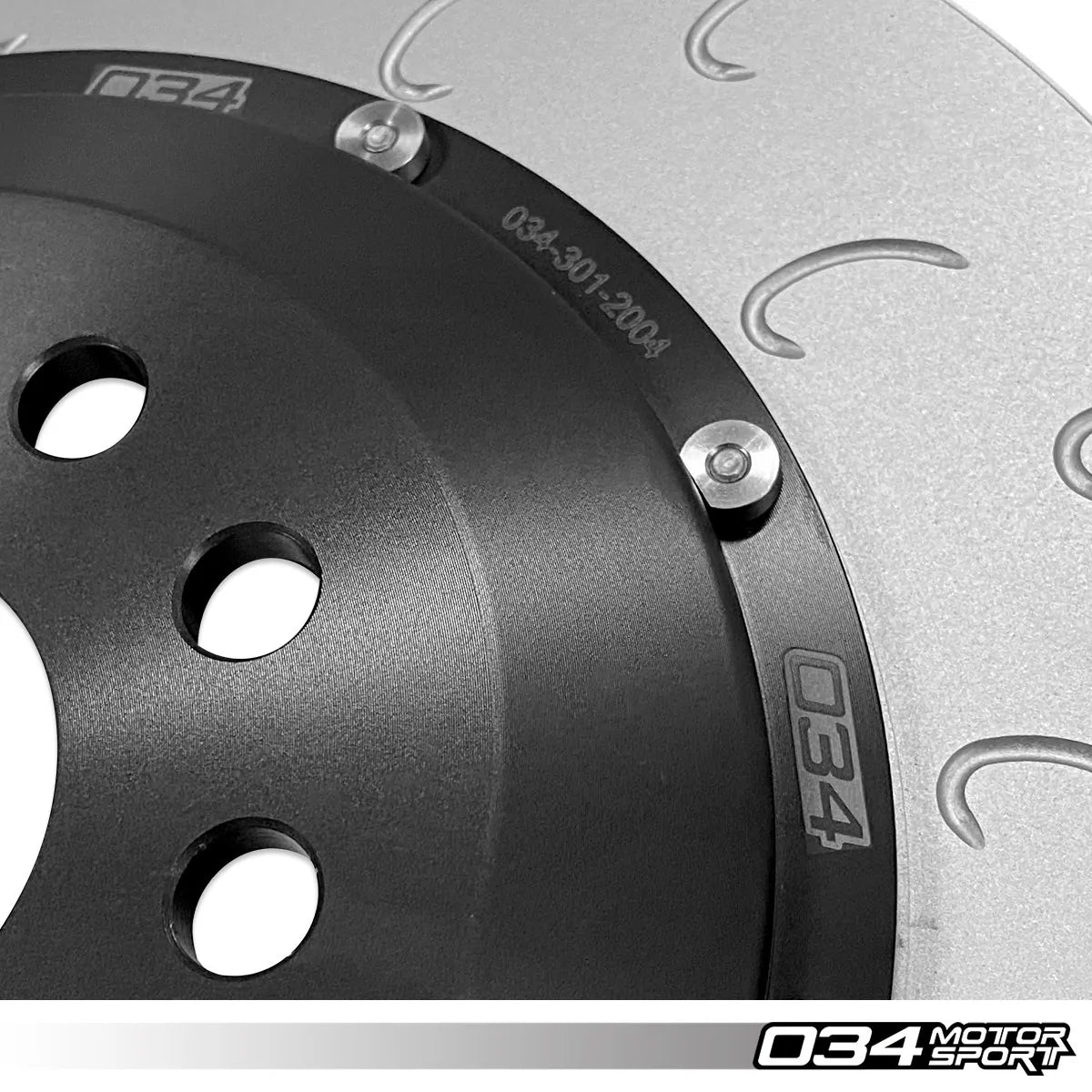

The rotor and hat have a floating mount system that utilizes high strength alloy steel bobbins. The pins take the load from braking actions while maintaining the axial and radial float between the hat and disc, allowing for safe expansion and contraction from heat.

Features:

  • Lightweight Construction (14lb 350mm 034Motorsport Rotor vs. 15lb 310mm OE Rotor)
  • Floating, 2-Piece Design
  • Aerospace Grade Aluminum Hats with Type III Hard Anodizing**
  • CM-250 Special Alloy Rotor Rings
  • J-Slot Slotted Friction Face
  • OEM Fitment & Functionality
  • 72 Curved Vanes Force Cooling Air through Brake Disc
  • Floating Bobbins Mounting System
  • Replaceable Rotor Rings
  • Lower Long-term Maintenance Cost

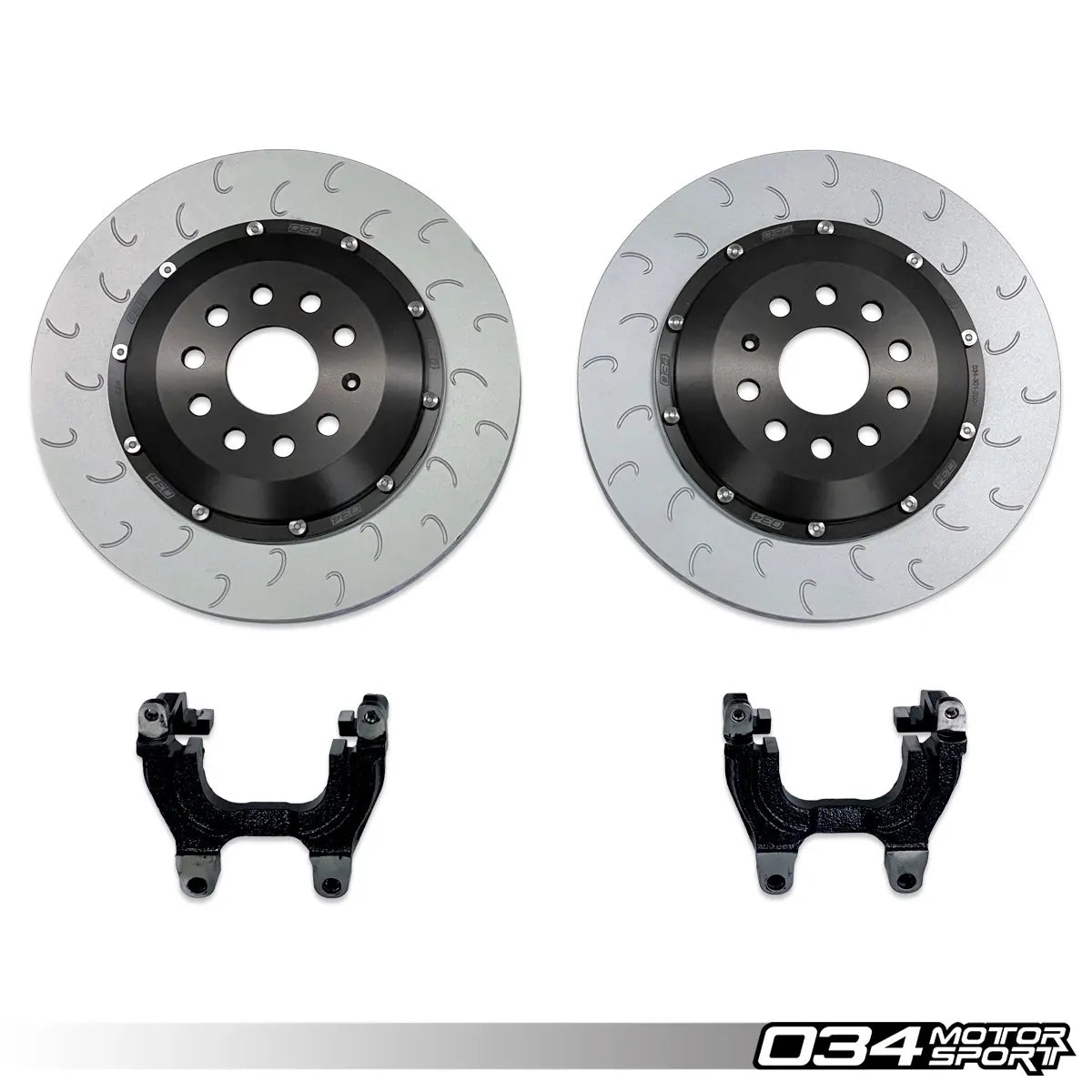

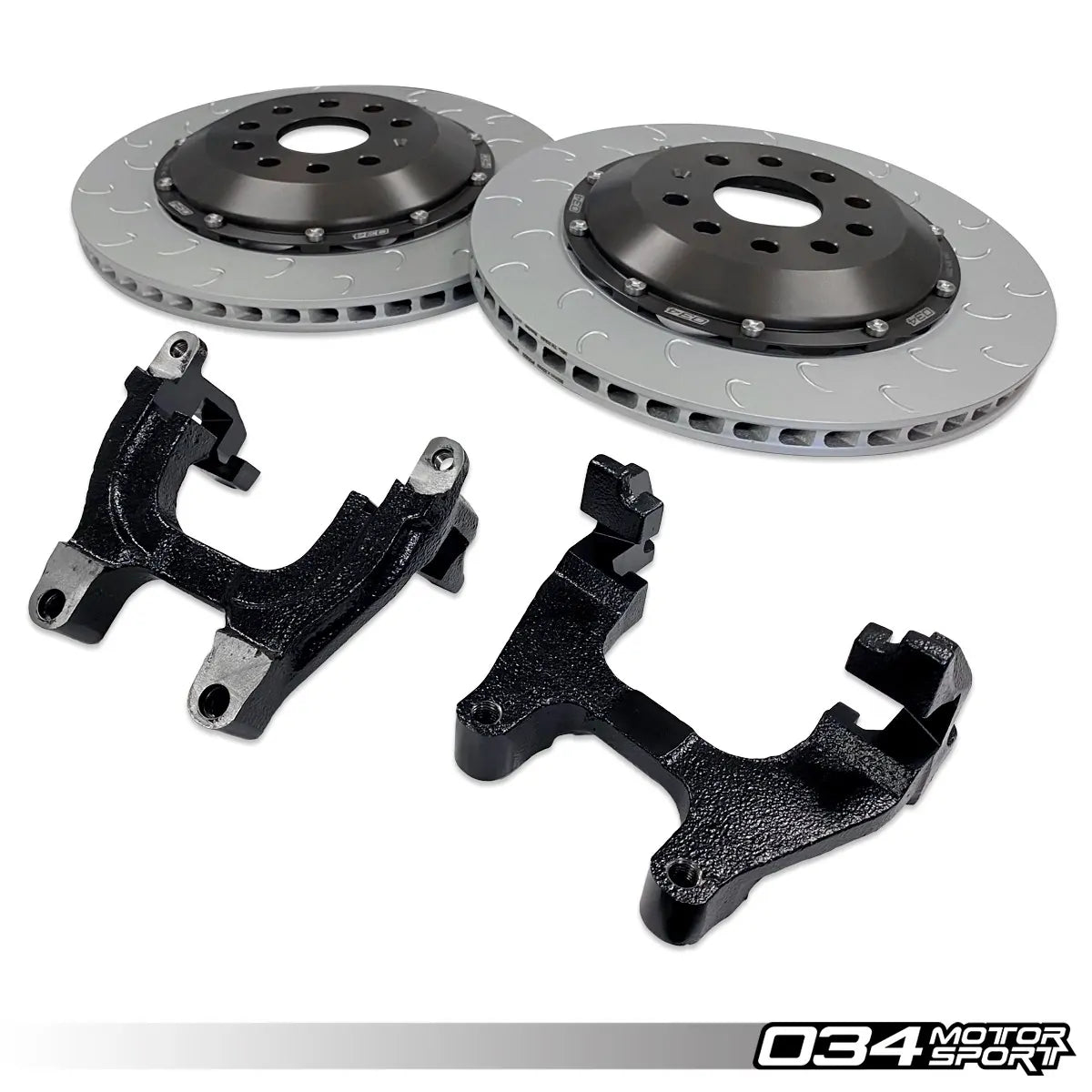

What's Included:

  • 034Motorsport 2-Piece Floating Rear Rotor Pair

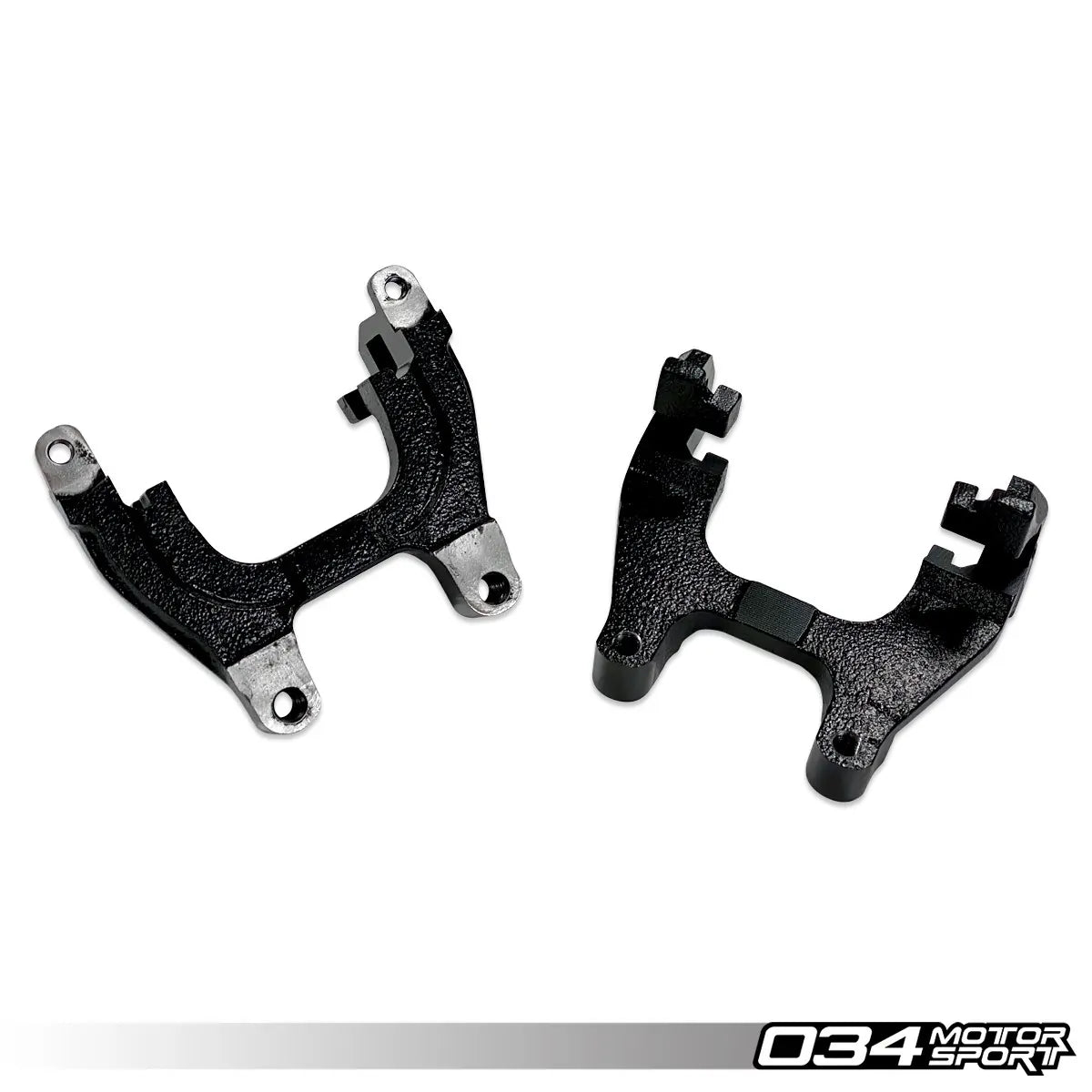

  • Caliper carrier conversion brackets

**Please Note: Type III hard anodizing of aluminum is considered as a functional surface coating process. While we always aim for color consistency, color variations may exist from batch to batch due to the nature and variables in the anodizing process.



Please Note: This kit will only fit A3's with ventilated rear rotors, and WILL NOT fit cars originally equipped with solid rotors.

Make Model Years Chassis Engine
Audi A3 2015-Present 8V 1.8 TFSI
Audi A3 2015-Present 8V 2.0 TFSI
Audi Q2 2017-2021 MQB 1.8T/2.0T
Audi RS3 2015-2017 8V 2.5 TFSI
Audi RS3 2017-Present 8V.5 2.5 TFSI EVO
Audi S3 2015-Present 8V 2.0 TFSI
Audi TT 2016-Present 8S 2.0T Gen 3
Audi TTS 2016-Present 8S 2.0T Gen 3
Audi TTRS 2018-Present 8S 2.5 TFSI EVO
Cupra (Seat) Formentor 2021-Present Mk1 2.0T
Seat Ateca 2016-2021 Mk1 1.8T/2.0T
Seat Leon 2012-2020 MQB 1.8T
Skoda Kodiaq 2016-Present Mk1 2.0T
Skoda Octavia 2013-2020 Mk3 1.8T/2.0T
Skoda Superb 2016-Present B8 1.8T/2.0T
VW Golf R 2015-Present Mk7 2.0 TSI

*Note: Brake dust shields must be removed or modified to run 034Motorsport upsized brake rotors.
