OVERVIEW
Maintain free movement of the original floating brake caliper
251-615-219 is the Genuine VW/Audi brake caliper guide pin for the specified original floating-caliper installations. The smooth guide surface supports controlled sliding movement between the caliper and its carrier as the brake is applied and released.
A corroded, worn or damaged guide pin can prevent the caliper from moving freely. That can contribute to uneven pad wear, brake drag or inconsistent release. The guide pin must match the installed caliper design; a similar-looking pin is not sufficient evidence of compatibility.
Technical details
- Complete factory number: 251-615-219.
- Factory specification: factory caliper guide pin, complete number 251-615-219.

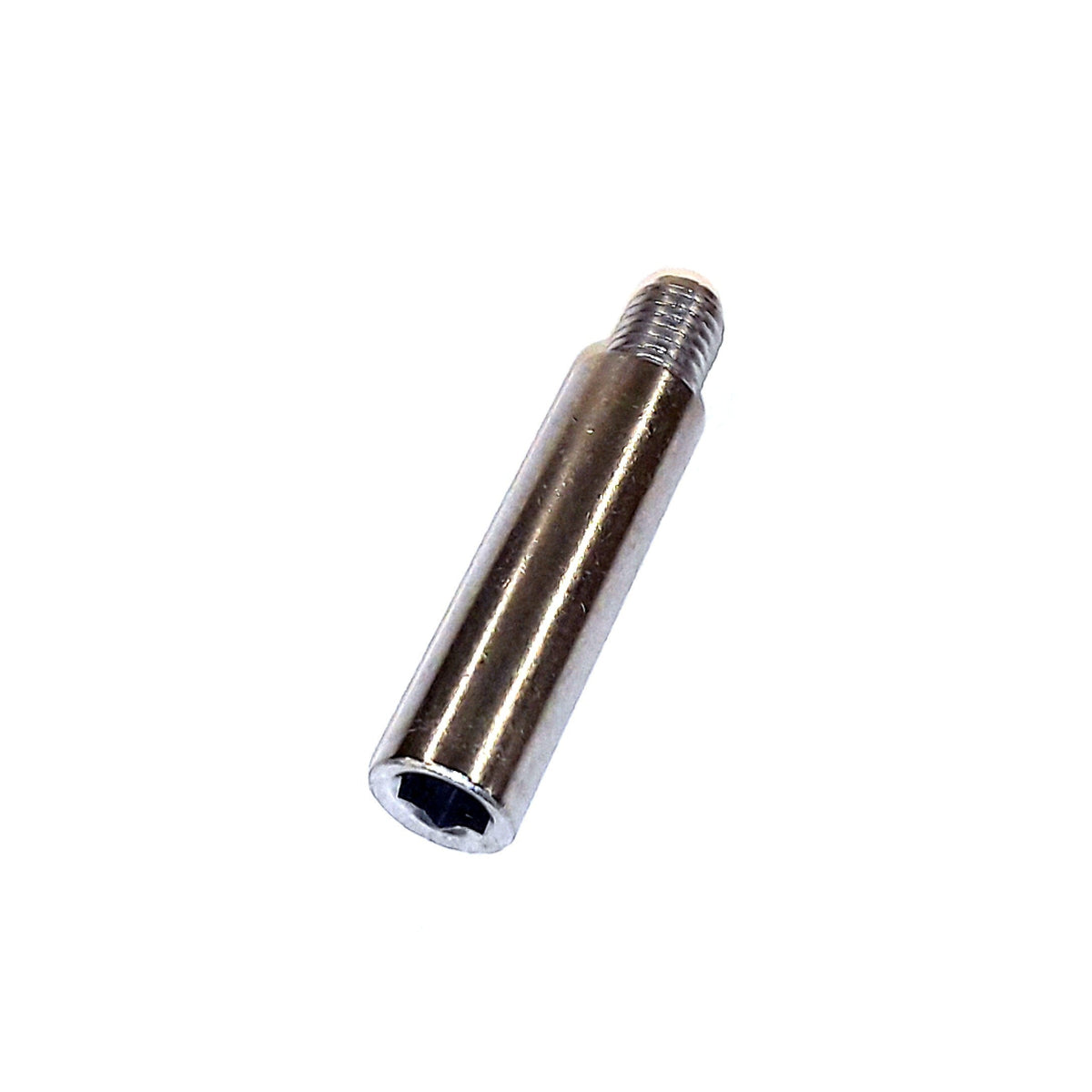

- Design: metal guide pin with a smooth sliding section, threaded end and internal drive, as pictured.
- Quantity supplied: one individual caliper guide pin.
One individual guide pin is supplied. Boots, bushings, grease, caliper, carrier, pads and discs are separate. Confirm the number of pins required for the repair and inspect the entire guide arrangement.
Common reasons to replace
- The sliding surface is pitted or corroded.
- The pin is worn, bent or mechanically damaged.
- A damaged drive prevents correct removal or installation.
- Diagnosis identifies restricted caliper movement associated with the guide pin.
Inspect the guide bushings, protective boots and carrier along with the pin. Uneven pad wear can also result from piston, hose or other brake faults. Replace damaged related components and diagnose the cause of binding before assembly.
Vehicle fitment
Fitment is specific to the original caliper and axle equipment. The table identifies confirmed vehicle applications; verify the installed brake system and guide-pin position before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Taos | 2022 | 1.5L turbocharged gasoline | SUV; FWD or 4MOTION | Assigned rear floating-caliper guide pin, left or right; verify original caliper and guide-pin design. |
| Volkswagen Golf R | 2016 | 2.0L turbocharged gasoline | 4MOTION hatchback | Assigned original floating-caliper guide pin position; match caliper, axle and original pin. |
| Volkswagen Jetta | 2002 | 1.8L turbocharged gasoline; 2.0L gasoline; 2.8L VR6; 1.9L TDI | Mk4; original compatible front floating-caliper installation | Front guide pin only where original caliper specifies 251-615-219. Brake equipment varies; verify installed caliper and original pin. |
Installation guidance
Follow the vehicle and caliper-specific brake service procedure. Support the caliper without straining the hose, clean the specified guide surfaces and use only the lubricant prescribed for that caliper design. Follow the correct fastener renewal and tightening requirements.
Confirm free caliper movement, correct boot seating and secure assembly. Perform the prescribed brake functional checks before returning the vehicle to service.
Ordering information
One individual Genuine VW/Audi guide pin, not a pair or complete caliper kit. Confirm original caliper, axle and part number.
