OVERVIEW
Repair the original washer line with factory service hose
2D0-955-962 is the Genuine VW/Audi washer hose supplied as a 1300 mm service length. The factory hose specification is 3.8 × 2.1 × 1300 mm, and the material is cut to the required original installation length.
Washer lines can split, harden or become damaged at bends and fittings. Using the correct service hose helps restore fluid delivery, but the required length and connector arrangement must be checked before cutting.
Technical details
- Complete factory number: 2D0-955-962.
- Factory specification: factory washer hose, 3.8 × 2.1 × 1300 mm; 1.3 meter service length.

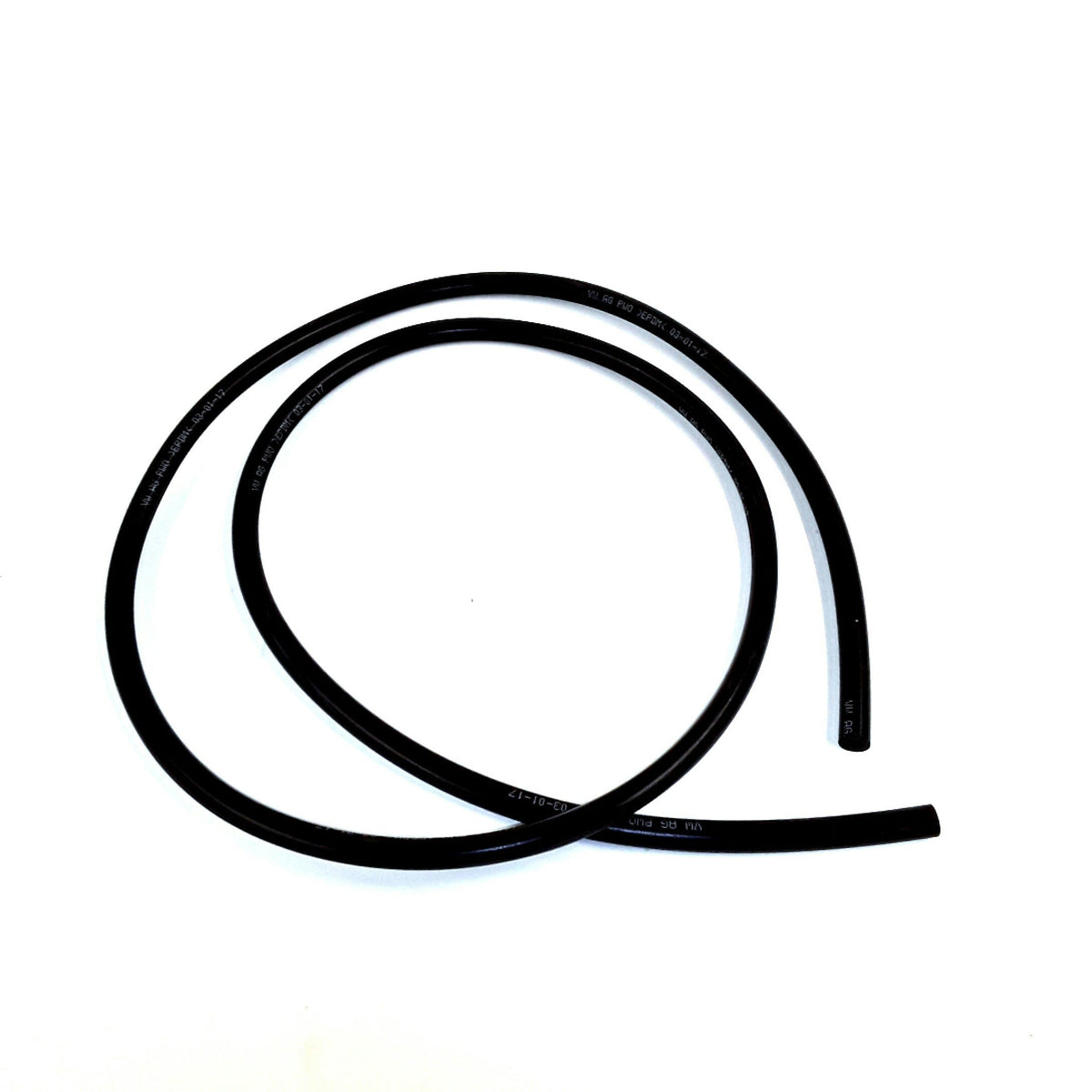

- Design: flexible black EPDM washer hose shown in the archive photograph.
- Quantity supplied: one individual 1300 mm service length.
One 1.3 meter service length is supplied. The looped archive photo shows the hose for identification; it does not imply a complete vehicle hose network. Connectors, nozzles, pump, reservoir and washer fluid are separate. For the listed e-tron rearview-camera washer repair, the factory procedure uses a 3 cm section of this hose in a separately assembled check-valve repair; this listing supplies the service hose alone. Functional hose dimensions are not packaged shipping measurements.
Common reasons to replace
- The original line is split or leaking.
- The hose has hardened or cracked at a bend.
- A damaged section no longer grips its original connector.
- A prescribed washer-line repair requires replacement service hose.
Check the complete fluid route and identify the leaking section. Inspect fittings, pump and nozzles for damage or blockage. Verify that one service length is sufficient for the required route and that the original connections use this hose specification. Delayed camera-washer spray can result from loss of line prime; follow the applicable factory diagnosis and modification procedure instead of replacing hose alone for every spray complaint.
Vehicle fitment
The table lists confirmed factory service-hose applications. Cut to the original route and match the hose and fitting design. This service material is not a preformed, full-length assembly for every listed vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Tiguan | 2009 | 2.0L turbocharged gasoline | Original washer circuit; PR 8W1 washer-fluid level indicator | Factory workshop-cut hose, nominal 3.8 × 2.1 × 1300 mm; trim to the original route. Verify required hose length and fittings. |
| Volkswagen Tiguan | 2024 | 2.0L turbocharged gasoline | SE R-Line Black; original front washer-hose circuit | Factory 1300 mm service roll, cut as required. Match hose and original connector design; not a complete preformed vehicle hose assembly. |
| Audi e-tron quattro | 2019–2021 | Battery electric | SUV; rearview-camera washer circuit | Service hose for camera-washer check-valve modification specified by Audi TSB 2059228/1. Cut a 3 cm section for that procedure; valve, coupling and clamps are separate. Confirm original system and required repair. |
Installation guidance
Measure the original route before cutting. Make clean square ends, fully seat the appropriate original fittings and preserve the specified clips and bend radii. Route the hose clear of hinges, heat and moving parts without stretching it.
Operate the washer system and inspect the repaired hose and fittings for leaks. Verify fluid delivery and check that no section is pinched after trim or access panels are refitted.
Ordering information
One Genuine VW/Audi 2D0-955-962 washer hose service length, 1300 mm. Confirm the required dimensions, length and original fittings before ordering. Fluid and connectors are separate.
