OVERVIEW
Renew the original front caliper pad retention hardware
3D0-698-269 is the Genuine VW/Audi front brake pad retaining hardware set for the specified original fixed-caliper brake systems. The retaining pin and spring components secure the brake pads in their intended installed position within the matching caliper.
Retention hardware is part of the original pad mounting arrangement. Corrosion, deformation or damaged retaining features can prevent correct seating or contribute to pad movement and noise. The correct set depends on the installed caliper and brake equipment code.
Technical details
- Complete factory number: 3D0-698-269.
- Factory specification: factory front brake pad securing hardware set, complete number 3D0-698-269.

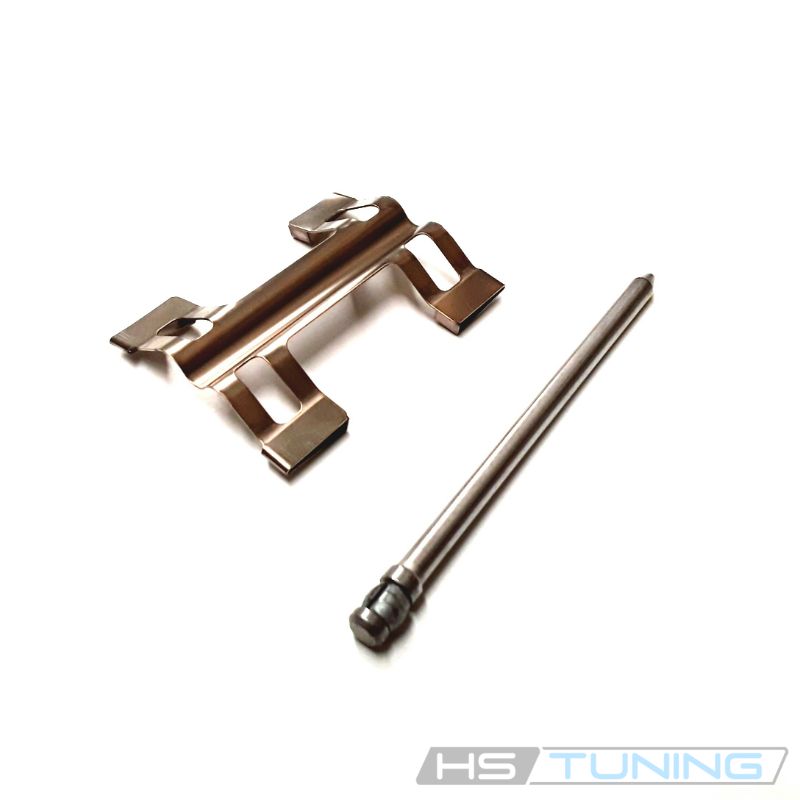

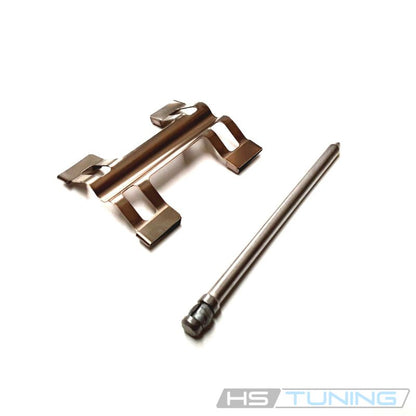

- Design: metal retaining-pin and spring hardware for the specified fixed-caliper arrangement, as pictured.
- Quantity supplied: one individual hardware set.
One original hardware set is supplied as pictured. Brake pads, caliper, discs, mounting bolts, seals and lubricant are separate. Confirm the quantity of sets required for the repair; this listing does not supply a complete brake assembly.
Common reasons to replace
- The original retaining pin is corroded or damaged.
- A spring is bent, damaged or has lost its intended seating.
- Correct retention hardware is missing from the original caliper.
- The pad replacement procedure specifies renewal of the securing hardware.
Inspect the caliper, pad retention features and brake pads before fitting new hardware. A new retaining set cannot repair a damaged caliper or resolve noise caused by incorrect pads or other brake faults.
Vehicle fitment
Fitment depends on the original front caliper and brake equipment. Match the listed PR code or non-ceramic configuration and complete hardware number; similar-looking ceramic-brake hardware is different.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi R8 | 2010 | 4.2L gasoline V8; 5.2L gasoline V10 | Coupe; quattro; front brake PR 1LA | Original front fixed-caliper pad retaining hardware for PR 1LA; match original caliper and hardware. Excludes ceramic-brake hardware. |
| Audi R8 | 2014–2015 | 4.2L gasoline V8; 5.2L gasoline V10 | Coupe or Spyder; quattro; non-ceramic front brakes | Original non-ceramic front caliper pad hardware only; ceramic brakes require a different set. |
| Audi RS4 | 2007–2008 | 4.2L FSI gasoline V8 | B7 quattro sedan; front brake PR 1LP | Original front fixed-caliper pad securing hardware; PR 1LP; confirm caliper and original hardware number. |
Installation guidance
Follow the brake-system-specific pad and retention-hardware replacement procedure. Install the pins and spring in their prescribed positions and renew other one-time-use components as required. Use only the specified lubricant at locations permitted by the repair procedure.
Verify full engagement of every retaining feature and correct pad seating. Perform the prescribed brake checks before returning the vehicle to service.
Ordering information
One Genuine VW/Audi front pad retaining hardware set as pictured. Pads, calipers, discs, seals and lubricant are separate. Confirm brake PR code, caliper and required set quantity.
