OVERVIEW
Renew the specified fuel filter and regulator assembly
4F0-201-511-E is the Genuine VW/Audi fuel filter with integrated pressure regulator for the specified gasoline fuel systems. The assembly combines fuel filtration and the original regulating function in a metal housing with the factory line connections.
Correct filtration and regulator specification are both essential when replacing this component. A filter that connects physically but has a different regulating arrangement can be unsuitable for the fuel system. Match the complete part number and original connection layout before ordering.
Technical details
- Complete factory number: 4F0-201-511-E.
- Factory specification: factory fuel filter with pressure regulator, revision E.

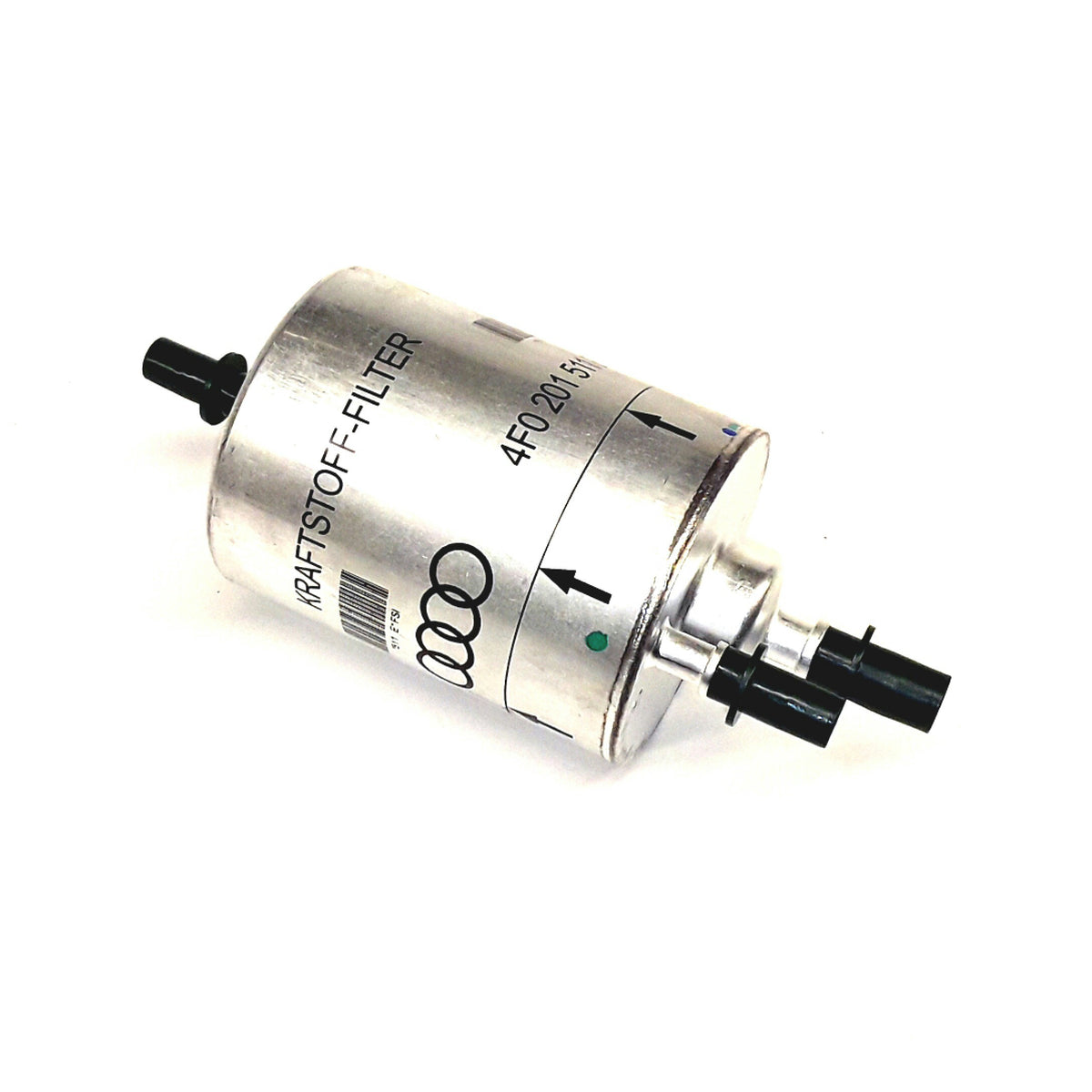

- Design: metal filter canister with multiple fuel-line connections and marked flow direction, as pictured.
- Quantity supplied: one individual fuel filter and regulator assembly.
One individual filter/regulator assembly is supplied. Fuel lines, retaining bracket, pump, injectors and fuel are separate. This gasoline filter is not a diesel fuel filter.
Common reasons to replace
- The vehicle's applicable maintenance procedure calls for filter replacement.
- Testing identifies excessive restriction or a regulating fault in the filter assembly.
- The housing or connection is damaged.
- The original correct filter is replaced during a contaminated-fuel-system repair as specified.
Check the fuel-system pressure and delivery according to the engine repair procedure. Poor starting or lack of power can have several causes, including pump, wiring, injector and fuel-quality faults; confirm the filter/regulator is responsible before replacement.
Vehicle fitment
Applies to the listed gasoline engine configurations with the matching original filter and pressure-regulator assembly. Verify the complete E-suffix number, engine and original fuel-line arrangement.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 Cabriolet | 2008–2009 | 2.0L turbocharged gasoline FSI; 3.2L FSI gasoline V6 | B7 Convertible; PR T61 or T14; FWD or quattro where equipped | Original fuel-filter/pressure-regulator configuration; confirm original complete filter number and fuel-line arrangement. |
| Audi S4 Cabriolet | 2008–2009 | 4.2L gasoline V8 | B7 quattro Convertible; PR T79 | Original fuel-filter/pressure-regulator configuration; match complete number and original hose connections. |
Installation guidance
Follow the vehicle-specific procedure to relieve fuel pressure and replace the filter. Keep the work area clean, protect open fuel connections from contamination and install the assembly in the indicated flow direction. Inspect and renew the required retaining and sealing components.
Prime the system using the prescribed method and inspect every disturbed connection for leakage before operation. Perform the specified fuel-pressure and running checks to verify the repair.
Ordering information
One individual new Genuine VW/Audi fuel filter/regulator assembly. Fuel lines, pump, bracket and fuel are separate. Confirm VIN, engine and original complete filter number.
