OVERVIEW
Original retaining hardware for the specified ceramic brake caliper
4S0-698-269-A is the Genuine VW/Audi pad retaining hardware set for the specified original front ceramic-brake caliper installation. Its factory retaining components secure the pads in the matching caliper arrangement.
Ceramic-brake calipers use a specific pad and retention arrangement. The correct spring, pin and fastener configuration matters to pad security and seating; a non-ceramic hardware set is not an equivalent substitute.
Technical details
- Complete factory number: 4S0-698-269-A.
- Factory specification: factory pad retention hardware set, revision A, for the specified ceramic front brake installation.

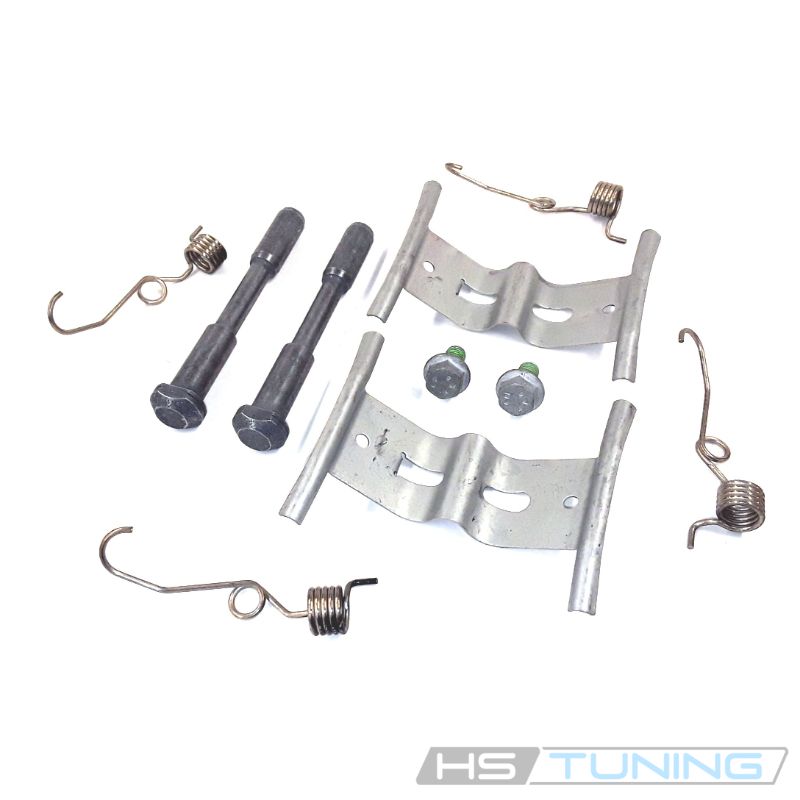

- Design: metal retaining springs, pins and fasteners in the original factory set configuration, as pictured.
- Quantity supplied: one individual hardware set.
One factory hardware set is supplied as pictured. Brake pads, calipers, discs, seals, lubricant and other service components are separate. Confirm the installed ceramic brake system and the quantity of sets required.
Common reasons to replace
- The original retaining pin is corroded or damaged.
- A spring is bent, damaged or has lost its intended seating.
- Correct retention hardware is missing from the original caliper.
- The pad replacement procedure specifies renewal of the securing hardware.
Inspect the caliper, pad retention features and brake pads before fitting new hardware. A new retaining set cannot repair a damaged caliper or resolve noise caused by incorrect pads or other brake faults.
Vehicle fitment
For the listed original front ceramic-brake caliper configuration only. Confirm the complete hardware number and installed brake equipment before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi R8 | 2014–2015 | 4.2L gasoline V8; 5.2L gasoline V10 | Coupe or Spyder; quattro; ceramic front brakes | Original front ceramic-brake caliper hardware only; excludes non-ceramic front brakes. Confirm original set number and brake equipment. |
Installation guidance
Follow the brake-system-specific pad and retention-hardware replacement procedure. Install the pins and spring in their prescribed positions and renew other one-time-use components as required. Use only the specified lubricant at locations permitted by the repair procedure.
Verify full engagement of every retaining feature and correct pad seating. Perform the prescribed brake checks before returning the vehicle to service.
Ordering information
One Genuine VW/Audi ceramic-brake pad retaining hardware set as pictured. Pads, calipers, discs and lubricant are separate. Confirm original set number, ceramic brake equipment and required quantity.
