OVERVIEW
Genuine VW/Audi Headliner Retaining Clip
5G0-867-289-A is the genuine formed-metal retainer used at assigned headliner and roof-trim attachment points. Its shaped clamping and locating features engage the original mounting arrangement so the specified trim remains seated. The factory roof equipment and trim assembly determine the exact position and number of clips required.

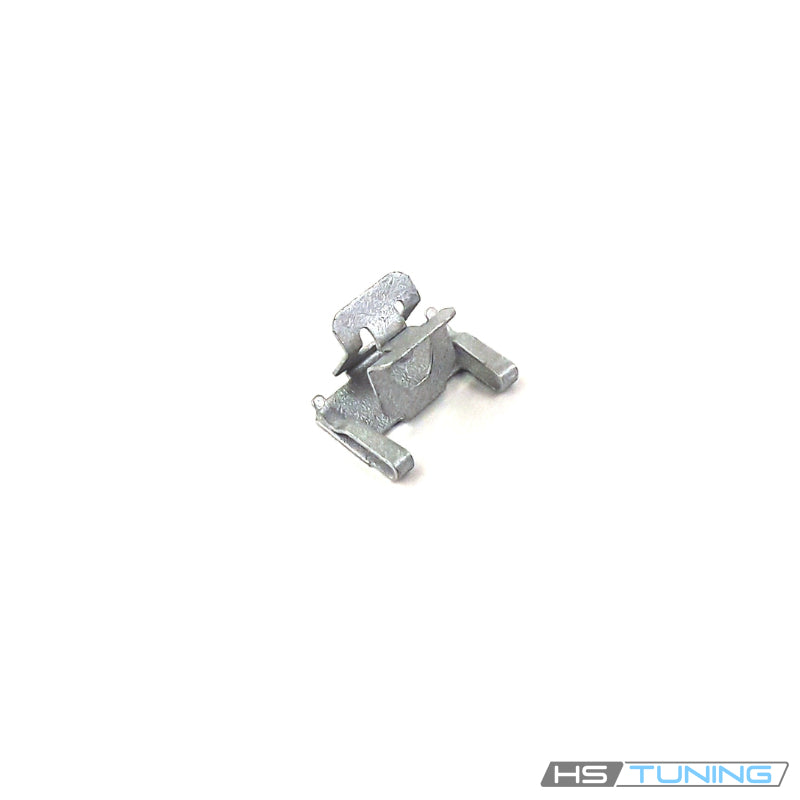

One individual clip is supplied per purchased unit, as shown in the original archive photograph. This listing is not a complete headliner fastening set. The headliner, roof-opening trim, surrounding panels and other retainers are separate components.
Technical details
- OEM number: 5G0-867-289-A / 5G0867289A.
- Component: Headliner / roof-trim clamp or retaining clip.
- Design: Formed metal retainer with original clamping and locating features.
- Quantity: One clip per purchased unit.
Roof and headliner configurations can have different attachment layouts. A factory sunroof, panoramic roof or fixed glass roof can change the required clip locations and quantities. Match the original roof equipment, trim position and full clip number before ordering. Other retainers on the same vehicle can use different profiles.
Common reasons to replace
Replace the retainer if it is missing, bent, cracked, distorted or unable to engage its original mounting point securely. Trim removal during roof or headliner service can damage the clamping profile, making replacement appropriate during reassembly.
A damaged or loose retainer can contribute to movement or rattling at its attachment. Inspect the headliner edge, trim locating features and receiving point before fitting a new clip. Broken trim, damaged mounting features or a sagging headliner backing require their own repair.
Fitment
The table identifies confirmed model and year applications at the original assigned headliner or roof-trim clamp positions. Roof configuration controls the attachment; confirm the original clip and trim arrangement.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Arteon | 2019–2023 | 2.0L turbo gasoline four-cylinder | Fastback; original headliner / roof-opening clamp assignment; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Atlas | 2018–2023 | 2.0L turbo four-cylinder or 3.6L VR6 gasoline | SUV; factory headliner; panoramic roof where assigned; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Atlas | 2024 | 2.0L turbo gasoline four-cylinder | SUV; factory headliner; panoramic roof where assigned; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Atlas Cross Sport | 2020–2023 | 2.0L turbo four-cylinder or 3.6L VR6 gasoline | SUV; factory headliner; panoramic roof where assigned; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Atlas Cross Sport | 2024 | 2.0L turbo gasoline four-cylinder | SUV; factory headliner; panoramic roof where assigned; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen GTI | 2022–2024 | 2.0L turbo gasoline four-cylinder | Mk8 Hatchback; SE / Autobahn; original roof trim; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Golf Alltrack | 2017–2019 | 1.8L turbo gasoline four-cylinder | Mk7 Wagon; original headliner / roof-opening trim; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Golf R | 2022–2023 | 2.0L turbo gasoline four-cylinder | Mk8 Hatchback; original headliner / roof-opening trim; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Golf SportWagen | 2015–2019 | 1.8L turbo gasoline four-cylinder | Mk7 Wagon; original factory headliner; 2019 1.8L 4Motion only; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Golf SportWagen | 2019 | 1.4L turbo gasoline four-cylinder | Mk7 Wagon; front-wheel drive; original headliner clamp assignment; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Golf SportWagen | 2015 | 2.0L TDI diesel four-cylinder | Mk7 Wagon; original headliner clamp assignment; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen ID.4 | 2021–2023 | Battery electric | SUV; 1st Edition / Pro S / Pro S Plus / S; original glass-roof headliner where assigned; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Jetta | 2019–2021 | 1.4L turbo gasoline four-cylinder | Mk7 Sedan; original headliner / roof-opening trim; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Jetta | 2022–2024 | 1.5L turbo gasoline four-cylinder | Mk7 Sedan; original headliner / roof-opening trim; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Jetta GLI | 2019–2024 | 2.0L turbo gasoline four-cylinder | Mk7 Sedan; original headliner / roof-opening trim; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Taos | 2022–2024 | 1.5L turbo gasoline four-cylinder | SUV; SE / SEL; original headliner and roof equipment; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
| Volkswagen Tiguan | 2018–2024 | 2.0L turbo gasoline four-cylinder | MQB SUV; factory panoramic-roof headliner where assigned; not 5N Tiguan Limited; Interior roof hardware; no transmission-specific restriction listed | Only original headliner/roof-trim clamp positions assigned 5G0867289A. Match factory roof equipment, trim attachment and full clip number; roof configurations can use different quantities or clips. One retainer supplied. |
Installation and headliner service guidance
Follow the factory headliner or roof-trim removal procedure. Support the trim and release the attachment points in the specified sequence using the correct tools, protecting nearby upholstery, wiring and roof components.
Inspect the receiving point and trim-side attachment. Install the correct clip in its original orientation and align the trim before seating it. Do not force a distorted retainer into place or use it to pull misaligned trim into position.
Restore all disturbed trim and wiring according to the service procedure, including the original routing and specified clearance around roof-mounted safety equipment. Verify that each attachment is fully seated and that any affected roof-opening trim operates and clears correctly.
This retainer restores the specified fastening point. It does not replace a damaged headliner, roof mechanism or surrounding trim panel.
