Genuine VW/Audi Rear Brake Caliper Bolt Set
5K0-698-141 is the genuine fixing set for the assigned rear disc brake caliper guide-pin locking positions. The set contains four M8 × 30 bolts for the matched caliper design. Confirm the rear brake equipment code, installed caliper and factory part assignment before ordering.

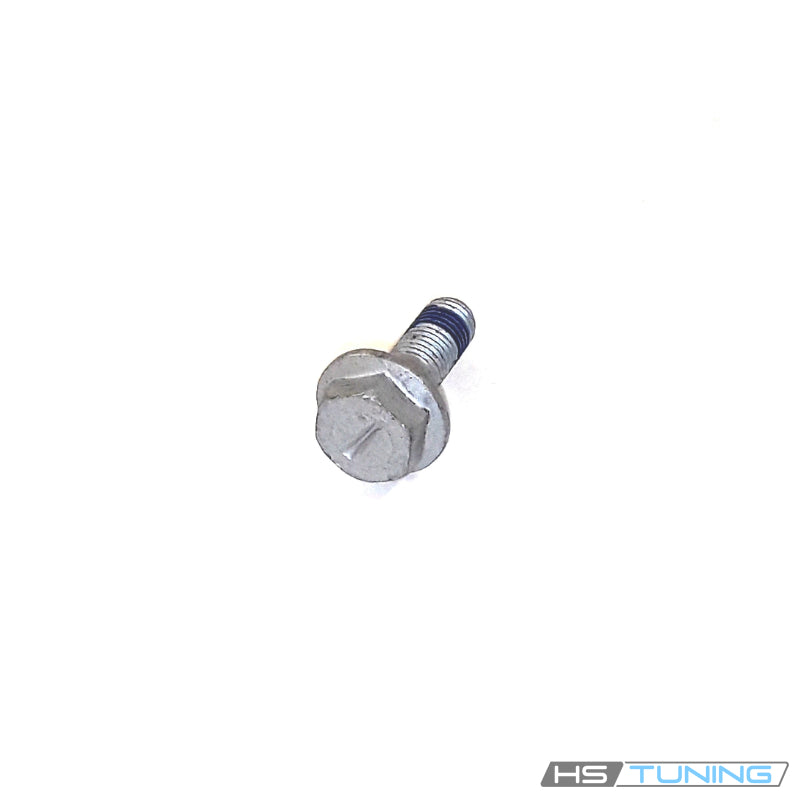

The archive photograph shows one representative bolt; each purchased set supplies four bolts. Calipers, carriers, guide pins, dust boots, brake pads and discs are separate. These bolts serve the assigned guide-pin locking attachment and are not the larger fasteners that attach the caliper carrier to the hub or axle.
Technical details
- OEM set number: 5K0-698-141 / 5K0698141.
- Set contents: Four rear caliper fixing bolts.
- Factory catalog bolt designation: M8 × 30.
- Application: Original rear disc brake caliper guide-pin locking positions assigned this fixing set.
- Quantity: One four-bolt set per purchased unit.
- Application control: Rear brake PR code, caliper design, VIN assignment and exact fastening position.
The rear brake design determines the correct hardware. The same model can be equipped with different calipers, carriers or rear drum brakes. A similar-looking bolt can differ in length, thread engagement or seating geometry. Match the original set assignment rather than choosing bolts solely from the model year or nominal thread size.
Common reasons to replace
New fixing bolts may be needed during rear brake pad or caliper service when the factory repair procedure calls for renewed hardware. Replace bolts that have damaged threads, rounded heads, corrosion, distortion or evidence of an incorrect prior repair. Missing or unsuitable hardware requires correction before the brake assembly is returned to service.
Inspect the guide pins, their receiving threads and the caliper’s movement at the same time. A damaged guide pin or seized sliding arrangement requires its own repair. A fresh bolt set cannot correct a torn boot, contaminated friction surface, hydraulic leak or worn brake component.
Fitment
The table identifies confirmed model families with the required rear disc brake arrangement. Fitment is conditional on the installed caliper and factory fixing-set assignment. Vehicles with rear drums or another caliper design need different hardware.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2010–2014 | Brake-system dependent; match the original rear caliper specification | Mk6 hatchback; matched rear disc calipers; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Jetta | 2009–2010 | Brake-system dependent; match the original rear caliper specification | Mk5 sedan; matched rear disc calipers; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Jetta | 2011–2014 | Brake-system dependent; match the original rear caliper specification | Mk6 sedan; matched rear disc calipers; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Jetta SportWagen | 2010–2014 | Brake-system dependent; match the original rear caliper specification | Wagon; FWD; matched rear disc calipers; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Eos | 2009–2015 | Brake-system dependent; match the original rear caliper specification | Convertible; matched rear disc calipers; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Beetle | 2012–2016 | Brake-system dependent; match the original rear caliper specification | A5 Coupe; rear disc brake PR 1KS or 1KT; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Beetle | 2013–2016 | Brake-system dependent; match the original rear caliper specification | A5 Convertible; matched rear disc calipers; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Passat | 2013–2015 | Brake-system dependent; match the original rear caliper specification | NMS sedan; matched rear disc calipers; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Audi A3 | 2009–2013 | Brake-system dependent; match the original rear caliper specification | 8P hatchback; rear disc brake PR 1KS; No transmission-specific restriction listed for the confirmed rear caliper fixing set | Only rear disc caliper guide-pin locking positions assigned 5K0698141 and M8 × 30 bolts. Confirm rear brake PR code, caliper and VIN assignment. Not for rear drums or caliper carrier-to-hub fastening. Four bolts per set. |
| Volkswagen Rabbit | 2006–2009 | 2.5L gasoline inline-five | Mk5 hatchback; FWD; matched rear disc calipers; 6-speed automatic | Original rear caliper guide-pin locking bolt positions assigned 5K0698141, M8 × 30 mm. Confirm fitted caliper and brake PR code; excludes rear drums and carrier-to-hub bolts. Four bolts supplied per set. |
| Volkswagen Jetta | 2006–2008 | 2.5L gasoline inline-five | Mk5 sedan; FWD; matched rear disc calipers; 6-speed automatic | Original rear caliper guide-pin locking bolt positions assigned 5K0698141, M8 × 30 mm. Confirm fitted caliper and brake PR code; excludes rear drums and carrier-to-hub bolts. Four bolts supplied per set. |
| Volkswagen Jetta SportWagen | 2009 | 2.5L gasoline inline-five | Mk5 wagon; FWD; original rear disc calipers; 5-speed manual or automatic | Original rear caliper guide-pin locking bolt positions assigned 5K0698141, M8 × 30 mm. Confirm fitted caliper and brake PR code; excludes rear drums and carrier-to-hub bolts. Four bolts supplied per set. |
| Volkswagen GLI | 2014 | 2.0L turbo gasoline; EA888 Gen 3 | Mk6 Jetta GLI sedan; FWD; matched rear 272 × 10 mm disc calipers; 6-speed manual | Original rear caliper guide-pin locking bolt positions assigned 5K0698141, M8 × 30 mm. Confirm fitted caliper and brake PR code; excludes rear drums and carrier-to-hub bolts. Four bolts supplied per set. |
Installation and service guidance
Follow the factory procedure for the exact rear brake system. Support the vehicle securely and support the caliper without loading the brake hose. Inspect the guide-pin assembly and threaded connections before installing the required replacement bolts.
Use the specified bolts at the correct guide-pin locking positions and follow the factory tightening procedure. Do not substitute a universal torque value or confuse these bolts with the caliper carrier fasteners. Follow the repair instructions for thread preparation and any original locking treatment; do not add extra materials unless the procedure calls for them.
Complete the required brake checks after assembly, including caliper movement, correct hose routing and the checks for any disturbed components. Confirm brake operation according to the repair procedure before driving. This set supplies fastening hardware only and does not rebuild the caliper or repair the hydraulic or parking brake mechanisms.
