OVERVIEW

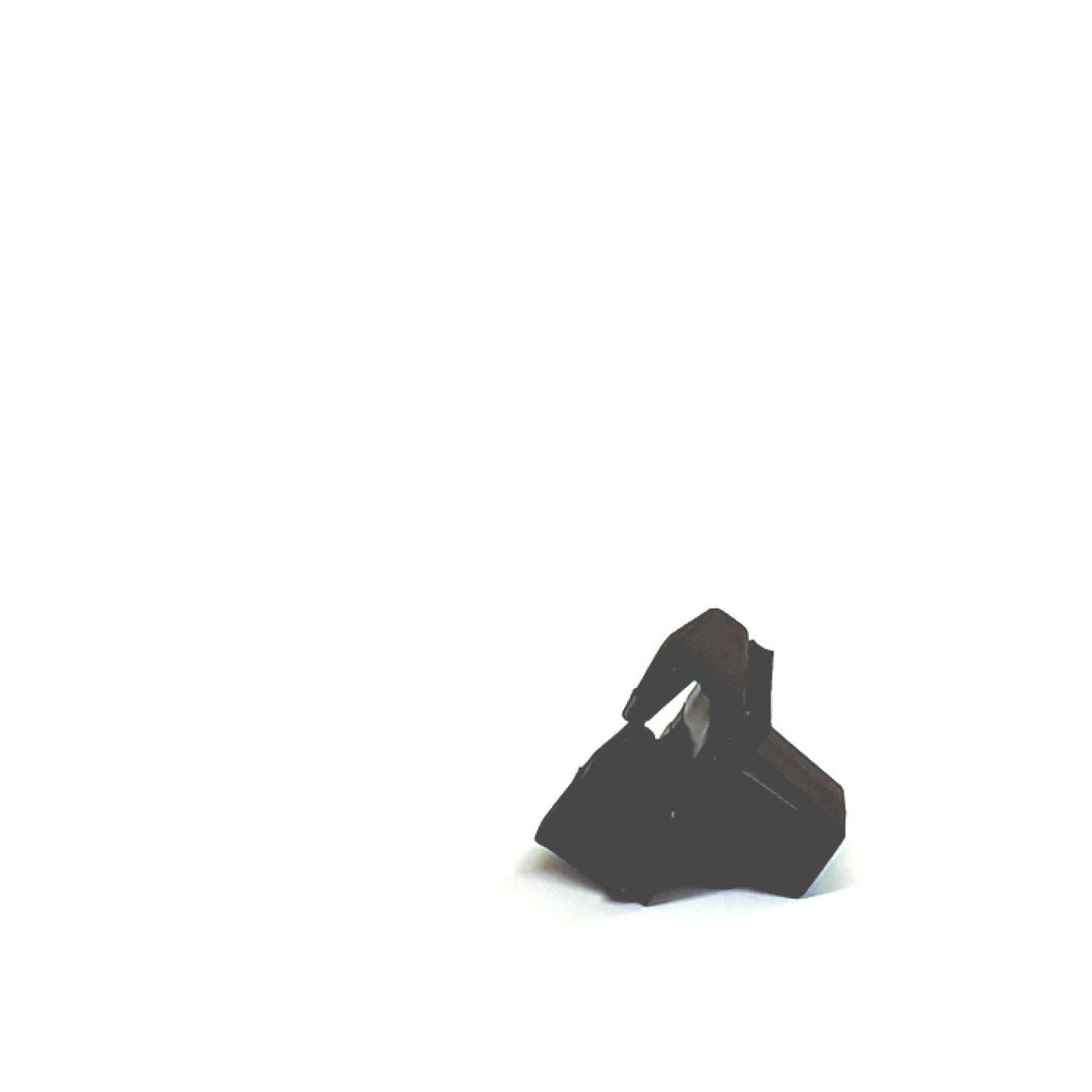

Genuine VW/Audi tail light mount, part number 5K0-945-246-A. This mounting piece secures the outer rear lamp assembly at the quarter panel on the specified Mk6 hatchbacks. Its molded locating and retaining features help keep the lamp supported in its assigned mounting position.
Technical details
- Original part number: 5K0-945-246-A / 5K0945246A.
- Mechanical mount for the outer tail lamp assembly on the quarter panel.
- Cataloged for driver-side and passenger-side mounting locations where this part is specified.
- Separate from the lamp housing, bulb carrier, wiring connector and lamp seal.
- Supplied as one mount; lamp assemblies and additional fasteners are not included.
Common reasons to replace
A cracked mounting piece, broken retaining feature or damage during lamp removal can leave the assembly loose or prevent it from seating correctly. A rattle at the rear lamp, movement when the assembly is gently checked, or uneven alignment at the surrounding bodywork warrants inspection of the mount and the other attachment points.
Those symptoms do not identify this mount as the only possible fault. Inspect the lamp housing, fasteners and body attachment points before ordering. If water enters the lamp or luggage compartment, check the lamp seal and housing as well; replacing this mount alone does not repair a failed seal or cracked lens.
Installation and service notes
Confirm the outer lamp mounting diagram for the vehicle and compare the removed piece with this part number. This mount is assigned to the quarter-panel lamp, rather than the separate lamp on the liftgate. Support the assembly during removal, protect the surrounding paint and release the electrical connector without pulling on its wires.
Seat the mount in its intended position and reinstall the lamp using the vehicle-specific procedure. Avoid forcing the molded features or overtightening the attachment hardware. Check lamp alignment, secure retention and lighting operation after installation.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2010–2014 | 2.5L gasoline | Mk6 hatchback; Manual or automatic where offered | Outer tail lamp on quarter panel; confirm mounting assignment by VIN and installed lamp. Not the liftgate lamp mount. |
| Volkswagen Golf TDI | 2010–2014 | 2.0L TDI diesel | Mk6 hatchback; Manual or automatic where offered | Outer tail lamp on quarter panel; confirm mounting assignment by VIN and installed lamp. Not the liftgate lamp mount. |
| Volkswagen GTI | 2010–2014 | 2.0L turbo gasoline | Mk6 hatchback; Manual or automatic where offered | Outer tail lamp on quarter panel; confirm mounting assignment by VIN and installed lamp. Not the liftgate lamp mount. |
| Volkswagen Golf R | 2012–2013 | 2.0L turbo gasoline | Mk6 hatchback; Six-speed manual; 4Motion | Outer tail lamp on quarter panel; confirm mounting assignment by VIN and installed lamp. Not the liftgate lamp mount. |
Confirm the mounting assignment by VIN and installed lamp before ordering. Model-year fitment does not make this mount interchangeable with the liftgate lamp hardware.
