OVERVIEW
Restore the captive threaded body trim attachment

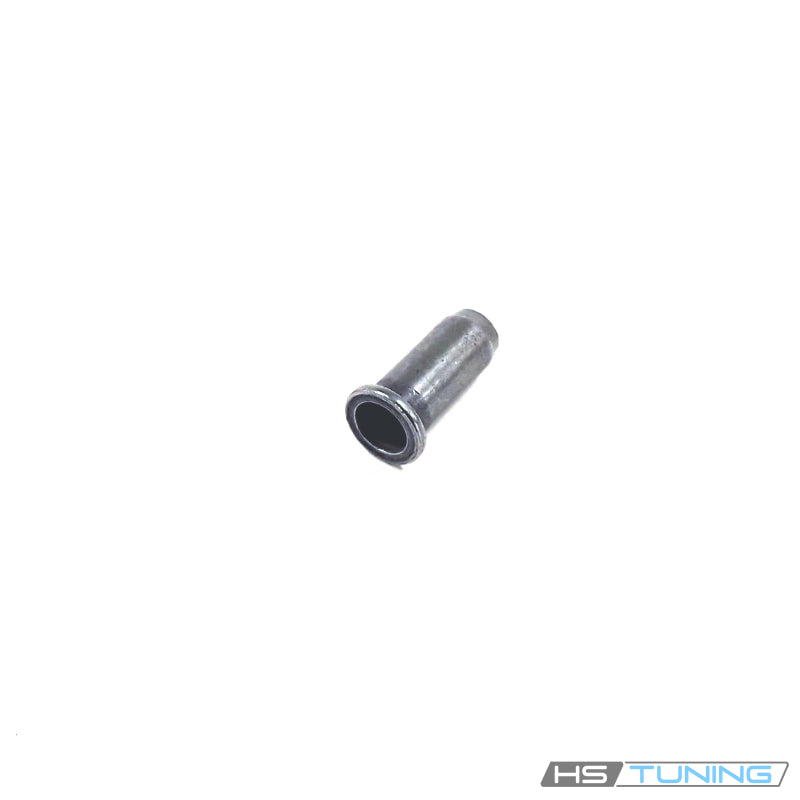

6L0-809-864 is the Genuine VW/Audi M6 rivet nut used at the body trim and side-panel insert positions listed below. The insert provides a captive receiving thread within the original mounting opening.
A securely set insert lets its mating fastener clamp the attached component without needing a loose nut behind the panel. Its body and retaining flange must match the original receiving area and factory setting procedure.
Technical details
- Complete factory number: 6L0-809-864.
- Factory specification: M6; complete catalog designation M6/1–4-F.
- Design: flanged rivetted threaded insert.
- Quantity supplied: one individual rivet nut.
Match the complete original part number and attachment position. The receiving thread size alone does not establish interchangeability with other M6 rivet inserts or later part revisions.
Common reasons to replace
- The insert turns in its mounting opening.
- The receiving thread is stripped or damaged.
- The original insert is missing after trim or body repair.
- The insert body or retaining flange is distorted.
- The factory body repair procedure calls for a new insert.
Inspect the mounting hole and surrounding panel material. A distorted or enlarged opening requires the specified repair before a new insert can retain securely.
Vehicle fitment
The table retains the A8 L wheelbase restriction and the confirmed Passat side-panel applications. Confirm the original insert number and location.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A8 L | 2005 | 4.2L gasoline V8; 6.0L W12 | D3; quattro; long wheelbase; K8L; Assigned side-member trim insert | Long-wheelbase K8L trim attachment only; match original M6/1–4-F insert position. |
| Audi A8 L | 2010 | 4.2L FSI gasoline V8 | D3; quattro; long wheelbase; K8L; Assigned side-member trim insert | VIN 4E-A-000001 through 4E-A-020000; K8L long-wheelbase trim attachment. |
| Volkswagen Passat | 2008 | 2.0L turbocharged gasoline I4; 3.6L gasoline VR6 | B6 sedan or wagon; Assigned side-panel body insert | Original M6/1–4-F side-panel insert position only. |
| Volkswagen Passat | 2009–2010 | 2.0L turbocharged gasoline I4 | B6 sedan or wagon; Assigned side-panel body insert | Original M6/1–4-F side-panel insert position only. |
Installation guidance
Follow the factory body repair instructions and use the correct rivet-nut setting tool. Prepare the original opening, set the insert as specified and restore the prescribed protective finish.
Check seating and retention before assembling the mating connection. Refit the attached trim evenly and renew any separately damaged clips or mounting parts.
Ordering information
One genuine rivet nut supplied. Trim, panels, screws and setting tools are separate. This listing is for the original 6L0-809-864 revision; confirm the exact part needed for the repair.
