OVERVIEW

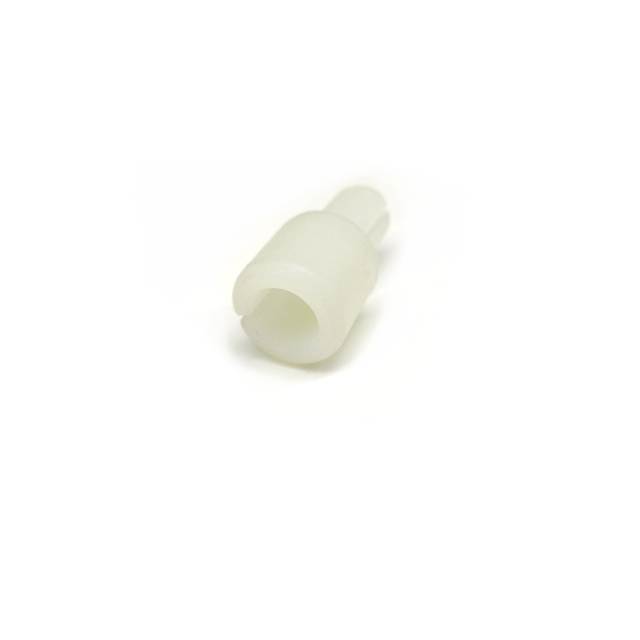

Genuine VW/Audi door window retaining pin, part number 6N0-839-511. This pin is used at the matching rear-door glass attachment to the window regulator. The expanding-pin connection holds the glass at its carrier so regulator movement raises and lowers the glass with it.
Technical details
- Original part number: 6N0-839-511 / 6N0839511.
- Retaining pin for the specified rear-door glass-to-regulator connection.
- Supplied as one pin assembly, as pictured. Glass, regulator, motor and door trim are separate.
- Verify the installed carrier and connection before ordering; front-door and other regulator designs can use different hardware.
Common reasons to replace
A loose, missing or damaged retaining pin can allow the glass to separate from its carrier. Replacement may be needed during regulator work or when the attachment no longer holds securely.
Inspect the connection if the motor operates while the glass stays still or the glass slips into the door. Cable damage, a failed motor or binding guides can also prevent window operation. Check the regulator and the glass attachment before choosing replacement parts.
Installation and service notes
Support the glass while accessing the attachment. Follow the vehicle-specific door disassembly procedure and inspect the glass mounting hole, carrier and surrounding guides. A damaged mating component must be addressed before the new pin is fitted.
Use the current factory procedure for seating the expanding-pin connection. Some documented repairs require additional retention treatment; this listing supplies the pin only. Keep the glass aligned, check the completed joint and verify smooth window travel before refitting the door trim. The attachment must remain secure throughout operation.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta | 1999–2016 | All engines for the specified rear-door assembly | Sedan; rear door glass with specified expanding-pin connection; All transmissions for the specified rear-door assembly | Sedan; rear door glass with specified expanding-pin connection; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Passat | 1998–2010 | All engines for the specified rear-door assembly | Sedan / wagon; rear door glass with specified expanding-pin connection; All transmissions for the specified rear-door assembly | Sedan / wagon; rear door glass with specified expanding-pin connection; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Tiguan | 2009–2017 | All engines for the specified rear-door assembly | First generation; left or right rear door glass; All transmissions for the specified rear-door assembly | First generation; left or right rear door glass; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Golf | 1999–2006; 2010–2014 | All engines for the specified rear-door assembly | Four-door hatchback; rear door glass; match installed carrier; All transmissions for the specified rear-door assembly | Four-door hatchback; rear door glass; match installed carrier; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen GTI | 2007–2014 | 2.0L turbo gasoline | Four-door hatchback only; rear door glass; All transmissions for the specified rear-door assembly | Four-door hatchback only; rear door glass; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Golf R | 2012–2013 | 2.0L turbo gasoline | Four-door hatchback; rear door glass; Six-speed manual; 4Motion | Four-door hatchback; rear door glass; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Jetta Wagon | 2001–2005 | All engines for the specified rear-door assembly | Rear door glass; match installed carrier; All transmissions for the specified rear-door assembly | Rear door glass; match installed carrier; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Jetta SportWagen | 2009–2014 | All engines for the specified rear-door assembly | Rear door glass; match installed carrier; All transmissions for the specified rear-door assembly | Rear door glass; match installed carrier; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Passat | 2012 | All engines for the specified rear-door assembly | Rear door glass; factory bulletin VIN range A3_CC000001 through A3_CC079113; All transmissions for the specified rear-door assembly | Rear door glass; factory bulletin VIN range A3_CC000001 through A3_CC079113; installed connection must specify 6N0839511. One pin supplied. |
| Volkswagen Tiguan Limited | 2017–2018 | 2.0L turbo gasoline | First-generation carryover SUV; left or right rear door glass; Automatic; drive configuration does not determine this pin | Tiguan Limited only; confirm rear glass/regulator uses 6N0839511. Do not apply to the second-generation Tiguan merely by model year. |
| Volkswagen Rabbit | 2006–2009 | 2.5L gasoline inline-5 | Four-door hatchback; rear door glass only; Manual / automatic | Confirm expanding-pin glass-to-regulator connection specifies 6N0839511; excludes two-door body applications. |
Engine and transmission do not change the listed rear-door attachment assignment. Confirm the installed regulator connection and original part number.
