OVERVIEW
Restore the original rear shock cap arrangement

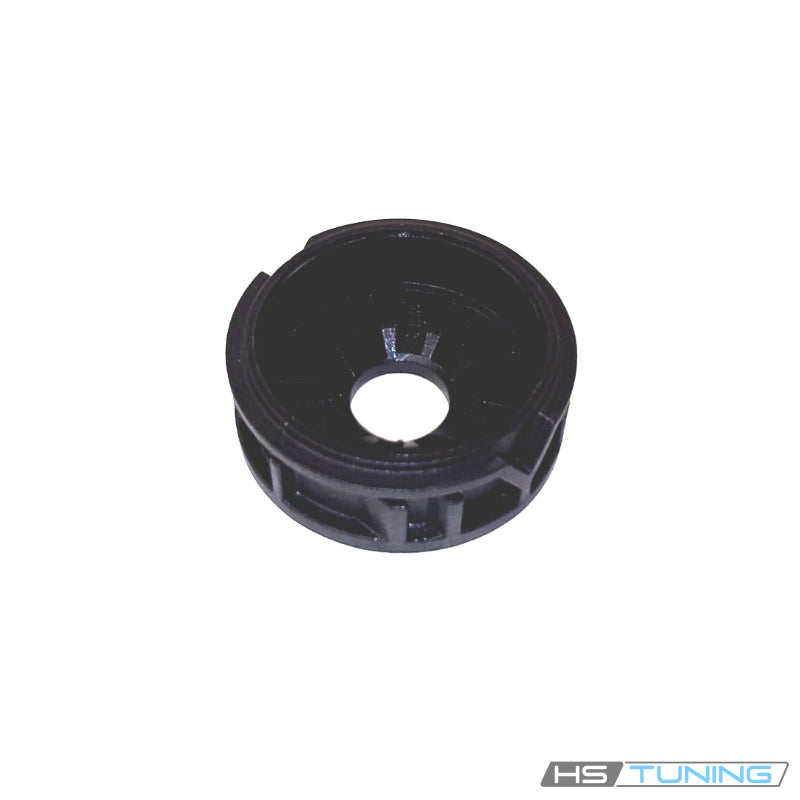

6Q0-513-269-L is the Genuine VW/Audi rear shock absorber cap used at the assigned rear damper position on the applications below. Its molded cup shape and central opening match the original cap arrangement.
A damaged cap should be assessed with the surrounding shock protection and mounting components. This individual component allows replacement of the cap when the damper and other serviceable parts can remain in use.
Technical details
- Complete factory number: 6Q0-513-269-L.
- Factory specification: rear shock absorber cap 6Q0513269L.
- Design: molded cup-shaped cap with central opening and reinforcing features.
- Quantity supplied: one individual rear shock absorber cap.
This cap is separate from the shock absorber, upper mount, bump stop and protective tube. Confirm the original assembly and applicable factory supersession before ordering; similar-looking suspension caps can serve different positions.
Common reasons to replace
- The original cap is cracked or broken around its center or rim.
- Retaining or locating features are damaged during suspension service.
- The cap is missing from the original shock assembly.
- Inspection during shock or dust-protection replacement identifies a worn or distorted cap.
Inspect the shock for oil leakage and the mount, bump stop and protective tube for damage. Replacing the cap alone does not correct damper wear, loose mounting hardware or a failed suspension bushing.
Vehicle fitment
Applications below require the specified rear shock cap arrangement. Front-wheel-drive Passat fitment does not establish compatibility with 4Motion, and the Golf/GTI entries exclude R32.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2000–2001, 2003–2006 | 2.0L gasoline or 1.9L TDI diesel | Mk4 hatchback; front-wheel drive | Rear shock cap; without R32; original assigned cap position only. |
| Volkswagen GTI | 2003–2005 | 1.8L turbo gasoline or 2.8L VR6 gasoline | Mk4 hatchback; front-wheel drive | Rear shock cap; without R32; original cap 6Q0513269L or confirmed supersession. |
| Volkswagen Passat | 1999–2000 | 1.8L turbo gasoline or 2.8L V6 gasoline | B5 sedan or wagon; front-wheel drive | Without AWD; rear shock cap at original assigned position. |
| Volkswagen New Beetle | 2009–2010 | 2.5L gasoline five-cylinder | Hatchback or convertible; front-wheel drive | Rear shock cap; match original cap and shock assembly. |
Installation guidance
Use the vehicle-specific rear suspension procedure and support the vehicle and suspension securely. Assemble the cap with the correct protection and mounting components in the original order. Replace any hardware designated for single use and apply the prescribed tightening procedure.
Check that the cap is seated correctly and surrounding protective parts move and locate as intended. Inspect both rear shock assemblies to determine whether any additional components require replacement.
Ordering information
One individual genuine rear shock absorber cap. Shock absorber, mount, bump stop, tube and fasteners are separate. Confirm VIN and original cap number.
