OVERVIEW

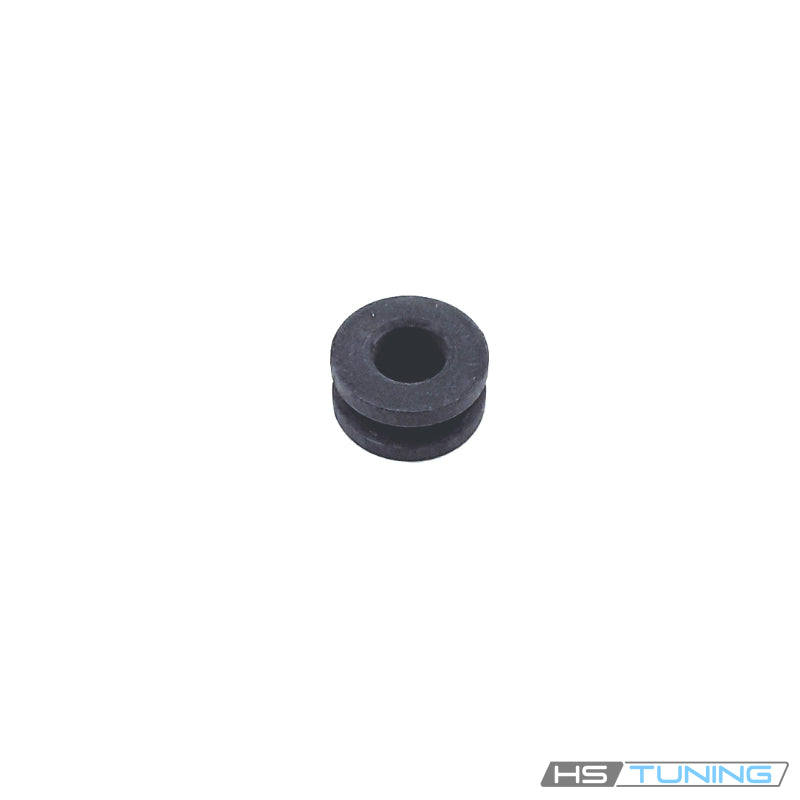

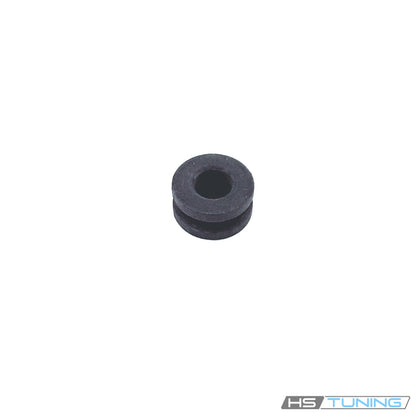

Genuine VW/Audi 701-955-754 is an individual mounting grommet for the matching original wiper linkage/frame assembly. It renews the assigned grommet at that mounting point on the confirmed vehicle profiles below.
Technical details and what is included
- Factory part number: 701-955-754 / 701955754.
- Component type: wiper-linkage/frame mounting grommet.
- Factory nominal designation: 14 × 9.5 mm.
- Quantity supplied: one individual grommet.
- The associated bushing/sleeve, mounting bolts and complete wiper linkage are separate components.
The nominal factory designation identifies the mounting component, not a packaged shipping measurement. Compare the original grommet, sleeve and receiving profile before installation. This mounting grommet is separately specified from a washer-pump seal, wiper-shaft seal or linkage joint.
Common reasons to replace
- The original mounting grommet is split or physically damaged.
- Deformation prevents the original mounting from seating correctly.
- The grommet is missing after wiper-frame service.
- A diagnosed mounting repair calls for renewal of this grommet.
Inspect the linkage/frame, sleeve and mounting hardware separately. Worn pivots, seized linkage or a defective motor require their own repair. Replacing a mounting grommet will not correct those faults, so identify the source of looseness or abnormal wiper operation before choosing parts.
Vehicle fitment
These profiles require the original matching wiper-frame mounting arrangement. On the split 1999 model year Jetta, the listed VIN breakpoint identifies the Mk4 arrangement.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi TT | 2000–2006 | 1.8L turbocharged gasoline inline-four | 8N coupe; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Audi TT | 2001–2006 | 1.8L turbocharged gasoline inline-four | 8N coupe or Roadster; quattro; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Audi TT | 2001–2006 | 1.8L turbocharged gasoline inline-four | 8N Roadster; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Audi TT | 2004–2006 | 3.2L gasoline VR6 | 8N coupe; quattro; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen Golf | 2001 | 2.0L gasoline inline-four | Mk4 hatchback; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen Golf | 2001 | 1.9L TDI diesel inline-four | Mk4 hatchback; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen GTI | 2001 | 1.8L turbocharged gasoline inline-four | Mk4 hatchback; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen GTI | 2001 | 2.8L gasoline VR6 | Mk4 hatchback; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen Jetta | 1999.5 | 2.0L gasoline inline-four | Mk4 sedan; VIN from 9MX000001; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen Jetta | 1999.5 | 1.9L TDI diesel inline-four | Mk4 sedan; VIN from 9MX000001; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen Jetta | 1999.5 | 2.8L gasoline VR6 | Mk4 sedan; VIN from 9MX000001; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen Golf | 1995 | 2.0L gasoline inline-four | Mk3 hatchback; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
| Volkswagen GTI | 1995 | 2.0L gasoline inline-four or 2.8L gasoline VR6 | Mk3 hatchback; front-wheel drive; Original factory transmission; original wiper-frame mounting determines fitment | Original wiper linkage/frame mounting grommet assigned 701955754, nominal 14 × 9.5 mm. Match mounting profile and original sleeve. One grommet supplied; bushing/sleeve, bolts and complete linkage separate. |
Installation and service guidance
Follow the factory wiper linkage/frame access and removal procedure. Preserve the required park position and component alignment before disturbing the assembly.
Inspect the receiving mount and separately specified sleeve, compare the new grommet with the original and install it without cutting or distorting the mounting profile. Assemble the prescribed sleeve and hardware according to the repair information.
Verify correct mounting and clearance before operating the wipers, then complete the factory park-position and sweep checks. Keep the mounting hardware and linkage adjustment requirements separate from the grommet itself.
Use the vehicle repair information for exact hardware specifications, assembly positioning and test requirements. A vehicle may use more than one grommet, but this listing supplies one individual piece.
