OVERVIEW
Factory hardware for the rear parking-brake shoes
7L0-698-545-A is a Genuine VW/Audi parking-brake hardware kit for the original drum-in-hat parking brake used on the Q7 and Touareg applications below. The parking-brake shoes sit inside the rear rotor hat; their return springs and hold-down hardware perform a different job from the rear disc-brake pad fittings.
This kit renews the small retaining components that locate the shoes against the backing plates and pull them back after the parking brake releases. Correct spring placement and secure pin engagement help the shoes remain in position with the specified running clearance.
Technical details and contents

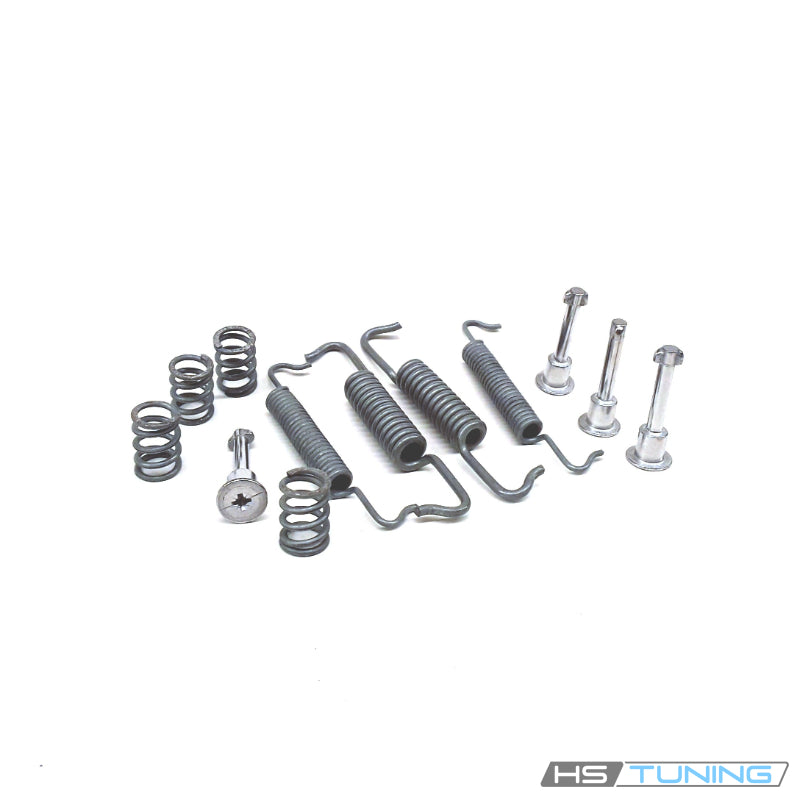

- Factory part number: 7L0-698-545-A.
- Four shoe-retaining pins.
- Four tension/return springs.
- Four pressure/hold-down springs.
- One hardware kit contains the pictured components for both rear parking-brake assemblies.
- New and unused Genuine VW/Audi inventory.
The kit contains parking-brake shoe hardware. Shoes, rotors, backing plates, adjusters, cables, expanders and caliper pad fittings are separate parts. Match the original spring and pin arrangement before installation. No unverified spring rate, material grade, coating specification or packaged shipping dimensions are claimed.
Common reasons to replace
- Corroded, broken or distorted return springs found during rear rotor or parking-brake service.
- Hold-down springs that have lost their shape or no longer lock securely onto the retaining pins.
- Damaged or missing pins following removal of a seized rear rotor.
- Incomplete or mismatched hardware left from an earlier shoe replacement.
Dragging, rattling or poor parking-brake holding can have several causes. Inspect the shoe linings, rotor parking-brake surface, backing-plate pin seats, adjusters, cables and operating mechanism. New springs cannot correct worn shoes, damaged backing plates or a seized cable.
Vehicle fitment
Use the table with the vehicle’s VIN and original brake hardware. The model and engine alone do not identify every brake configuration.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q7 | 2007–2010 | 3.6L V6 gasoline | 4L sport utility, quattro | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Audi Q7 | 2007–2010 | 4.2L V8 gasoline | 4L sport utility, quattro | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Audi Q7 | 2009–2015 | 3.0L V6 TDI diesel | 4L sport utility, quattro | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Audi Q7 | 2011–2015 | 3.0L V6 supercharged gasoline | 4L sport utility, quattro | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Volkswagen Touareg | 2004–2006 | 3.2L VR6 gasoline | 7L sport utility, 4Motion | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Volkswagen Touareg | 2007–2010 | 3.6L VR6 gasoline | 7L sport utility, 4Motion | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Volkswagen Touareg | 2004–2009 | 4.2L V8 gasoline | 7L sport utility, 4Motion | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Volkswagen Touareg | 2004 | 5.0L V10 TDI diesel | 7L sport utility, 4Motion | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Volkswagen Touareg | 2006–2008 | 5.0L V10 TDI diesel | 7L sport utility, 4Motion | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
| Volkswagen Touareg | 2009–2010 | 3.0L V6 TDI diesel | 7L sport utility, 4Motion | Original rear drum-in-hat parking-brake shoe hardware specifying 7L0-698-545-A. Match VIN, brake equipment and original hardware. Excludes later Touareg 7P and Q7 4M. |
Installation guidance
Follow the factory procedure for the exact rear brake assembly. Support the vehicle correctly, release the parking-brake mechanism as directed and preserve the original spring orientation. Inspect the backing plates where the pins seat before fitting the new hardware. Replace damaged supporting parts rather than forcing the retainers into place.
Keep grease and other contamination away from the shoe linings and rotor friction surfaces. After assembly, set shoe clearance and parking-brake adjustment using the factory procedure, then verify free rotation with the brake released and correct holding action before returning the vehicle to service.
Part-number reference and ordering
7L0-698-545-A is the later service number for the earlier 7L0-698-545 parking-brake hardware reference. The unsuffixed number is included to help identify the superseded catalog reference; this listing is for 7L0-698-545-A.
Sold as one hardware kit. Confirm the complete part number, VIN, brake equipment and pictured contents before ordering.
