OVERVIEW
Genuine VW/Audi Interior Trim Retaining Clip
7L0-867-300 is the genuine formed retaining clip used at assigned interior trim attachment points. Its retaining tabs engage the matched trim and receiving slot to help keep the panel or molding positioned in the original assembly. Applications include specific roof-opening, pillar and door trim arrangements rather than every trim attachment on the vehicle.
This listing supplies one individual clip. The trim panel, molding, receiving bracket and other attachment hardware are separate. Some catalog locations require two clips; order the quantity needed for the actual repair.
Technical details
- OEM number: 7L0-867-300 / 7L0867300.

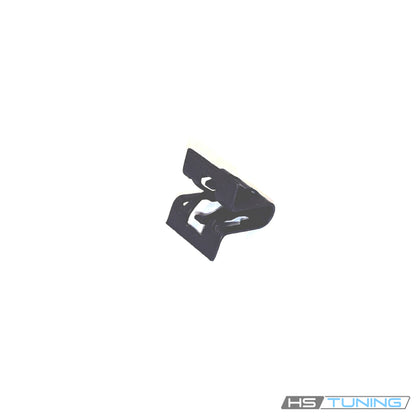

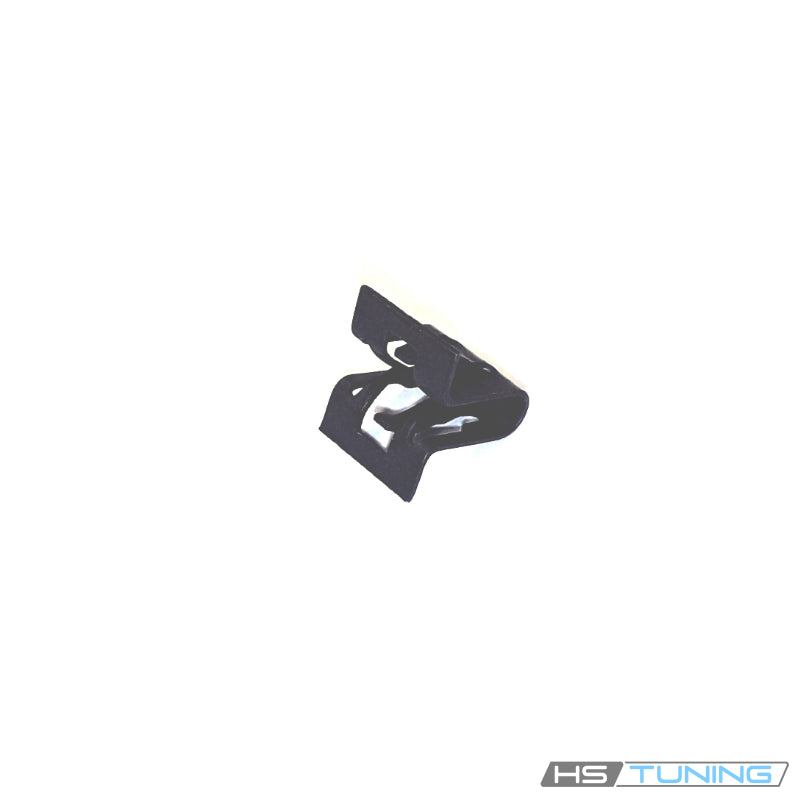

- Design: Formed metal retaining clip with the tabs and engagement openings shown in the archive photograph.
- Function: Retention at the original assigned interior trim slot.
- Quantity: One clip per purchased unit.
- Application control: Trim configuration, clip position, receiving slot and factory part assignment.
- Engine relationship: This is interior attachment hardware; the matched trim arrangement determines application.
Interior trim assemblies often contain several clips with different shapes and engagement requirements. A clip that looks similar may not seat correctly or may load the trim differently. Match the complete OEM number and the actual attachment point before installation. This part is not a universal push rivet or a replacement for every clip in the trim panel.
Common reasons to replace
Replace a clip that is missing, bent, broken, distorted or no longer retains the trim correctly. Replacement may be needed after trim removal for access to wiring, roof-opening components or adjacent interior fittings. A damaged retaining tab can prevent the panel from seating flush or contribute to a loose molding or rattle.
Inspect the trim’s own mounting feature and the receiving slot as well. A broken panel tab or distorted receiving bracket requires a separate repair; installing a new clip alone will not restore a damaged interface. Identify the correct source of movement before replacing other attachments unnecessarily.
Fitment
The table identifies confirmed vehicle and trim arrangements using this exact clip. Verify the installed trim and specific factory attachment point. The clip is supplied individually even when the indicated assembly uses more than one.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Touareg | 2004–2010 | Engine-independent interior trim attachment | 7L SUV; original rear roof-opening/interior trim arrangement; No drivetrain or transmission-specific restriction listed for the trim clip | Original trim position assigned 7L0867300; match the trim slot and receiving attachment. Catalog assembly uses two at the indicated location; one clip supplied. |
| Volkswagen Eos | 2007–2015 | Engine-independent interior trim attachment | Convertible; left-hand drive; original door/interior trim arrangement; No drivetrain or transmission-specific restriction listed for the trim clip | Original interior trim position assigned 7L0867300, including position 30 in the applicable diagram. Match trim and receiving slot; one clip supplied. |
| Audi Q7 | 2007–2015 | Engine-independent interior trim attachment | 4L SUV; left-hand drive; original roof-opening/pillar trim arrangement; No drivetrain or transmission-specific restriction listed for the trim clip | Original interior trim point assigned 7L0867300; applicable catalog position 31 with PR L0L. Match fitted trim and receiving slot; one clip supplied. |
Installation and service guidance
Follow the factory procedure for removing the relevant trim. Use suitable trim tools and release the panel at the specified locations to avoid damaging surrounding surfaces or mounting tabs. Where the repair involves pillar trim or nearby restraint components, follow the vehicle’s separate access and handling procedure.
Inspect the receiving slot, panel attachment and replacement clip before fitting. Position the clip in its original orientation and ensure that its tabs engage the correct features. Do not bend it into a different shape or substitute adhesive for the required mechanical attachment.
Refit the trim evenly and check that it seats correctly with the adjacent panels. Verify secure retention and clearance before completing the repair. This small clip does not replace a damaged trim panel, repair a sunroof mechanism or correct faults in nearby wiring or restraint components.
