OVERVIEW

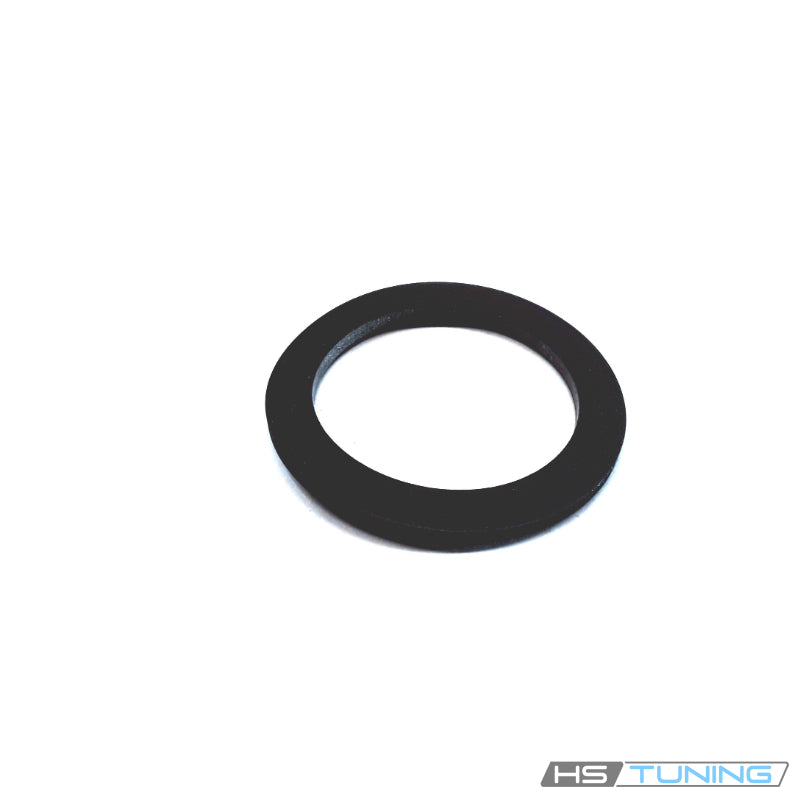

Genuine VW/Audi brake fluid reservoir cap seal
893-611-347 is the individual seal for the assigned brake-fluid reservoir cap arrangement. It is cataloged separately from the cap, fluid-level sender and reservoir.
The listing supplies one seal only. Match the original cap and sealing profile before ordering, particularly when the cap has previously been replaced with another design.
Technical details and supplied quantity
- Manufacturer part number: 893-611-347; compact reference 893611347.
- Brand: Genuine VW/Audi.
- Component: brake-fluid reservoir cap seal / gasket.
- Application: the original cap sealing location assigned this exact part.
- Quantity: one individual seal per purchase.
The cap, sender contacts and reservoir are separate components. This seal is also distinct from the reservoir-to-master-cylinder grommets and the gasket between the brake servo and master cylinder.
Common reasons to replace
- The original cap seal is missing.
- The seal is split, distorted or otherwise damaged.
- Inspection identifies deterioration that prevents the correct cap seal from seating properly.
- Reservoir-cap servicing requires replacement of the assigned separate seal.
Inspect the cap and reservoir sealing surfaces as well. A damaged cap, reservoir neck or fluid-level sender requires its own repair. Brake-fluid loss must be traced to its actual source; this seal does not repair a leaking hydraulic line, master cylinder or caliper.
Vehicle fitment
These applications require the original reservoir-cap sealing arrangement specified for 893611347. Confirm the installed cap design before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 1987–1992 | 1.8L gasoline I4; original GL/GTI variant as equipped | Mk2 Hatchback; front-wheel drive; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen GTI | 1990–1992 | 2.0L 16-valve gasoline I4 | Mk2 Hatchback; front-wheel drive; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen Golf | 1993–1999 | 2.0L gasoline I4 | Mk3 Hatchback; front-wheel drive; 1999 early Mk3 only; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen GTI VR6 | 1995–1999 | 2.8L gasoline VR6 | Mk3 Hatchback; front-wheel drive; 1999 early Mk3 only; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen Golf | 1999 | 1.9L TDI diesel I4; AHU | Mk3 Hatchback; front-wheel drive; 1999 early Mk3 only; Original factory manual or automatic as offered; reservoir cap design determines fitment | 1999 early Mk3/AHU only; later Mk4/ALH arrangement requires separate confirmation. Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen Passat | 1998–2005 | 1.8L turbocharged gasoline I4 | B5/B5.5 Sedan or Wagon; front-wheel drive; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen Passat | 1998–2005 | 2.8L gasoline V6 | B5/B5.5 Sedan or Wagon; original front-wheel drive or 4Motion as offered; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen Passat | 2002–2004 | 4.0L gasoline W8 | B5.5 Sedan or Wagon; 4Motion; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen Passat | 2004–2005 | 2.0L TDI diesel I4; BHW | B5.5 Sedan or Wagon; front-wheel drive; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Volkswagen Phaeton | 2004–2006 | 4.2L gasoline V8 or 6.0L gasoline W12 | D1 Sedan; 4Motion; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
| Audi A8 | 1999 | 4.2L gasoline V8 | D2 Sedan; quattro; Original factory manual or automatic as offered; reservoir cap design determines fitment | Only the original brake-fluid reservoir cap sealing location assigned 893611347. Match the cap and seal profile; later replacement caps may use a different supplied seal. One individual seal supplied, without cap, level sender, reservoir or brake fluid. Not the reservoir-to-master-cylinder grommet or servo/master-cylinder gasket. |
Installation and service guidance
Follow the factory procedure for the affected reservoir and cap. Keep the opening and surrounding area clean, protect nearby surfaces and prevent contamination of the fluid. Inspect the cap's seal seat and the matching reservoir surface before fitting the replacement.
Seat the correct seal in its prescribed location without twisting or damaging it. Use only separately specified repair materials and avoid introducing unsuitable lubricants or debris into the reservoir.
Reinstall the cap according to the applicable instructions and confirm correct seating. Check the fluid level and any disturbed level-sender connection, then complete the prescribed inspection and brake-system checks before returning the vehicle to service.
