OVERVIEW
Red lever for the automatic climate-control defroster flap
8D1-820-553 is a Genuine VW/Audi mechanical lever used in the original electronically regulated climate-control system. It transfers movement from the servo linkage to the defroster flap, allowing the system to direct airflow toward the windshield when commanded.
The lever is identified by its red color and its specific hub and linkage geometry. Several similar levers are used around the HVAC housing. Match the complete number and the original red defroster lever; color alone does not establish interchangeability.
Technical details
- Factory part number: 8D1-820-553.
- Function: mechanical defroster-flap operating lever.

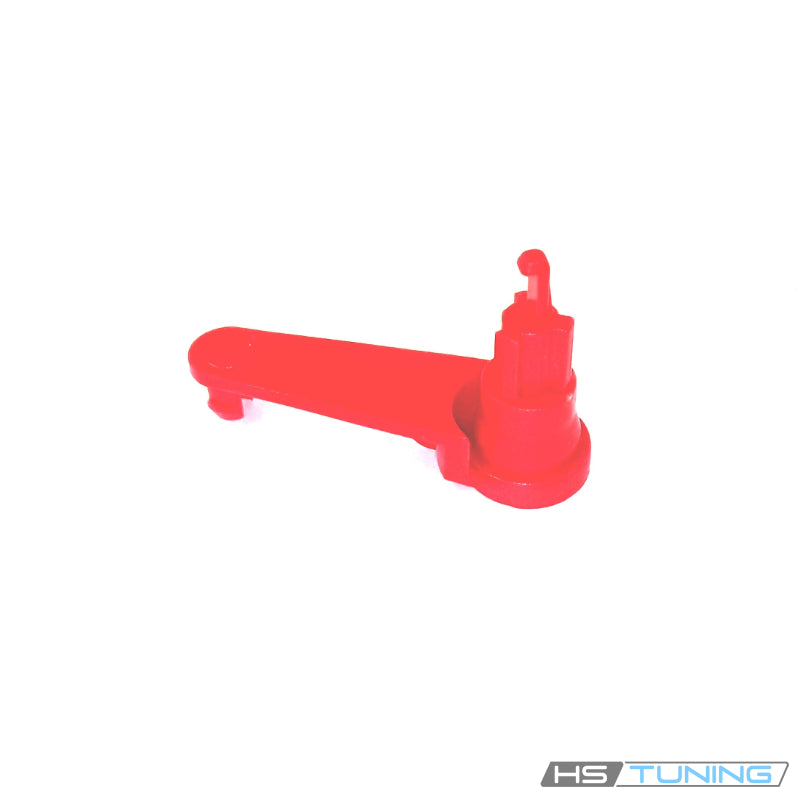

- Design: red molded lever with the hub and linkage connection shown in the original product photo.
- System: specified factory automatic/electronically regulated air conditioning.
- Quantity: one individual lever.
The servo motor, electrical position sensor, connecting rods, HVAC housing and other flap levers are separate components. This lever is a mechanical part, so replacing it does not repair an electrical fault in the actuator or climate-control module.
Common reasons to replace
- A cracked hub or broken arm that no longer transfers actuator movement to the flap.
- A damaged linkage connection that allows the operating rod to detach.
- Wear or damage at the lever interface discovered while diagnosing incorrect air distribution.
- A missing lever or a mismatched substitute installed during an earlier HVAC repair.
Restricted windshield airflow, a flap that stays in one position or repeated actuator movement can also result from a seized flap, damaged rod, failed servo or a control-system fault. Inspect the complete linkage and verify that the flap moves correctly before fitting a new lever. A new lever should not be used to force a binding flap.
Vehicle fitment
Factory climate-control equipment and the original lever number are essential fitment checks. Apply the production restriction where shown.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 / A4 Avant | 1998–2001 | 1.8L turbocharged gasoline | B5, front-wheel drive or quattro; sedan or Avant | Left-hand-drive vehicle with original electronically regulated/automatic climate control and red defroster-flap lever 8D1-820-553. Match lever color, keyed hub and linkage. Not the air-distribution lever or a manual-climate linkage. From VIN 8D-W-007800; 1998 is a production split. |
| Audi A4 / A4 Avant | 1998–2001 | 2.8L V6 gasoline, 30-valve | B5, front-wheel drive or quattro; sedan or Avant | Left-hand-drive vehicle with original electronically regulated/automatic climate control and red defroster-flap lever 8D1-820-553. Match lever color, keyed hub and linkage. Not the air-distribution lever or a manual-climate linkage. Match the original 30-valve application; earlier 12-valve engines are not included. |
| Audi S4 | 2000–2002 | 2.7L twin-turbo V6 gasoline | B5 quattro sedan | Left-hand-drive vehicle with original electronically regulated/automatic climate control and red defroster-flap lever 8D1-820-553. Match lever color, keyed hub and linkage. Not the air-distribution lever or a manual-climate linkage. |
| Audi S4 Avant | 2001–2002 | 2.7L twin-turbo V6 gasoline | B5 quattro Avant | Left-hand-drive vehicle with original electronically regulated/automatic climate control and red defroster-flap lever 8D1-820-553. Match lever color, keyed hub and linkage. Not the air-distribution lever or a manual-climate linkage. |
| Volkswagen Passat / Passat Wagon | 1998–2005 | Original engine as equipped; automatic climate-control hardware determines application | B5/B5.5 sedan or wagon, front-wheel drive or 4Motion as originally equipped | Left-hand-drive vehicle with original electronically regulated/automatic climate control and red defroster-flap lever 8D1-820-553. Match lever color, keyed hub and linkage. Not the air-distribution lever or a manual-climate linkage. Requires factory automatic A/C/electronic regulation; excludes manual A/C hardware. |
Installation guidance
Use the vehicle-specific HVAC service procedure to access the lever and position the flap and actuator. Preserve the original linkage orientation and engagement points. Inspect the mating shaft, connecting rod and other nearby levers for damage before assembly.
Seat the replacement correctly without forcing its molded connections. Complete the applicable climate-control basic-setting or adaptation procedure when required by the factory repair instructions. Check the full air-distribution range, including windshield defrost, after reassembly.
Ordering information
New and unused Genuine VW/Audi inventory, sold individually as 8D1-820-553. Confirm VIN, original climate-control equipment, red lever location, complete factory number and linkage geometry before ordering.
