OVERVIEW
Genuine VW/Audi Rear Wiper Shaft Grommet
8D9-955-758-A is the genuine sealing grommet for the assigned rear-wiper shaft opening. It sits around the shaft at the rear glass or hatch attachment and seals the opening in the original wiper arrangement. Its molded profile must match the factory glass, shaft and opening assignment.

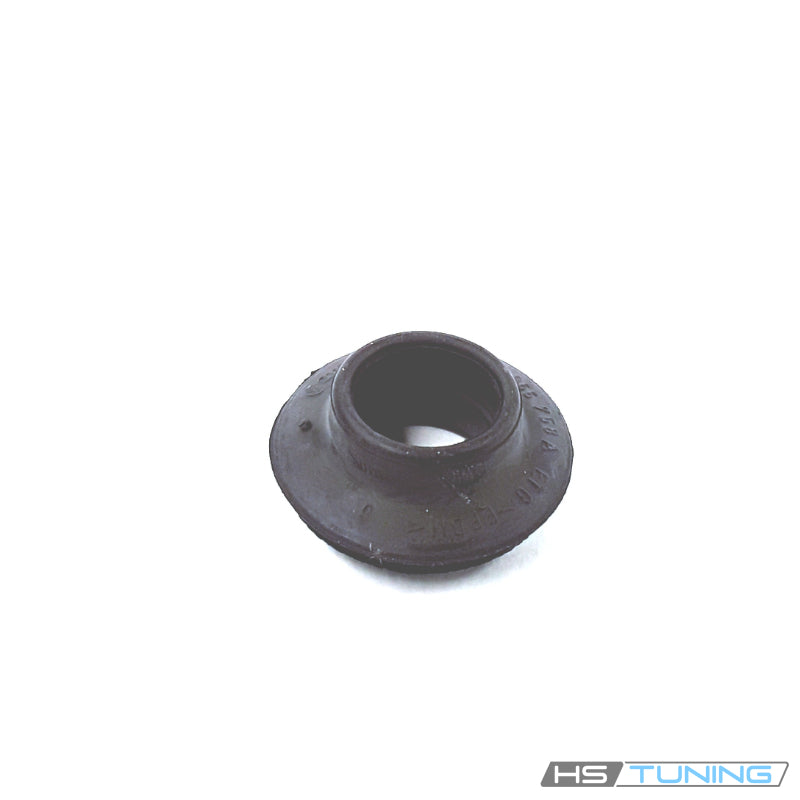

One individual grommet is supplied per purchased unit, as shown in the original archive photograph. Rear glass, the wiper motor, shaft, arm, nut, washer nozzle and surrounding trim are separate components.
Technical details
- OEM number: 8D9-955-758-A / 8D9955758A.
- Position: Rear-wiper shaft opening.
- Function: Seals the original opening around the rear-wiper shaft.
- Catalog names: Rear wiper arm gasket, wiper motor seal and back-glass grommet.
- Quantity: One grommet per purchased unit.
Related rear-wiper seals can have different dimensions and seating profiles. Match the complete part number and factory glass/shaft arrangement. A vehicle family can include body styles without a rear wiper; those bodies do not use this application.
Common reasons to replace
Replace the grommet if it is hardened, cracked, split, distorted or no longer seals against the opening. Removal of the rear-wiper arm, motor or glass can expose deterioration or damage the old seal, making replacement appropriate during the repair.
Moisture around the rear-wiper shaft requires inspection of the grommet and the surrounding assembly. Check the washer plumbing, motor shaft, glass and nearby seals as well. A leaking washer hose, damaged glass or defective wiper motor requires separate correction.
Fitment
The table lists confirmed wagon and hatchback applications with the original rear-wiper arrangement. Body style and the exact seal assignment control fitment; match the installed part before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 Avant | 1998–2001 | 1.8L turbo four-cylinder or 2.8L V6 | B5 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi A4 Avant | 2002–2005 | 1.8L turbo four-cylinder or 3.0L V6 | B6 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. For 2005, B6 Type 8E chassis through VIN 8E-5-400000. |
| Audi A4 Avant | 2005–2008 | 2.0L turbo four-cylinder or 3.2L V6 | B7 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. For 2005, B7 Type 8E chassis from VIN 8E-5-400001. |
| Audi A4 Avant | 2009–2012 | 2.0L turbo four-cylinder | B8 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi S4 Avant | 2001–2002 | 2.7L twin-turbo V6 | B5 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi S4 Avant | 2004–2008 | 4.2L V8 | B6 / B7 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi A6 Avant | 1999–2001 | 2.8L V6 | C5 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi A6 Avant | 2002–2004 | 3.0L V6 | C5 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi S6 Avant | 2002–2003 | 4.2L V8 | C5 Avant; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi allroad | 2001–2005 | 2.7L twin-turbo V6 | C5 allroad wagon; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi allroad | 2004–2005 | 4.2L V8 | C5 allroad wagon; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Audi A4 allroad | 2013–2016 | 2.0L turbo four-cylinder | B8 allroad wagon; quattro; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Volkswagen Passat Wagon | 1998–2005 | Factory gasoline or diesel engine; rear-wiper seal assignment controls | B5 / B5.5 Wagon; FWD or 4Motion where offered; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Volkswagen Golf | 1999–2006 | 2.0L gasoline four-cylinder or 1.9L TDI where offered | Mk4 Type 1J Hatchback; original rear wiper; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Volkswagen GTI | 1999–2005 | Factory gasoline engine; rear-wiper seal assignment controls | Mk4 Type 1J Hatchback; excludes Mk5; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Volkswagen R32 | 2004 | 3.2L VR6 | Mk4 Type 1J Hatchback; 4Motion; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
| Volkswagen Jetta Wagon | 2001–2005 | Factory gasoline or diesel engine; rear-wiper seal assignment controls | Mk4 Type 1J Wagon; excludes Sedan; Rear-wiper body application; no transmission-specific restriction listed | Factory rear-wiper shaft opening assigned 8D9955758A only; match the original grommet and glass/shaft arrangement. Not a Sedan or Cabriolet application. One grommet supplied; no glass, wiper motor or arm included. |
Installation and service guidance
Follow the factory rear-wiper service procedure. Protect the rear glass and remove the arm or motor attachments using the specified tools and sequence. Do not lever against the glass or force a seized arm from the shaft.
Inspect and clean the opening and shaft area without damaging the glass or sealing surfaces. Fit the correct grommet evenly so its molded sealing profile seats fully. Use only installation aids permitted by the applicable factory procedure.
Reassemble the shaft and rear-wiper components in their original arrangement, set the arm to the specified parked position and tighten the separately specified hardware to the correct values. Check wiper movement and washer operation, and inspect the repaired opening for leakage.
This seal restores the assigned shaft-opening seal. It does not replace the separate washer nozzle, line seals, wiper mechanism or rear glass.
