OVERVIEW

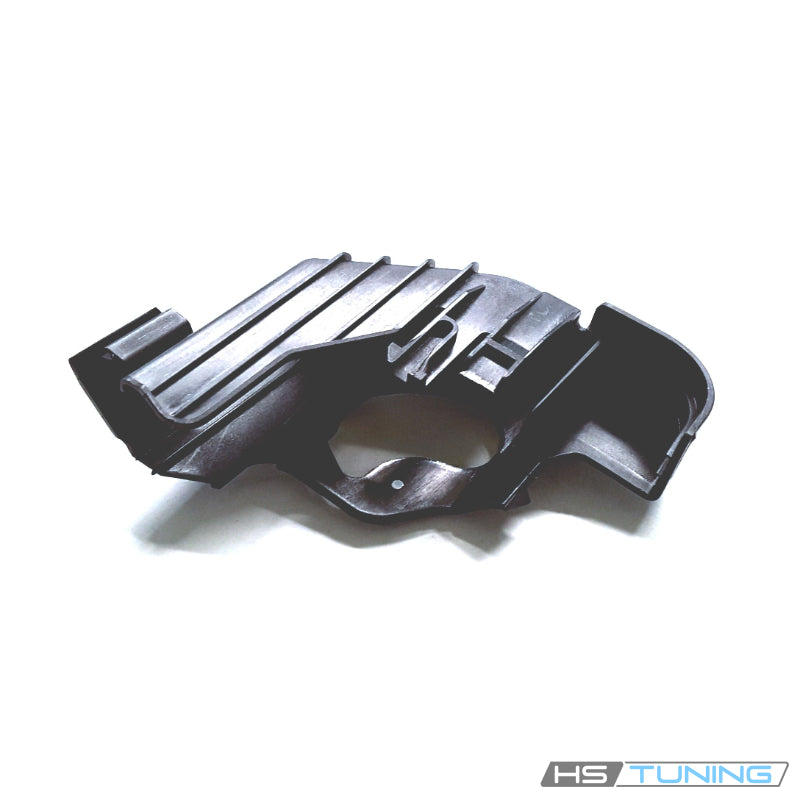

Genuine VW/Audi Trunk and Liftgate Latch Protective Cover
8K9-827-645 is the genuine molded protective cap used around the assigned trunk or liftgate latch arrangement. Its shaped opening and locating features match the original latch and surrounding trim so the cover can sit in its intended position. It is a compact cover component, separate from the latch mechanism.
One individual protective cover is supplied per purchased unit, as shown in the original archive photograph. The latch, electrical actuator, striker, separate trim panels and fastening hardware are sold separately.
Technical details
- OEM number: 8K9-827-645 / 8K9827645.
- Component: Protective cap for the original trunk/liftgate latch arrangement.
- Design: Molded cover with original locating and retention features.
- Quantity: One cover per purchased unit.
- Confirmed replaced reference: 8K9-827-645-01C where the factory catalog assigns the current cover.
Trunk and liftgate assemblies can contain more than one lock cover or cap. Compare the full part number, latch opening and surrounding trim before ordering. Other covers in the same assembly have separate numbers and mounting profiles.
Common reasons to replace
Replace the cover if it is missing, cracked, distorted or has broken locating or retaining features. Damage during latch service or trim removal can prevent the original cover from seating correctly. A loose cover can also move or rattle against the surrounding trim.
Inspect the cover attachment and mating trim before fitting a replacement. Broken receiving features or damaged surrounding panels require their own repair. A cover does not control the latch's locking or release function; a trunk that does not latch or release correctly needs diagnosis of the latch, actuator, striker and related wiring.
Fitment
The table identifies confirmed original trunk and liftgate applications. Body style and the installed latch arrangement determine the correct cover; match the original mounting and trim assignment.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2009–2013 | 2.0L turbo gasoline four-cylinder | 8P Sportback; front-wheel drive; 6-speed manual where offered or 6-speed S tronic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A3 | 2009–2013 | 2.0L turbo gasoline four-cylinder | 8P Sportback; quattro; 6-speed S tronic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A3 | 2009 | 3.2L VR6 gasoline | 8P Sportback; quattro; S tronic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A3 | 2010–2013 | 2.0L TDI diesel four-cylinder | 8P Sportback; front-wheel drive; S tronic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A4 Avant | 2009–2012 | 2.0L turbo gasoline four-cylinder | B8 Avant; quattro; Automatic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A4 allroad | 2013–2016 | 2.0L turbo gasoline four-cylinder | B8 allroad wagon; quattro; 8-speed automatic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A6 | 2012–2015 | 2.0L turbo gasoline four-cylinder | C7 Sedan; front-wheel drive; CVT | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A6 | 2016–2018 | 2.0L turbo gasoline four-cylinder | C7 Sedan; front-wheel drive; 7-speed S tronic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A6 | 2013–2018 | 2.0L turbo gasoline four-cylinder | C7 Sedan; quattro; 8-speed automatic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A6 | 2012–2018 | 3.0L supercharged gasoline V6 | C7 Sedan; quattro; 8-speed automatic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi A6 | 2014–2016 | 3.0L TDI diesel V6 | C7 Sedan; quattro; 8-speed automatic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
| Audi S6 | 2013–2018 | 4.0L twin-turbo gasoline V8 | C7 Sedan; quattro; 7-speed S tronic | Original trunk/liftgate latch protective cap assigned 8K9827645 only; match latch mounting and surrounding trim. Forward replacement for 8K9827645 01C where cataloged. One cover supplied; latch, actuator and hardware are separate. |
Installation and trim service guidance
Follow the factory trunk or liftgate trim procedure. Access the cover using the prescribed removal sequence and protect the surrounding trim and latch area while releasing its attachment.
Inspect the original mounting features and remove any broken cover material. Align the new cover with the latch opening and locating points before seating it. Do not force the cover over a misaligned or damaged latch assembly.
Restore any disturbed trim and verify that the cover remains securely seated without interfering with the latch, striker, wiring or normal closure. Check the trunk or liftgate release and closure function after the repair. Correct any separate latch or alignment issue through its applicable service procedure.
This cover restores the assigned protective trim component. It does not replace the latch mechanism or surrounding body panel.
