OVERVIEW

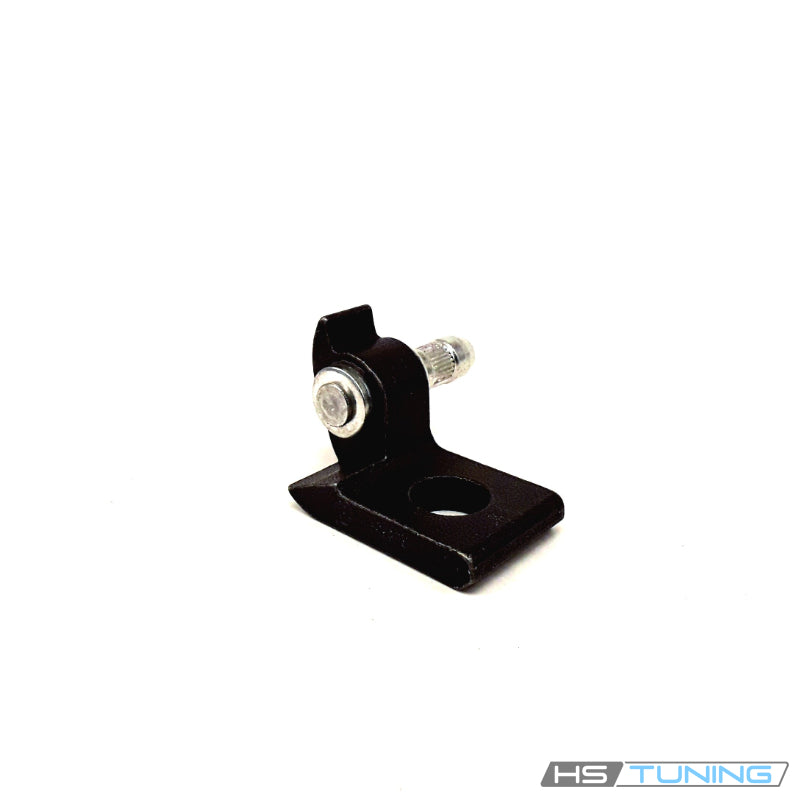

Genuine upper section for the specified left upper door hinge
8S0-833-407-A is the Genuine VW/Audi upper section of the left upper door hinge for the confirmed TT and TTS configurations below. It restores the assigned portion of the original hinge connection.
Door hinges are made up of distinct sections and use separate mounting hardware. This listing supplies the pictured upper section, so confirm the original part number and which section of the hinge requires replacement.
Technical details
- Complete factory number: 8S0-833-407-A.
- Factory specification: Left upper door hinge; upper section; 8S0-833-407-A.
- Design: formed hinge section with original pivot arrangement.
- Quantity supplied: one individual hinge section.
Side, hinge position and section are all part of the identification. The catalog specifies a production boundary through December 31, 2019. A matching model year alone is insufficient when a vehicle falls near that change.
Common reasons to replace
- The original hinge section is bent or damaged.
- Wear is traced to this portion of the hinge connection.
- The section has been damaged during door removal.
- The mounting area of the hinge section is distorted.
- The correct original section is needed during an approved door repair.
Inspect both hinge sections, the remaining hinge, door mounting points and body attachment area. Door sag or poor alignment can also result from damage elsewhere in the assembly. Establish the cause before replacing a single section.
Vehicle fitment
Match the left side, upper hinge and upper section, then check the production date. The fitment below is restricted to the original connection assigned this complete part number.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi TT | 2018, 2020 | 2.0L turbocharged gasoline I4 | Type 8S; quattro; Left door; upper hinge, upper section | Production through December 31, 2019; original hinge section assigned 8S0833407A. |
| Audi TTS | 2018 | 2.0L turbocharged gasoline I4 | Type 8S coupe; quattro; Left door; upper hinge, upper section | Production through December 31, 2019; original hinge section assigned 8S0833407A. |
Installation guidance
Support the door correctly and follow the factory removal, hinge replacement and alignment procedure. Preserve reference positions where instructed and use the specified mounting hardware and tightening method. Protect adjacent paint and trim during the work.
Check door gaps, smooth movement and latch engagement throughout the full travel. Restore the required hinge adjustment and any surface protection specified by the repair procedure.
Ordering information
One genuine hinge section is supplied as pictured. The matching hinge half, lower hinge, door check, mounting bolts and other door hardware are not included. Verify the original number, section and production date before ordering.
