OVERVIEW
Genuine VW/Audi sun visor retaining clip in silver, part number 8W0-857-562-A-1YE. This holder retains the visor's inboard rod at the headliner when the visor is in its normal position. It allows the rod to be released when the visor is moved toward the side window, then held again when returned to the front position.
Technical details
- Original part number: 8W0-857-562-A-1YE / 8W0857562A1YE.
- Interior color code: 1YE, cataloged as silver; match the existing headliner trim.
- Matching left or right retaining position, subject to the vehicle's bracket assignment.

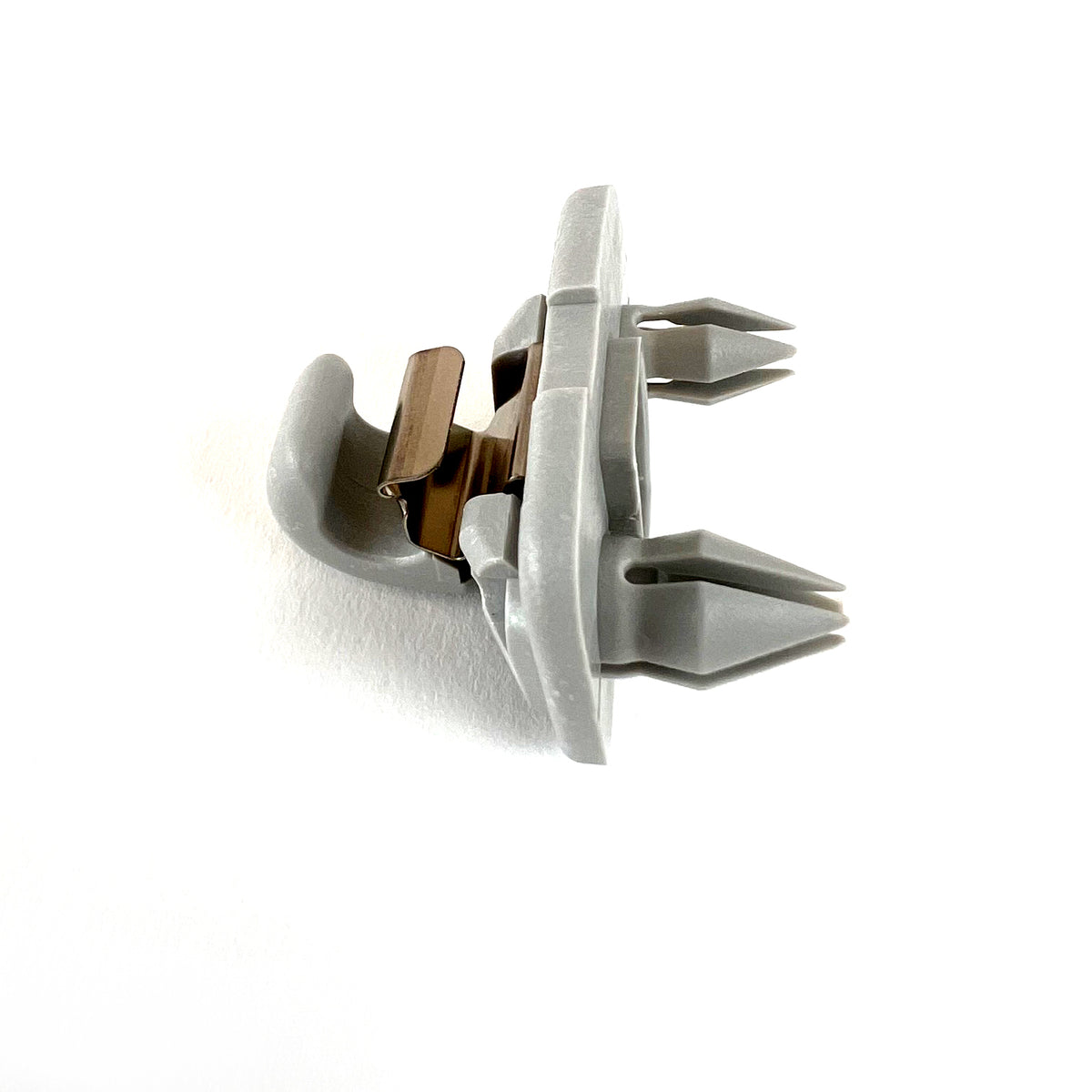

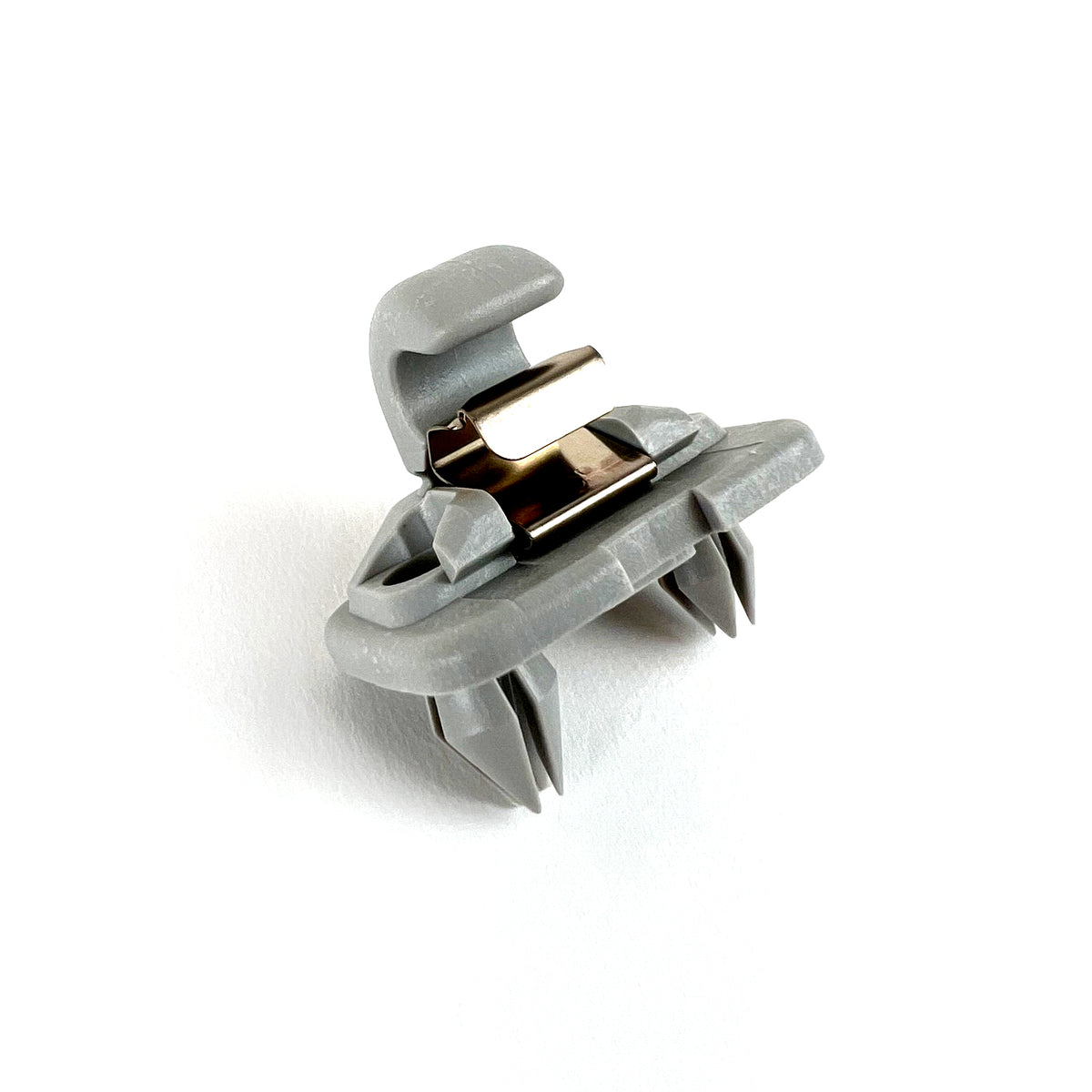

- Molded holder with metal retaining element and mounting features, visible in the original product photos.
- Supplied as one retaining clip. The sun visor, cover cap and any separately required mounting hardware are not included.
Common reasons to replace
Cracked holder plastic, damaged mounting features or a worn retaining element can prevent the visor rod from staying securely located. A holder that has broken during visor removal or interior trim service also needs replacement. Inspect the mounting area to establish why the original holder failed before fitting the new part.
A visor that shakes or releases too easily can have a damaged holder, but also check its rod, pivot and headliner attachment. This retaining clip does not repair a loose outboard visor pivot, damaged roof mounting point or internal visor mechanism. A missing decorative cover is a separate issue and may require only the matching cover cap.
Installation and service notes
Confirm the VIN-specific holder, interior color code and mounting design before ordering. Color codes are part of the identification: a mechanically similar clip in another finish may not match the surrounding trim. Verify any required cover and hardware separately.
Remove the old holder using the factory procedure, supporting the nearby headliner and releasing the retaining arrangement without tearing the trim. Align and fully seat the new holder in its intended mounting position. Check that the visor rod engages securely, releases normally and allows the visor to move through its full operating range without binding.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2006–2013 | 2.0L turbocharged gasoline | 8P hatchback, front-wheel drive; All offered transmissions; interior trim match required | Matching sun visor retainer, silver 1YE interior trim; left or right. Confirm bracket and headliner design by VIN. |
| Audi A3 | 2009–2013 | 2.0L turbocharged gasoline | 8P hatchback, quattro; All offered transmissions; interior trim match required | Matching sun visor retainer, silver 1YE interior trim; left or right. Confirm bracket and headliner design by VIN. |
| Audi A3 | 2010–2013 | 2.0L TDI diesel | 8P TDI hatchback, front-wheel drive; All offered transmissions; interior trim match required | Matching sun visor retainer, silver 1YE interior trim; left or right. Confirm bracket and headliner design by VIN. |
| Audi A3 | 2006–2009 | 3.2L gasoline VR6 | 8P hatchback, quattro; All offered transmissions; interior trim match required | Matching sun visor retainer, silver 1YE interior trim; left or right. Confirm bracket and headliner design by VIN. |
| Audi A4 | 2005–2008 | 2.0L turbocharged gasoline | B7 sedan; new-body 2005 configuration only; All offered transmissions; interior trim match required | Matching sun visor retainer, silver 1YE interior trim; left or right. Confirm bracket and headliner design by VIN. |
| Audi A4 quattro | 2005–2008 | 2.0L turbocharged gasoline or 3.2L gasoline V6, where offered | B7 sedan / Avant; new-body 2005 configuration only; All offered transmissions; interior trim match required | Matching sun visor retainer, silver 1YE interior trim; left or right. Confirm bracket and headliner design by VIN. |
| Audi RS4 | 2007–2008 | 4.2L gasoline V8 | B7 sedan; All offered transmissions; interior trim match required | Matching sun visor retainer, silver 1YE interior trim; left or right. Confirm bracket and headliner design by VIN. |
| Audi S4 | 2005; 2006; 2008 | 4.2L gasoline V8 | Avant wagon; silver 1YE headliner and original matching holder; Manual / automatic; verify interior trim | Matching silver sun visor holder at roof diagram position 5. Confirm VIN-specific holder and color; listed years are individually confirmed. |
Match the installed retainer and interior color by VIN. The 2005 A4 entries refer to the B7 new-body configuration. Other body styles and later platforms require separate parts verification.
