OVERVIEW

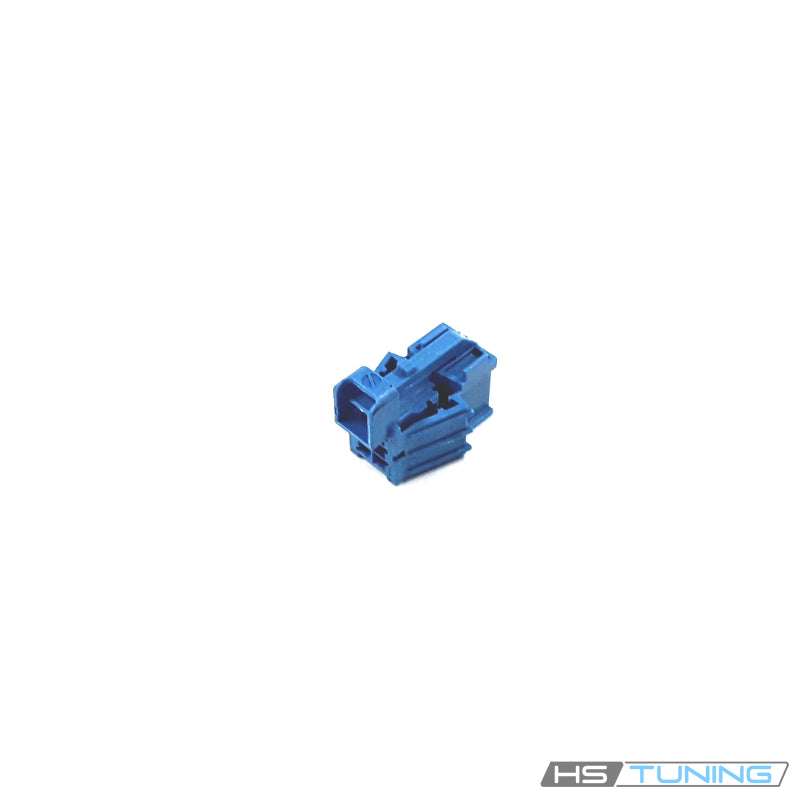

Genuine VW/Audi 8W0-971-636-D is an individual blue six-position flat-contact housing. It is the later replacement revision for the earlier 4D0-971-636-D housing. The Q5 application below uses this connector at the original dashboard switch connection associated with factory thermo-cupholder equipment. Other confirmed profiles use the same assigned housing in their original harness connections, including specified tail-lamp circuits; they do not share the Q5 cupholder function.
Technical details and what is included
- Factory part number: 8W0-971-636-D / 8W0971636D.
- Earlier verified revision: 4D0-971-636-D / 4D0971636D.
- Housing layout: six contact positions; blue.
- Quantity supplied: one individual bare housing.
- Terminals, repair wires, connected switch and cupholder assembly are separately specified.
Match the original housing revision, terminal system and mating profile before ordering. The six-position count does not establish universal fitment to other switch connections. The red housing separately catalogued alongside this application is a different part and must be checked independently.
Common reasons to replace
- The original housing body is cracked or broken.
- A damaged attachment feature prevents correct connection to the matching component.
- A damaged contact location prevents proper seating or retention of the specified terminal.
- The housing is damaged during a diagnosed dashboard-switch or harness repair.
Inspect the terminals, wire ends and connected component independently. A new housing does not repair damaged conductors, restore corroded contacts or correct an internal lamp, thermo-cupholder or switch fault. Diagnose the actual circuit before choosing the separately required repair components.
Vehicle fitment
Match the original blue six-position housing and terminal system at the specified connection. The thermo-cupholder restriction applies to the Q5 row. Other rows require their own original harness and equipment assignment; a common pin count alone does not establish compatibility.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q5 | 2012 | 3.2L FSI gasoline V6 | 8R SUV; quattro; original thermo-cupholder equipment; Original factory automatic transmission; original switch connection determines fitment | Original blue six-position dashboard switch connection for thermo-cupholder equipment PR KT1. Confirm original 4D0971636D housing and mating profile; 8W0971636D is the later replacement revision. Does not establish fitment to the distinct red housing or ordinary non-thermo cupholder wiring. One bare housing supplied; contacts, wires, switch and cupholder are separate. |
| Volkswagen Taos | 2022–2024 | 1.5L turbo gasoline inline-four | SUV | Original six-position connection assigned 8W0971636D; match fitted housing and terminal system. Blue six-position bare housing only; contacts and repair wires are separate. Different suffix/keying variants are not interchangeable without exact confirmation. |
| Volkswagen Tiguan | 2018–2024 | 2.0L turbo gasoline inline-four | MQB SUV; excludes Tiguan Limited | Original six-position connection assigned 8W0971636D; match fitted housing and terminal system. Blue six-position bare housing only; contacts and repair wires are separate. Different suffix/keying variants are not interchangeable without exact confirmation. |
| Volkswagen CC | 2012–2017 | 2.0L turbo gasoline inline-four | Sedan | Original six-position connection assigned 8W0971636D; match fitted housing and terminal system. Blue six-position bare housing only; contacts and repair wires are separate. Different suffix/keying variants are not interchangeable without exact confirmation. |
| Volkswagen Golf Alltrack | 2019 | 1.8L turbo gasoline inline-four | Wagon; 4Motion | Original six-position connection assigned 8W0971636D; match fitted housing and terminal system. Blue six-position bare housing only; contacts and repair wires are separate. Different suffix/keying variants are not interchangeable without exact confirmation. |
| Volkswagen Beetle | 2019 | 2.0L turbo gasoline inline-four | Hatchback | Original six-position connection assigned 8W0971636D; hatchback only for this profile. Blue six-position bare housing only; contacts and repair wires are separate. Different suffix/keying variants are not interchangeable without exact confirmation. |
| Audi A4 | 2024 | 2.0L turbo gasoline inline-four | B9 quattro sedan | Production after March 15, 2021; original tail-lamp connection assigned 8W0971636D. Check original lamp and housing. Blue six-position bare housing only; contacts and repair wires are separate. Different suffix/keying variants are not interchangeable without exact confirmation. |
| Audi S4 | 2021–2024 | 3.0L turbo gasoline V6 | B9 sedan; quattro | Production after March 15, 2021; original tail-lamp connection assigned 8W0971636D. Earlier builds require a separate check. Blue six-position bare housing only; contacts and repair wires are separate. Different suffix/keying variants are not interchangeable without exact confirmation. |
Installation and service guidance
Follow the factory electrical isolation, trim-access and connector-repair procedure for the affected switch circuit. Record the original contact positions and connector orientation before releasing the housing. Use the prescribed terminal tool rather than pulling locked terminals out by their wires.
Inspect the contact seating and renew separately damaged terminals or repair wires according to the factory instructions. Fit only the specified terminal system in the replacement housing and verify secure attachment at the matching original switch connection.
Restore the original wiring route without strain or trapped wiring when reinstalling trim. Complete the prescribed circuit checks and verify the applicable switch and thermo-cupholder functions after reassembly. Refer to the vehicle wiring diagram for the original terminal assignment; the housing alone does not supply a pinout conversion or add thermo-cupholder equipment to the vehicle.
