OVERVIEW
Genuine VW/Audi 8X0-827-654 is an individual plastic round-head retaining screw for the assigned original bumper-cover attachment point. It replaces the specified small fastener during cover or trim service on the confirmed configurations below.
Technical details and what is included
- Factory number: 8X0-827-654 / 8X0827654.
- Component: round-head plastic retaining screw.
- Original nominal designation: M6 × 10.
- Quantity supplied: one individual screw.

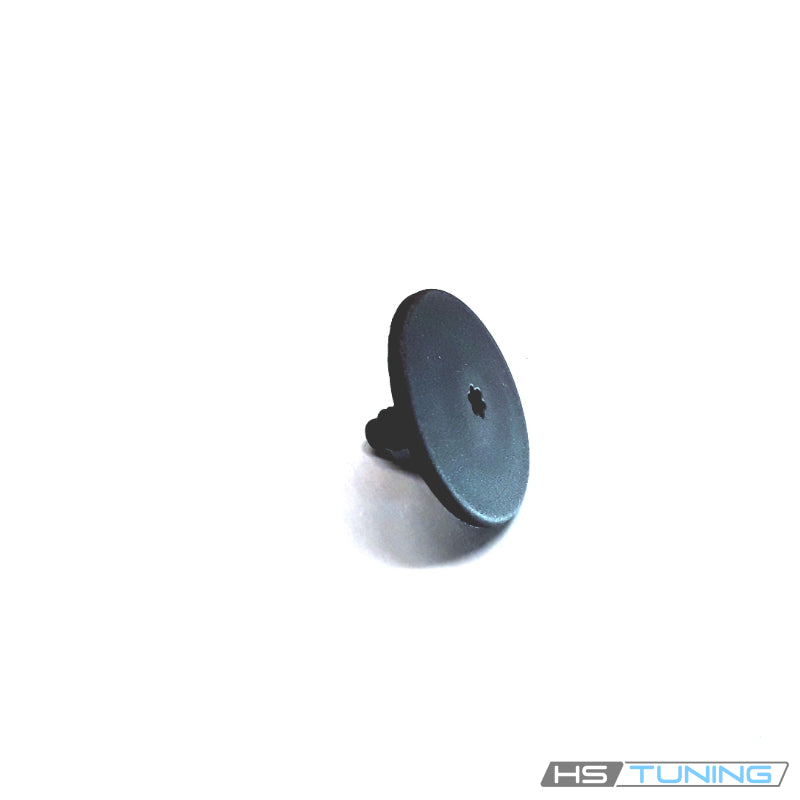

- The archive photo shows the broad round head, recessed drive and projecting fastening stem.
- Original parts descriptions also use the terms plug screw or bumper-cover retainer screw.
The nominal specification describes the fastener, not shipping dimensions. Select it by the original attachment point and bumper arrangement rather than substituting a conventional metal bolt with the same nominal diameter. Other nearby cover screws, rivets, spacers and retaining nuts are separate assignments.
This is a small replacement fastener. It does not supply a bumper cover, body panel, impact absorber, support rail or a complete installation-hardware set.
Common reasons to replace
- The original retaining screw is missing after bumper-cover service.
- The head or drive recess has been damaged during removal.
- The fastening stem is broken or no longer secures the assigned connection correctly.
- The correct factory screw is needed to restore the original attachment arrangement.
Inspect the receiving retainer and cover attachment point before fitting a replacement. A cracked mounting tab, damaged receiving nut or distorted cover may need separate repair. Installing this screw alone does not repair a damaged bumper assembly or establish the cause of a loose panel.
Vehicle fitment
The table identifies confirmed original screw assignments. SUV and Sportback body styles, bumper equipment and attachment points must be matched individually. A matching model year does not establish compatibility with an aftermarket bumper or a different fastener location.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q5 | 2018–2020 | 2.0L turbocharged gasoline inline-four | FY SUV; quattro; without Sportback; 7-speed S tronic DSG | Original assigned upper bumper-cover screw point; match bumper assembly and original 8X0827654 fastener. Body and bumper variant determine the specific attachment point. |
| Audi SQ5 | 2018–2020 | 3.0L turbocharged gasoline V6 | FY SUV; quattro; without Sportback; 8-speed Tiptronic automatic | Assigned bumper-cover retaining screw; original genuine description explicitly identifies 2018–2020 SQ5. Confirm the exact original point and bumper equipment. |
| Audi Q5 Sportback | 2021 | 2.0L turbocharged gasoline inline-four with mild-hybrid system | FY Sportback; quattro; original rear bumper assembly; 7-speed S tronic DSG | Assigned original rear bumper-cover retainer screw 8X0827654. The nearby N91057001 screw is a different part with separate build-date notes; do not interchange them. |
Installation and service guidance
Follow the factory removal and refitting procedure for the exact cover. Support and align the cover before installing the screw so that the fastener is not used to pull a misaligned attachment point into place. Remove broken pieces and inspect the receiving connection.
Use the correct tool and the prescribed fastening method for the plastic screw. Avoid overtightening or substituting a metal screw that can damage the receiving arrangement. Confirm secure seating of the screw and the surrounding trim after reassembly.
Order the quantity required by the original diagram and the work being performed. This listing supplies one retaining screw; receiving retainers, other screws, bumper components and trim pieces are separate.
