APR ECU Upgrade - 4.0T EA824 V8 (A8)

APR ECU Upgrade - 4.0T EA824 V8 (A8)

$898.95 USD
$898.95 USD
Sale Sold out

View full details

OVERVIEW

APR's ECU Upgrades are the best dollar-per-horsepower modification one can make to improve engine performance. The upgrades dramatically increase horsepower and torque, making for an exceptionally quicker and more exciting vehicle. This is made possible through APR's optimization of the factory engine management system to take full advantage of the engine's capabilities, without needing any end user adjustment. The ECU Upgrades are available with various features and supported octane levels and each stage is compatible with most typical bolt-on modifications. The software is installed to the vehicle's factory ECU through the OBD-II port, resulting in a clean and headache-free install. Furthermore, for those looking for tuning with a limited powertrain warranty, APR Plus has you covered!


Features:

  • Horsepower - More horsepower throughout the whole rpm band
  • Torque - More torque throughout the whole rpm band
  • Warranty - APR Plus is available, providing a factory term limit matching limited powertrain warranty
  • Program Switching - Change programs and access features with your cruise control stalk
  • APR Mobile - Change programs and access features with your smart device
  • Valet Mode - Neuters the vehicle, giving the driver minimal output
  • Anti-Theft - Password protects driving the vehicle
  • Security Lockout - Password protects program switching
  • Fault Code Erase - Resets ECU fault codes and adaption on the fly
  • COD Delete - Optionally disable Cylinder On Demand to keep the engine running smoothly in full cylinder mode all the time
  • Fuel Grades - Multiple octanes from which to choose
  • Acceleration - Accelerate faster with more power and reduced throttle lag
  • Brake Boosting - Left foot braking or brake boosting added
  • Speed Limiter - Go as fast as you want with the speed limiter out of the way
  • Economy - While cruising, or driving normally, your fuel economy may benefit from our optimized calibration
  • Motorsport Limiter - With the soft limiter removed, you‚Äôll get full power right up to the hard, ‚Äúbap bap bap‚Äù redline fuel cut
  • Flash Counter - Flash counter does not increase with each flash
  • Direct Port Programming - Clean and easy install through the OBD II port without removing the ECU
  • Free Updates - Get free updates for life
  • Guarantee - 30 day money back guarantee



The APR Stage 1 ECU Upgrade is the first step towards tuning your engine. It produces up to 530-578 HP and 586-679 FT-LBS of torque. Adding more bolt-on hardware modifications will optimize power output.

Stage 1 is available for 91 AKI, 93 AKI, and 100 AKI in North America, and 95 RON, 98 RON, and 104 AKI in the Rest of the World.

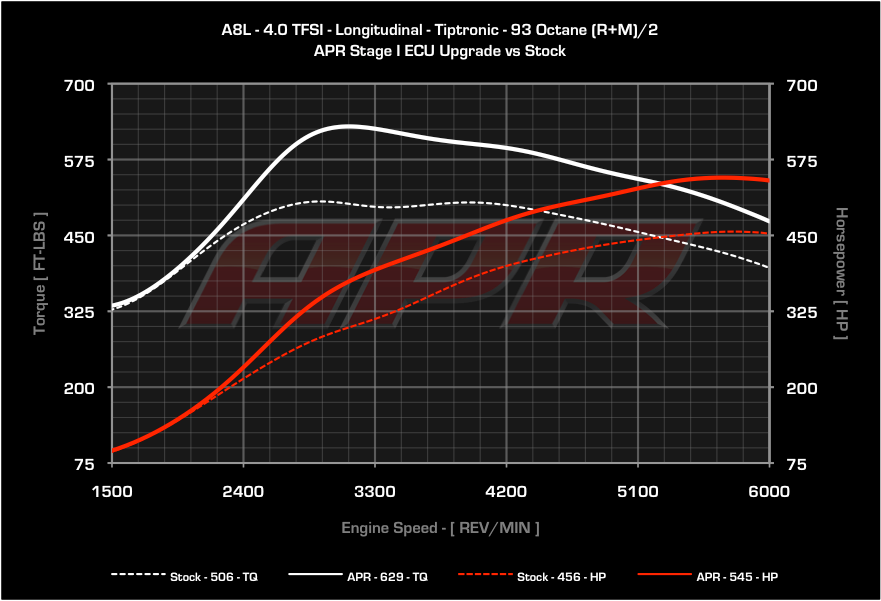

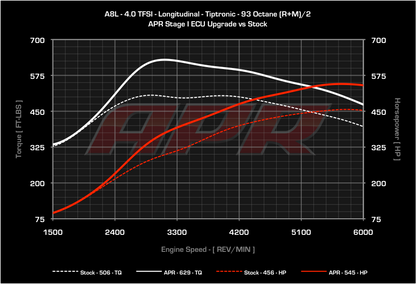

APR Calibration Report

Stage HP TQ Max Gain Max Gain
Stock As Reported by VAG  435 PS  444 FT-LBS
Stock As Measured by APR 456 HP  506 FT-LBS
APR Plus
91 AKI 530 HP 586 FT-LBS +75 HP +88 FT-LBS
Stage 1
91 AKI / 95 RON 530 HP 586 FT-LBS +75 HP +88 FT-LBS
93 AKI / 95 RON 545 HP 629 FT-LBS +90 HP +129 FT-LBS
100 AKI / 104 RON 578 HP 679 FT-LBS +127 HP +175 FT-LBS



Dyno testing is a great way to gauge power increases over the entire rev range but may not translate to real world performance. Through GPS based acceleration testing, APR’s Engineers were able to verify increases made on the dyno translated to a faster and quicker vehicle on the street.

Stage 0-60
MPH		 0-62
MPH		 0-100
KPH		 0-100
MPH		 60-120
MPH		 62-124
MPH		 100-200
KPH		 60-130
MPH
 30-130
MPH
Stock 4.013 4.214 4.228 9.749 10.389 11.361 11.432 14.409 16.647
APR STG 1 93 AKI 3.535 3.695 3.707 7.976 7.974 8.661 8.710 10.132 12.025
APR STG 1 100 AKI 3.378 3.556 3.568 7.590 7.591 8.195 8.235 9.669 11.491



Program switching allows you to access additional program modes and features from your cruise control stalk or your smart device with APR Mobile. Depending on the ECU, available memory, and selected options, up to four program modes and all features, can be installed.

  • Stock Mode - Go back to the stock power levels.
  • Performance Modes - Switch between octanes and program modes.
  • Valet Mode - Neuters the vehicle, giving the driver minimal output.
  • Security Lockout - Password protects program switching.
  • Anti-Theft - Password protects driving the vehicle.
  • Fault Code Erase - Resets ECU fault codes and adaptation.



Tech Resources:


Important fuel quality information

Find your boxcode and revision

Program switching guide

Only use fuel equal to or higher than specified. Never use a lower octane fuel. Always follow our fuel guide, especially with race fuel and Ethanol, where available. Dynos are for reference only. Results will vary. Contributing factors include the vehicle condition, vehicle setup, dyno type, dyno setup, environmental factors, fuel quality, and more. When describing fuels, the North American Region (NAR) uses the Anti-Knock Index (AKI), (RON+MON)/2, or (R+M)/2. The Rest of the World (ROW) uses RON. RON is Research Octane Number and MON is Motor Octane Number. Please Note: Each vehicle's year, make, and model may have multiple factory engine or transmission controller software part numbers, known as box codes, each with unique revisions. Manufacturers periodically release software updates that alter this information, which can only be determined by scanning the controller and is not publicly provided. Due to the variety of codes, some stages, octane levels, features, or options may not be available for specific codes. Therefore, our website provides a general guide based on general info such as Year, Make, and Model. Our system allows you to request unavailable software, and we offer a 30-day money-back guarantee if you're not satisfied.
