OVERVIEW
Please Note: This system is designed for use only where required by an APR turbocharger system upgrade with matching software.
Fits Audi A3 17-19, A3 Quattro 15-20, Q3 21-24, S3 15-20, TT Quattro 15-23, TTS Quattro 16-23; VW Arteon 19-21, Golf R 15-19, GTI 15-21, Jetta 19-24

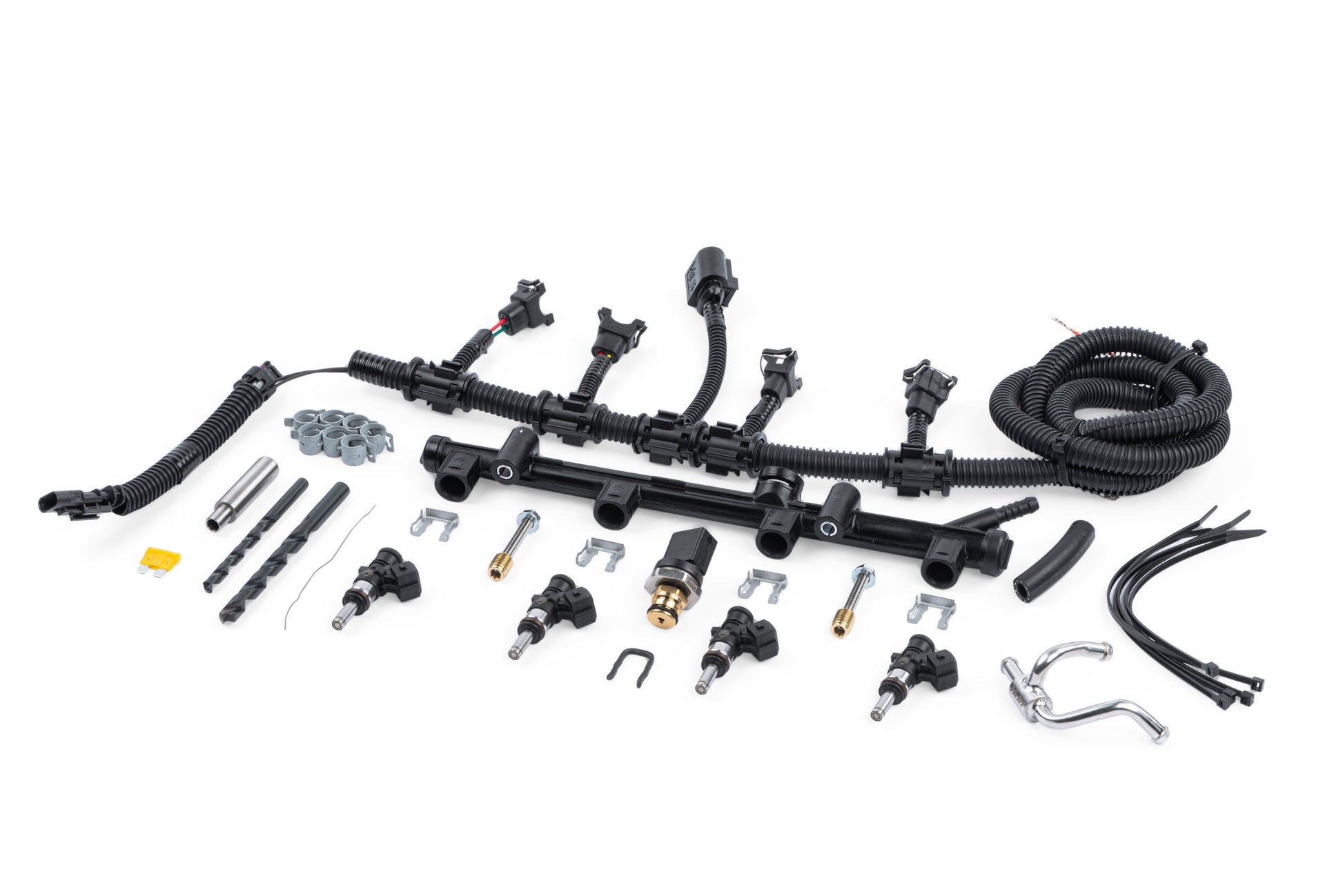

The APR Multi Port Injection (MPI) System includes four 980cc ethanol-compatible Bosch Motorsport MPI injectors, harness, fuel rail, rail sensors, distribution block, and everything needed install the system to the factory intake manifold. This system is designed for use only where required by an APR turbocharger system upgrade with matching software.
Features

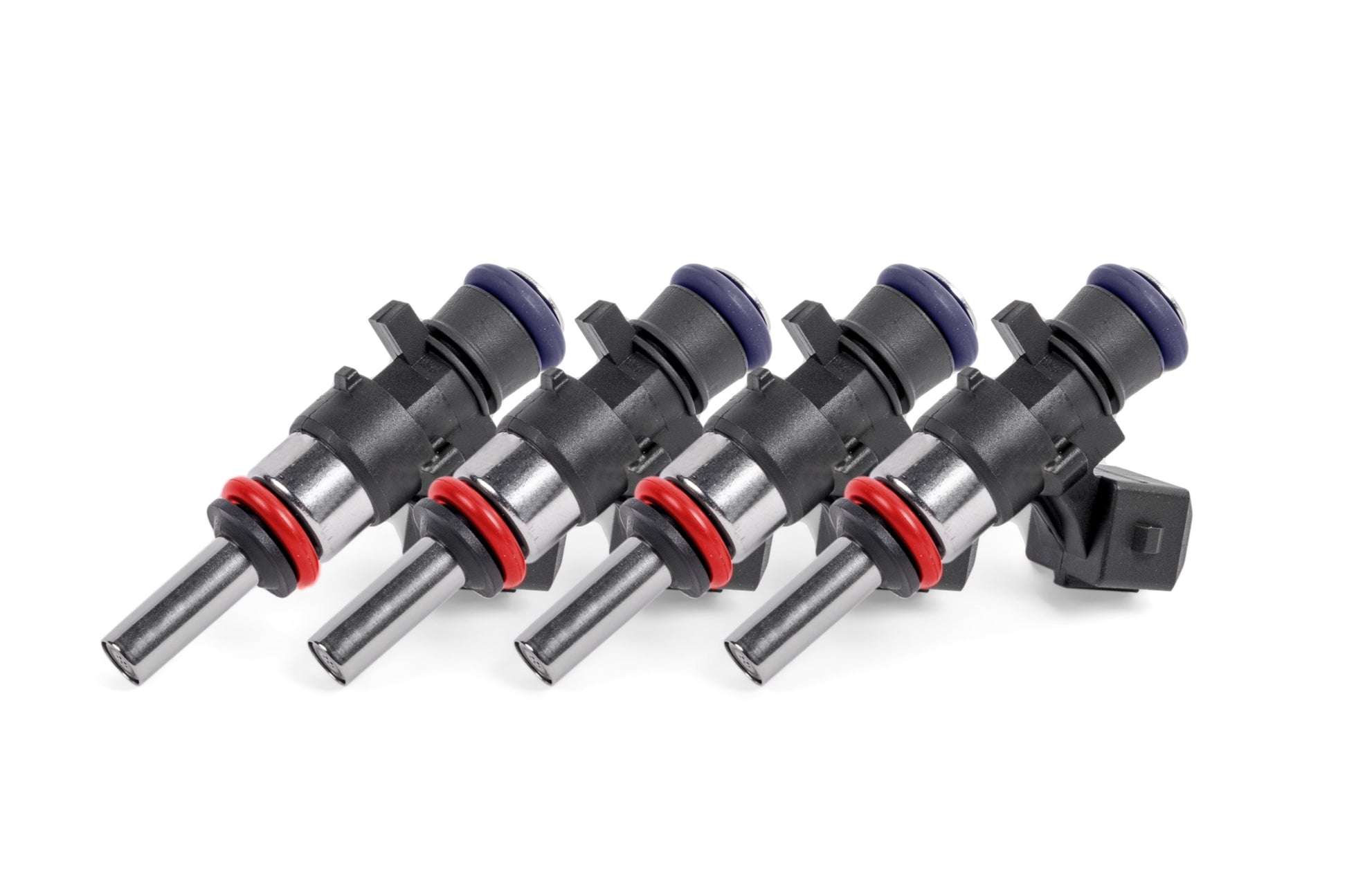

- Bosch EV 14 CKxT MPI injector (0280 158 040)
- APR Bosch Jetronic to OEM harness
- Supports up to 8 bar of use in motorsport configurations
- E85 and M100 compatible
- 30° single cone spray angle with 0° bent angle and 0° gamma angle
- 33.6mm compact body
- 24mm extended tip nozzle
- Top-feed injector
- 12 ohm coil resistance

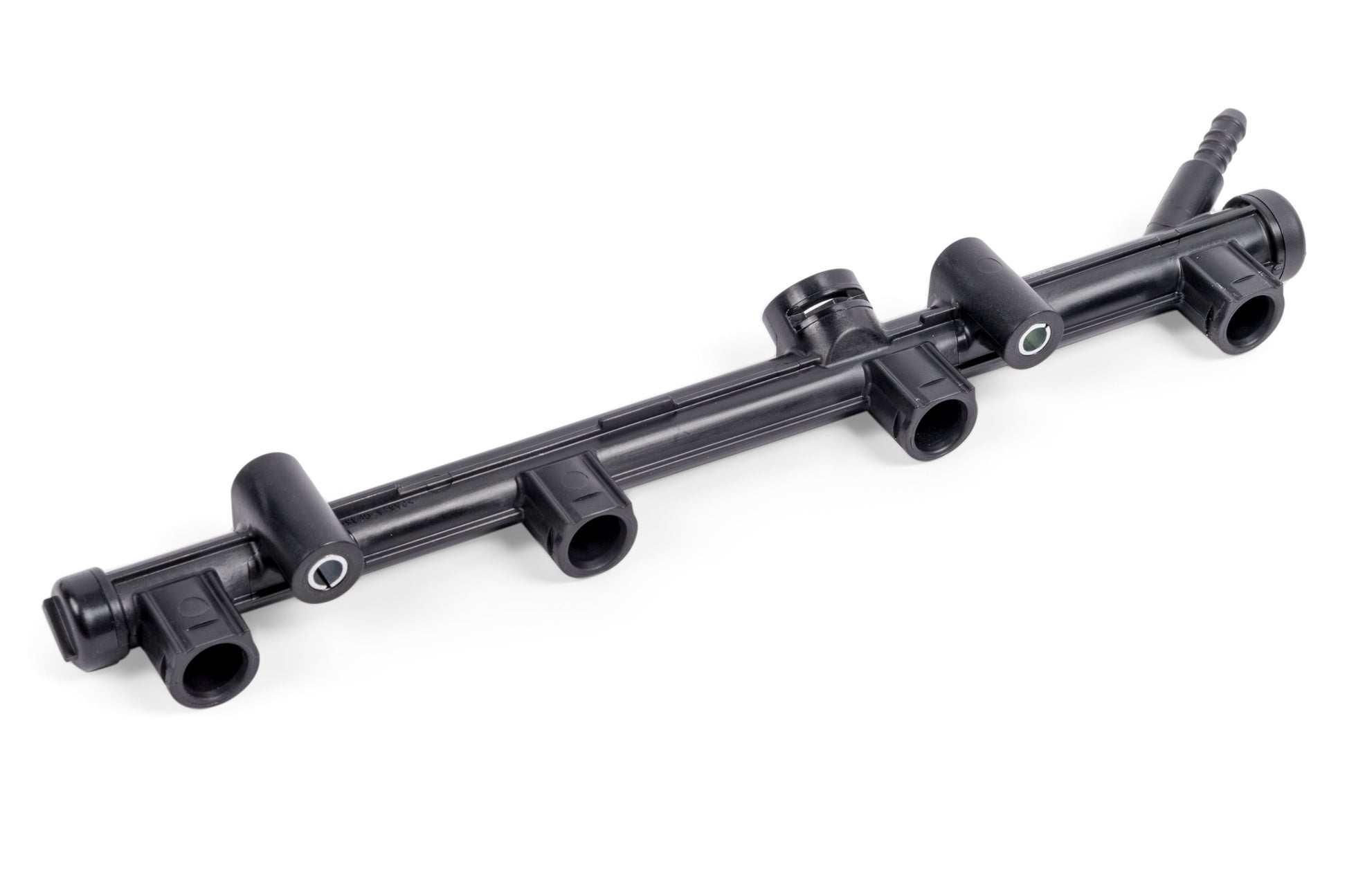

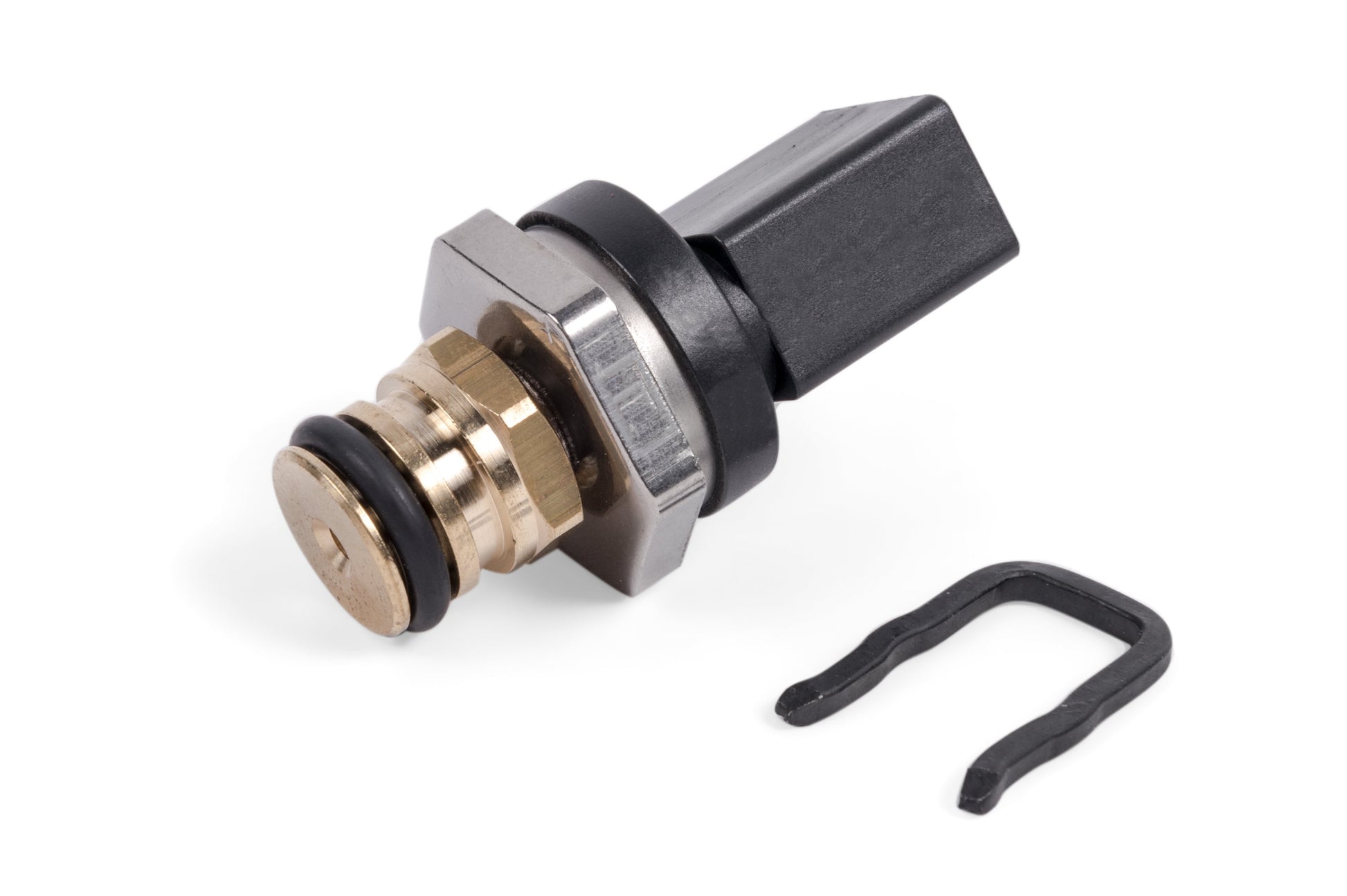

- OEM Fuel Rail, Rail Sensor, and mounting kit included

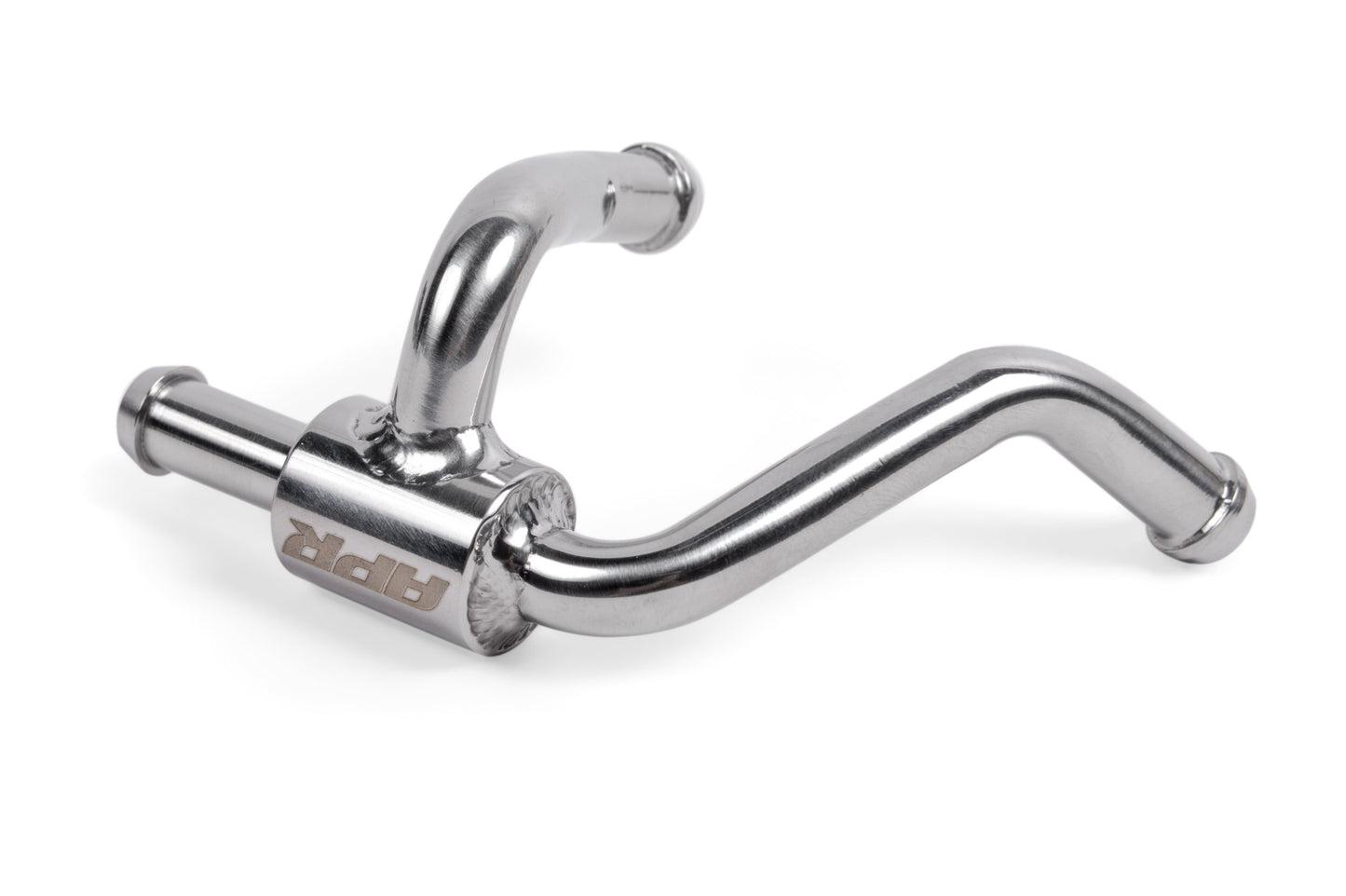

- APR fuel distribution block included
- ECU software required for use
